915040 (ZT 2252) - Gravely 52" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Mower Deck Lift Parts Diagram

52" Zero-Turn Mower, 22hp Briggs & Stratton

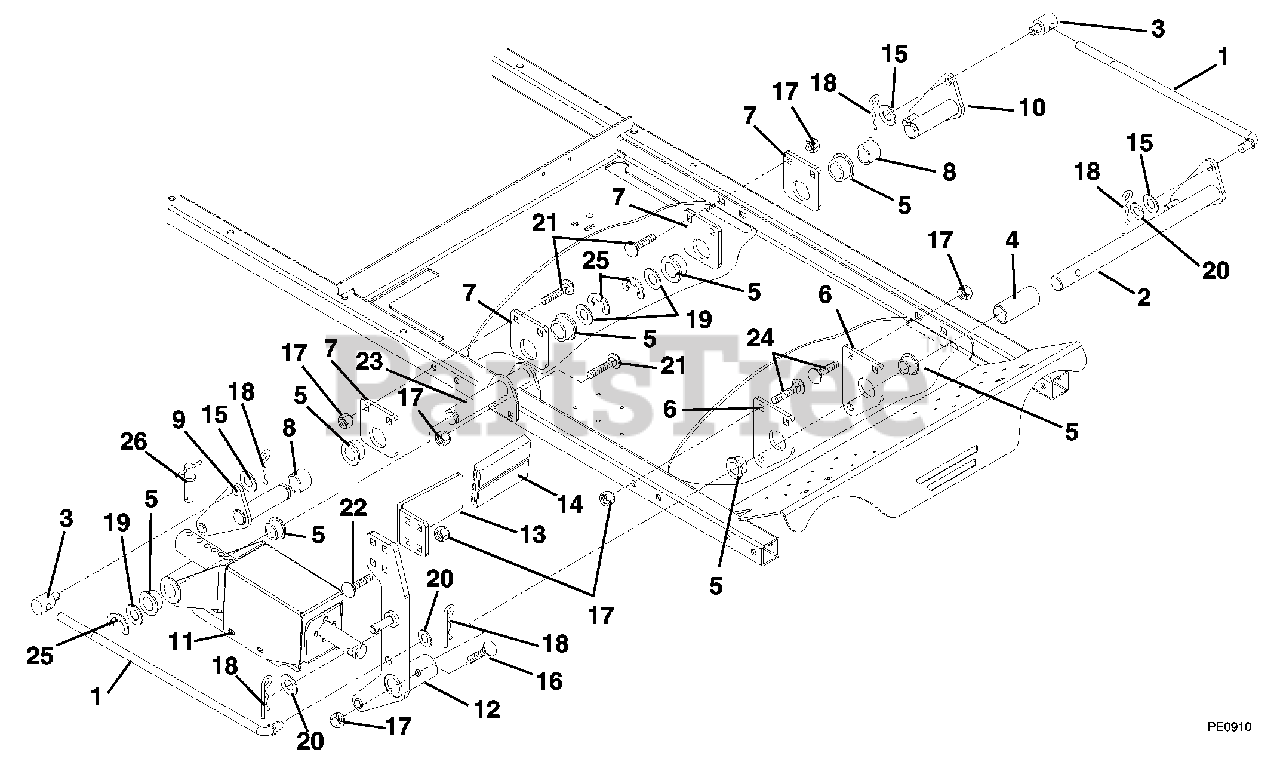

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 01592000

LINKAGE, LIFT
(Superseded to 00270400)

$40.99

$

In Stock, only 1 left!

0

2

Gravely 01592100

WELDMENT, LIFT, FRONT

$

$

Not available

3

Gravely 01590400

TRUNNION-.50

$59.99

$

In Stock, only 3 left!

0

4

Gravely 01592200

BUSHING, FRONT

$

$

Not available

5

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

6

Gravely 01592351

BRACKET, MOUNT, FRONT
(Superseded to 00182851)

$

$

Not available

7

Gravely 01591951

BRACKET, MOUNT, REAR
(Superseded to 00175851)

$19.99

$

Usually ships in 4-12 days

0

8

Gravely 01591800

BSHG-SPCR 1.032X1.250X.88 PM

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 01591700

WELDMENT, LIFT, REAR - RH

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 01591600

WELDMENT, LIFT, REAR - LH

$52.99

$

Usually ships in 4-12 days

0

11

Gravely 51509600

ZOOM LIFT ASSEMBLY

$

$

Not available

12

Gravely 01600200

WELDMENT, LIFT PEDAL MOUNT

$

$

Not available

13

Gravely 01600351

PEDAL, FOOT LIFT

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 041944

GRIP, PEDAL 1.50 X 3.00
(Superseded to 00270100)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06447600

WSHR-FL-STL.511X1.441X.125 BZ
(Superseded to 06436400)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

In Stock, only 2 left!

0

20

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06226900

BLT-RDHDSQNK .38-16X2.50 G5BZ
(Superseded to 06224400)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 01592500

WELDMENT, PIVOT MOUNT

$

$

Not available

24

Gravely 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

$4.99

$

In Stock, Qty 11

0

25

Gravely 05716800

RG-RTNG .822X1.500X.050 TYP E

$

$

Not available

26

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 18

0
