915040 (ZT 2252) - Gravely 52" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Seat And Support Parts Diagram

52" Zero-Turn Mower, 22hp Briggs & Stratton

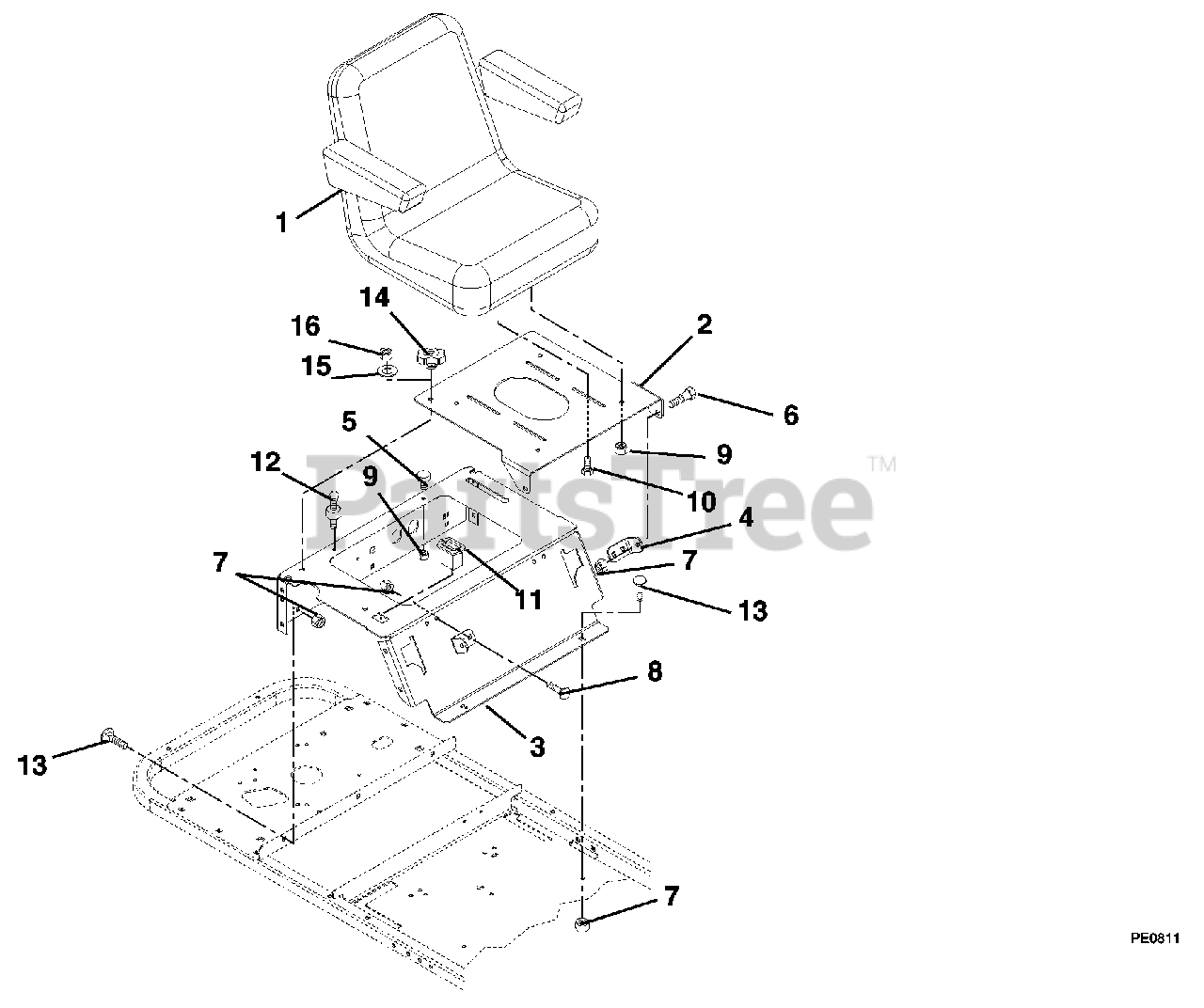

Seat And Support Parts Diagram

  • Title

1

Gravely 01598400

SEAT, TS2800 MICHIGAN W/ARM.
(Superseded to 00367800)

Note: (036, 038, 040)

$

$

Not available

Gravely 01599200

SEAT, TS2500 MICHIGAN W/ARM.
(Superseded to 00366300)

Note: (034)

$

$

Not available

2

Gravely 01578651

SEAT PLATE

$

$

Not available

3

Gravely 01578451

SEAT SUPPORT

$131.99

$

Usually ships in 4-12 days

0

4

Gravely 01578551

BKT-SEAT PLATE

$41.99

$

Usually ships in 4-12 days

0

5

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

6

Gravely 07056700

BOLT-SHLDR .375-16X.150

$5.49

$

In Stock, only 2 left!

0

7

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (036, 038, 040)

$2.49

$

In Stock, Qty 20+

0

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (034)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 00591400

BLT-SERHFWH .31-18 X 1 YWZC

Note: (034)

$

$

Not available

11

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$66.99

$

Usually ships in 4-12 days

0

12

Gravely 07534900

BUMPER, STUD

$

$

Not available

13

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$4.99

$

In Stock, only 2 left!

0

16

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0
