915040 (ZT 2252) - Gravely 52" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

52" Zero-Turn Mower, 22hp Briggs & Stratton

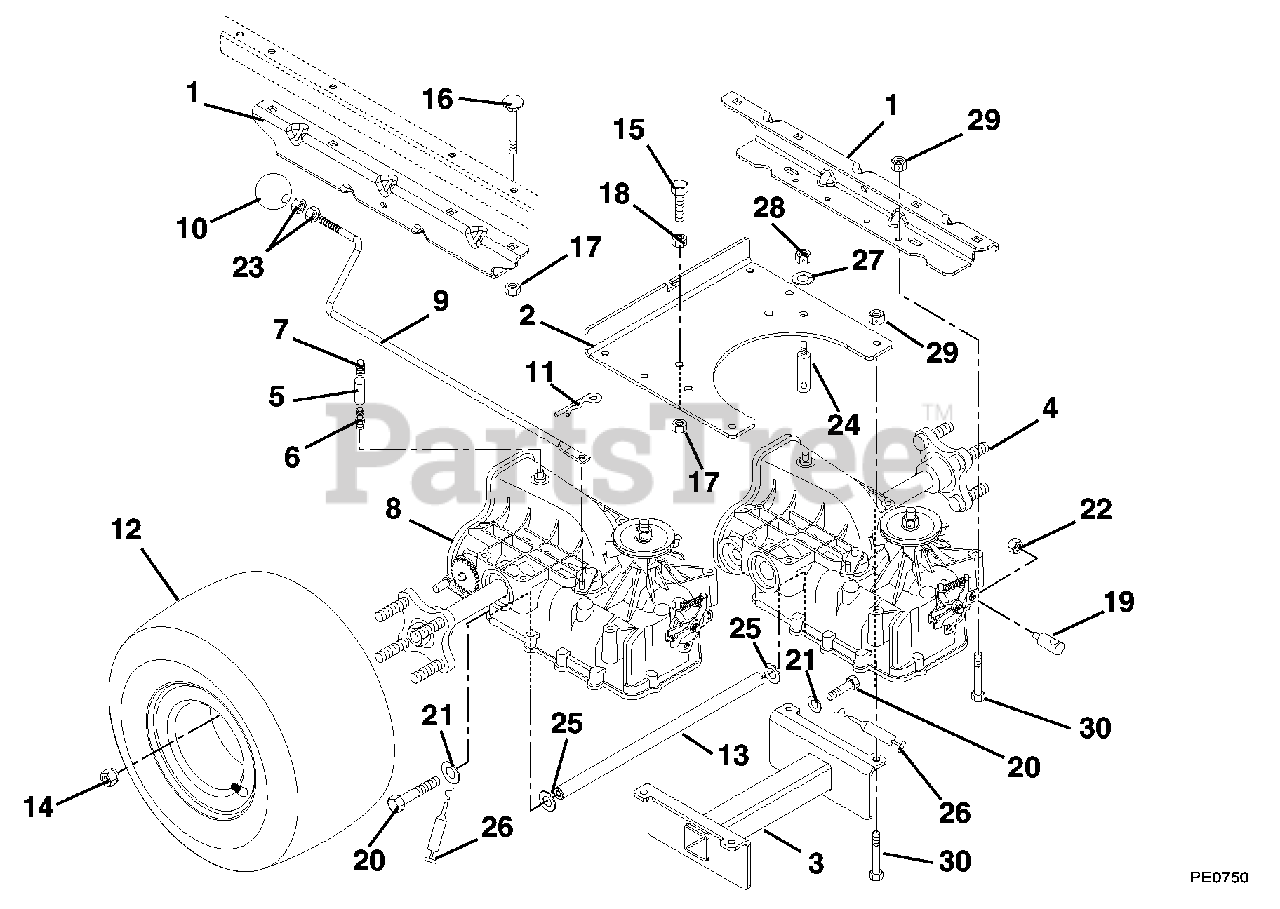

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 01577951

BKT-TRANS AXLE

$31.99

$

Usually ships in 4-12 days

0

2

Gravely 01578051

BKT-TRANS AXLE SUPPORT

$

$

Not available

3

Gravely 01578151

WLDMT-TRANS AXLE BRACE

$

$

Not available

4

Gravely 01588900

IZT-LH

$

$

Not available

5

Gravely 01543100

HOSE - VENT

$9.99

$

In Stock, only 2 left!

0

6

Gravely 07026300

FTG-STR .50 O-RING

$26.99

$

In Stock, only 2 left!

0

7

Gravely 07026400

CAP-VENT .50

$17.99

$

In Stock, only 2 left!

0

8

Gravely 01589000

IZT-RH

$

$

Not available

9

Gravely 01581600

ROD-DUMP IZT

$

$

Not available

10

Gravely 07515900

KNOB, BALL 5/16-18 X 1.5

$22.99

$

In Stock, only 1 left!

0

11

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 01587800

ASSY-TIRE 9.5X18-2PLY
(Superseded to 07100233)

Note: (036, 038, 040)

$174.99

$

In Stock, only 2 left!

0

Gravely 01588700

ASSY-TIRE 8.5X18 2PLY
(Superseded to 07100234)

Note: (034)

$139.99

$

Usually ships in 4-12 days

0

13

Gravely 01578200

ROD-AXLE BRACE

$

$

Not available

14

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 14

0

16

Gravely 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

$4.99

$

In Stock, Qty 11

0

17

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 01568600

ROD PIVOT YWZC

$52.99

$

Usually ships in 4-12 days

0

20

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

24

Gravely 03622900

SHOULDER STUD

$35.99

$

In Stock, only 2 left!

0

25

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

26

Gravely 00929200

ADHSV SEALANT (BLUE) 250 ML

$

$

Not available

27

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

30

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0
