915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Fuel Tank Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

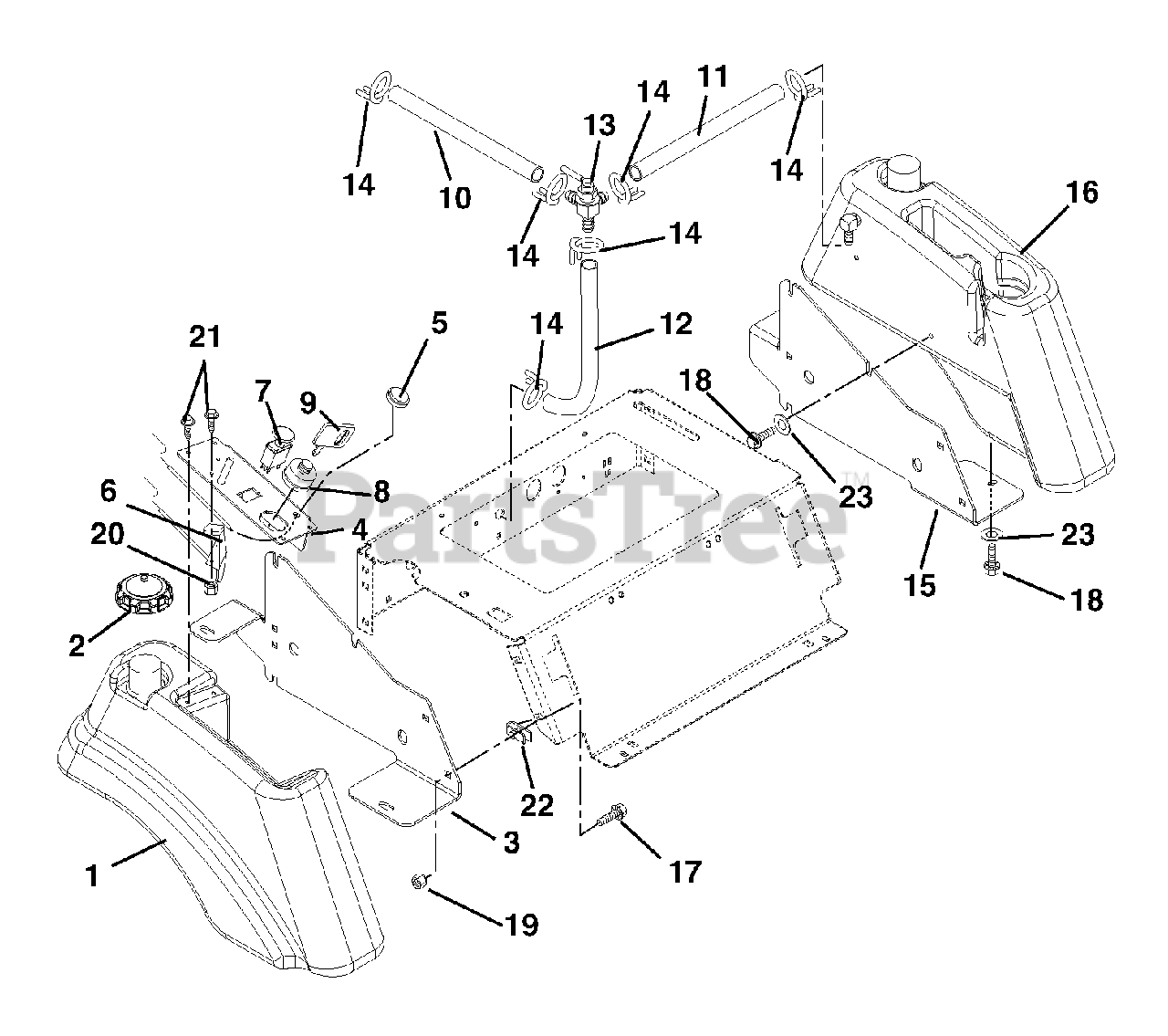

Fuel Tank Parts Diagram

  • Title

1

Gravely 01575800

Tank, Fuel - Right Hand

$

$

Not available

NS

Gravely 07511400

Fuel Fitting Bushing

$3.49

$

In Stock, Qty 20+

0

2

Gravely 01538400

Fuel Cap

$14.99

$

In Stock, Qty 15

0

3

Gravely 01578751

Seat Plate/Tank Support Right Hand

$

$

Not available

4

Gravely 01579451

Bracket, Control

$

$

Not available

5

Gravely 00529900

Hole Plug, Plastic .44 Hole

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 01588600

Throttle Cable

$64.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

Switch, Clutch

$23.99

$

In Stock, Qty 19

0

8

Gravely 01588300

Key Switch

$28.99

$

In Stock, Qty 11

0

9

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 16

0

10

Gravely 021134

Gas Line, Bulk .25 I.D. x 38 Long
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 021134

Gas Line, Bulk .25 I.D. x 26.5 Long
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 021134

Gas Line, Bulk .25 I.D. x 14 Long
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09258200

Valve, Fuel

$45.99

$

In Stock, Qty 9

0

14

Gravely 06939100

Clamp, Hose Wire .490/.510 x .092

$3.99

$

In Stock, Qty 20+

0

15

Gravely 01578851

Seat Plate Left Hand

$

$

Not available

16

Gravely 01575700

Tank, Fuel - Left Hand

$

$

Not available

17

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

18

Gravely 07049600

Bolt, Serrated Hex Flange Washer Head .312-18 x .75

$2.99

$

In Stock, Qty 13

0

19

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

21

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 00548400

Retainer .38 Push-On

$1.49

$

In Stock, only 3 left!

0

23

Gravely 06437500

Washer, Flat Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0
