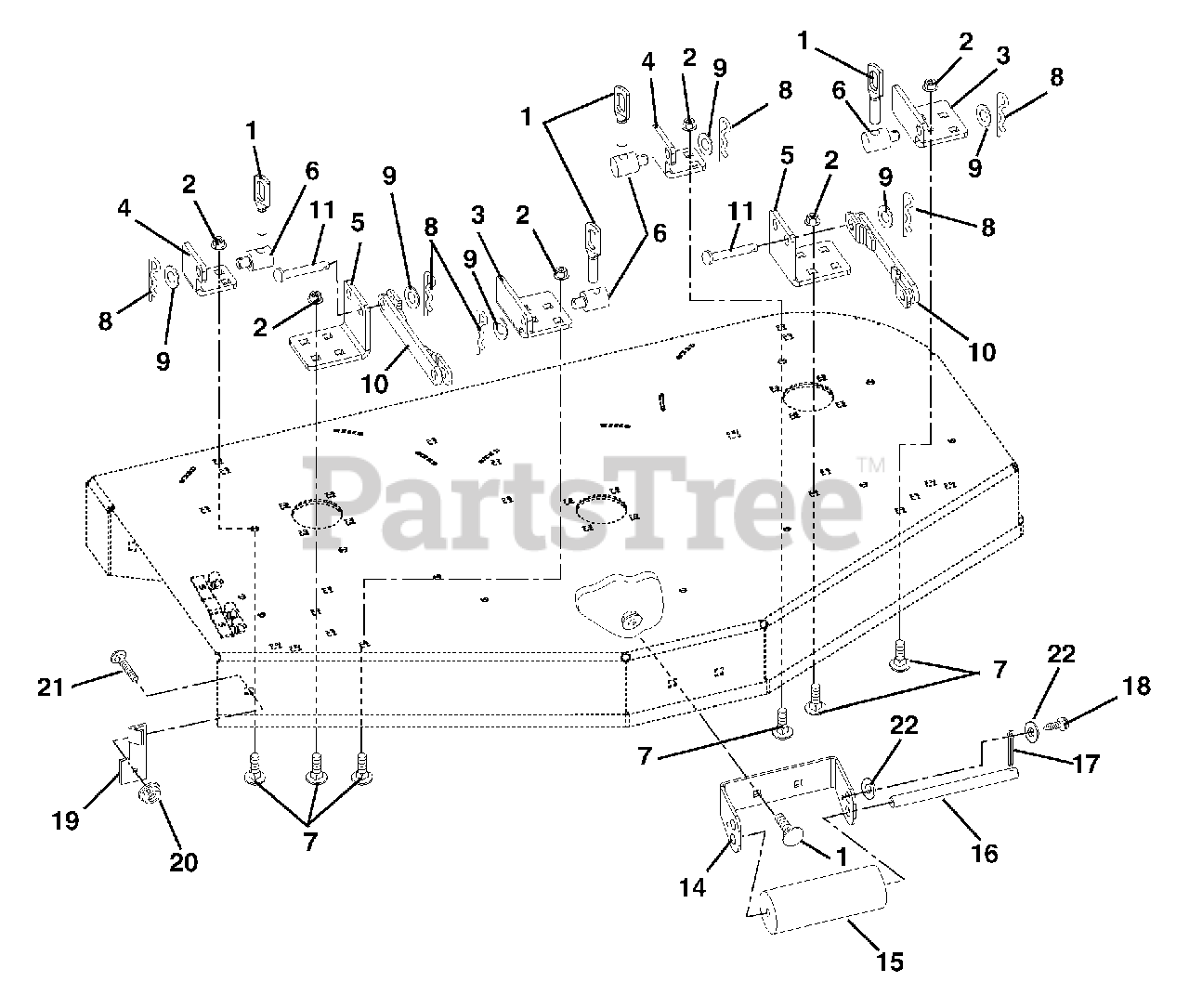

915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Stabilizer And Roller Brackets With Roller Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

Stabilizer And Roller Brackets With Roller Parts Diagram

  • Title

1

Gravely 00160000

DECK LINK
(Superseded to 03967600)

$40.99

$

In Stock, Qty 5

0

2

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 01590251

BRACKET, MOUNT,FRONT

$40.99

$

In Stock, only 2 left!

0

4

Gravely 01604551

BRACKET, REAR MOUNT

$48.99

$

Usually ships in 4-12 days

0

5

Gravely 01573551

BRACKET, STABILIZER

$34.99

$

In Stock, only 1 left!

0

6

Gravely 01590400

TRUNNION-.50

$59.99

$

In Stock, only 3 left!

0

7

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

8

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 01573651

WMT, STABILIZER ARM
(Superseded to 00270200)

$27.99

$

Usually ships in 4-12 days

0

11

Gravely 036568

PIN,CLEV .50X1.25X1.02 YWZC
(Superseded to 06821600)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

14

Gravely 01572951

BRACKET, ROLLER MOUNT

$68.99

$

Usually ships in 4-12 days

0

15

Gravely 039563

ROLLER
(Superseded to 03114100)

$23.99

$

In Stock, Qty 20+

0

16

Gravely 01575600

PIN, RETAINER

$57.99

$

In Stock, only 2 left!

0

17

Gravely 06713000

PIN-CTR .25X1.00 YWZC

$1.99

$

In Stock, only 4 left!

0

18

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 01599151

BRACKET, CHUTE LOCK

$35.99

$

Usually ships in 4-12 days

0

20

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
