915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Steering Controls Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

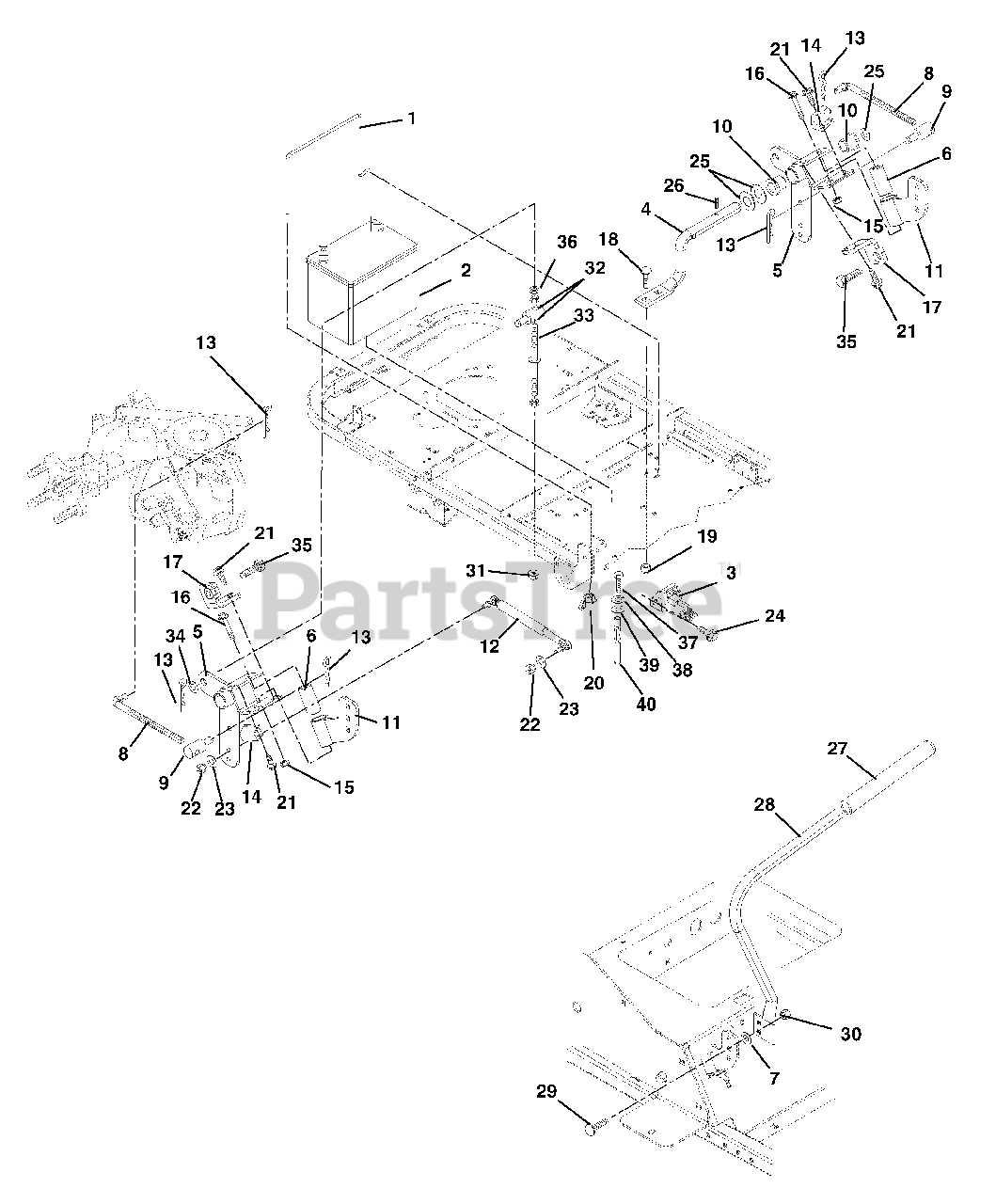

Steering Controls Parts Diagram

  • Title

1

Gravely 01533400

Battery Rod

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 01554800

Battery (12 Volt, 330 CCA, 50 Min. Reserve Cap.) (043)

Note: (12 Volt, 330 CCA, 50 Min. Reserve Cap.) (043)

$

$

Not available

3

Gravely 03679000

Solenoid
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

4

Gravely 01581800

Rod Pivot

$

$

Not available

5

Gravely 01604300

Weldment, Control

$77.99

$

In Stock, only 1 left!

0

6

Gravely 01581700

Spacer

$6.99

$

In Stock, Qty 20+

0

7

Gravely 06307200

Washer, Locking Extenal .326 x .599 x .031
(Superseded to 06300125)

$0.99

$

In Stock, only 1 left!

0

8

Gravely 00186900

Link, Wireform

$

$

Not available

9

Gravely 02493000

Pivot, Rod

$

$

Not available

10

Gravely 01591100

Bushing 1.00 x .75 x 1.00

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 01604400

Weldment, Handlebar

$

$

Not available

12

Gravely 00188700

Damper

$100.99

$

In Stock, Qty 8

0

13

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

14

Gravely 03606600

Switch, Double Pole N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

15

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 05959900

Bolt, Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$5.49

$

In Stock, Qty 8

0

17

Gravely 00184400

Bracket, Tracking

$

$

Not available

18

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

19

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

21

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

22

Gravely 06538600

Nut, Hex M8-1.25

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07411600

Screw, Tapping .25-20 x .37 Hex Washer Head
(Superseded to 07400125)

$1.49

$

In Stock, Qty 8

0

25

Gravely 06444100

Washer, Flat Steel .754 x 1.00 x .032

$2.99

$

In Stock, Qty 17

0

26

Gravely 036146

Pin, Roll .188 x 1.13
(Superseded to 05802100)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 00188900

Grip, Handlebar

$13.99

$

In Stock, only 2 left!

0

28

Gravely 01598551

Handlebar, Right Hand

$

$

Not available

28

Gravely 01598651

Handlebar, Left Hand

$79.99

$

Usually ships in 4-12 days

0

29

Gravely 06209500

Bolt, Round Head Square Neck .31-18 x .88 Grade 5

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 06545400

Nut, .31-18 Flange Nyloc
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 00184900

Rod, Tracking

$30.99

$

Usually ships in 4-12 days

0

34

Gravely 06541900

Nut, Locking Jam Patch 1.00-20

$33.99

$

In Stock, only 1 left!

0

35

Gravely 05900004

Screw, Socket Head .25-20 x 1.25

$

$

Not available

36

Gravely 00162200

Trunnion

$20.99

$

Usually ships in 4-12 days

0

37

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

38

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 00187100

Rod

$63.99

$

In Stock, only 3 left!

0
