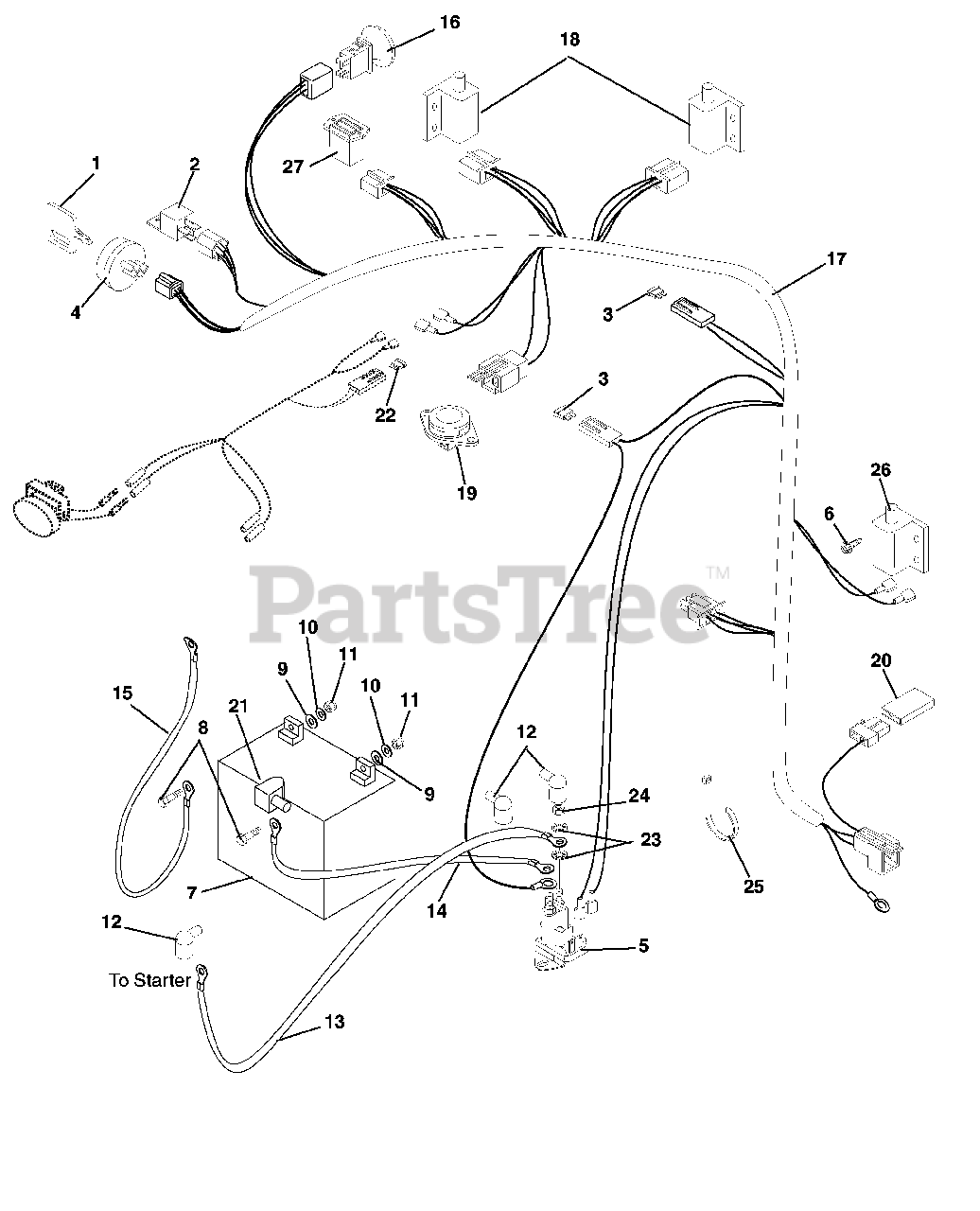

915044 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Kohler (SN: 000101 - 004999) Electrical System Parts Diagram

40" Zero-Turn Mower, 17hp Kohler

Electrical System Parts Diagram

  • Title

1

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

4

Gravely 01588300

KEY SWITCH

$33.99

$

In Stock, Qty 20+

0

5

Gravely 03679000

SOLENOID
(Superseded to 59223400)

Note: (044)

$63.99

$

In Stock, Qty 20+

0

6

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

11

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

12

Gravely 07533200

BOOT, EYELET TERMINAL

Note: (044)

$3.99

$

In Stock, Qty 18

0

Gravely 07533200

BOOT, EYELET TERMINAL

Note: (046, 48, 50)

$3.99

$

In Stock, Qty 18

0

13

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

$21.99

$

In Stock, only 2 left!

0

14

Gravely 02727200

STARTER CABLE 13"
(Superseded to 02727201)

Note: (044)

$23.99

$

In Stock, only 2 left!

0

15

Gravely 036314

CABLE, GROUND 22.00"
(Superseded to 03111101)

$23.99

$

In Stock, only 2 left!

0

16

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

17

Gravely 01602900

WIRE HARNESS - ZOOM 6 PIN
(Superseded to 01602901)

$244.99

$

Usually ships in 4-12 days

0

18

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

19

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 20+

0

20

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

21

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

22

Gravely 09356600

FUSE-10 AMP ATC TYPE

$

$

Not available

23

Gravely 06310500

WSHR-LOCK INT .31 YWZC

Note: (044)

$0.99

$

In Stock, Qty 8

0

24

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

Note: (044)

$1.49

$

In Stock, only 2 left!

0

25

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

26

Gravely 03095700

SWITCH, INTERLOCK NC

$9.99

$

Usually ships in 4-12 days

0

27

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$63.99

$

Usually ships in 4-12 days

0
