915044 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Kohler (SN: 005000 - 009999) Front Axle, Tires And Bumper Parts Diagram

40" Zero-Turn Mower, 17hp Kohler

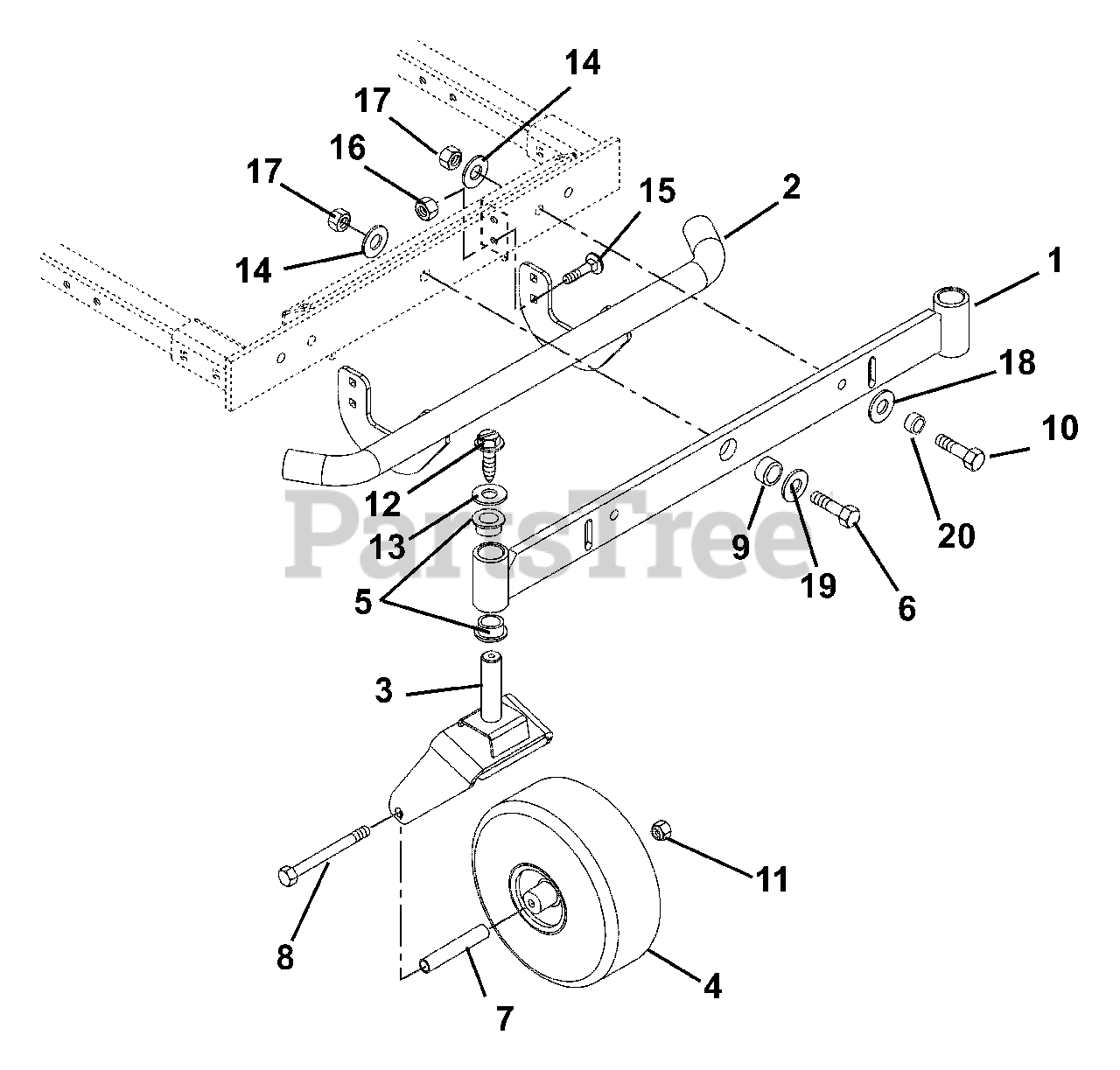

Front Axle, Tires And Bumper Parts Diagram

  • Title

1

Gravely 01600851

WMT, FRONT AXLE

$307.99

$

In Stock, only 1 left!

0

2

Gravely 01589551

BUMPER-ZOOM

$

$

Not available

3

Gravely 00363351

FORK,CASTER
(Superseded to 03368551)

$72.99

$

In Stock, only 4 left!

0

4

Gravely 01588100

ASSY-TIRE 4 X 11 - 4 PLY
(Superseded to 07100124)

$74.99

$

Usually ships in 4-12 days

0

5

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

6

Gravely 05969300

@BLT-HEX .62-11X2.50 GR5 YWZC

$4.99

$

In Stock, only 2 left!

0

7

Gravely 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

8

Gravely 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 17

0

9

Gravely 01600400

BUSHING, AXLE PIVOT

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07417100

SCR-TAP .38-16X1.25 HWH TR BZC
(Superseded to 07414700)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, Qty 8

0

15

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06540700

@NUT-LK-NYL .625-11 YWZC

$3.99

$

In Stock, Qty 16

0

18

Gravely 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 17

0

19

Gravely 06442900

@WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, only 2 left!

0

20

Gravely 00271800

SPACER, .750 D X .558 LONG

$17.99

$

In Stock, only 1 left!

0
