915044 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Kohler (SN: 005000 - 009999) Fuel Tank Parts Diagram

40" Zero-Turn Mower, 17hp Kohler

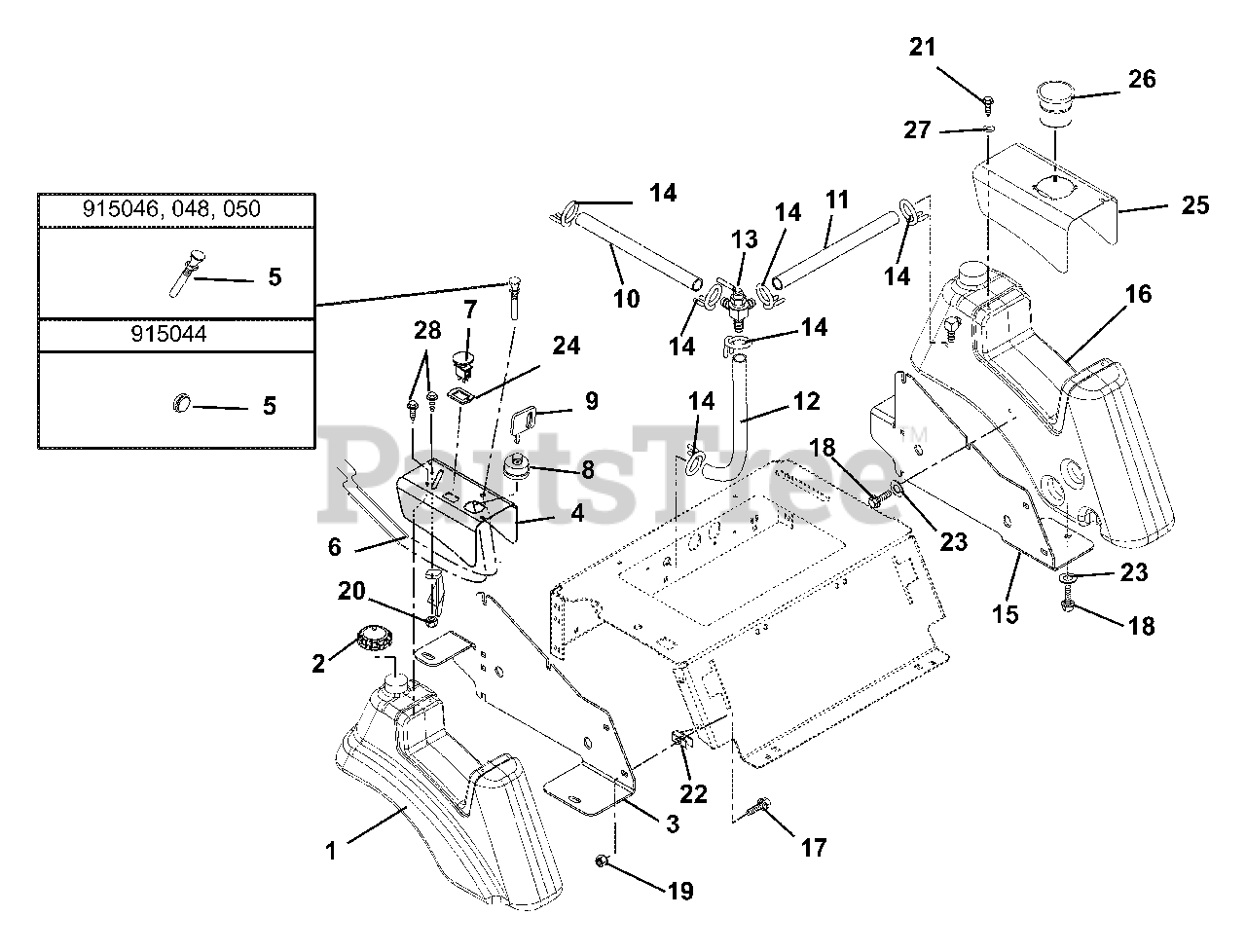

Fuel Tank Parts Diagram

  • Title

1

Gravely 01614100

FUEL TANK, RH

$262.99

$

Usually ships in 4-12 days

0

2

Gravely 01538400

FUEL CAP

$14.99

$

In Stock, Qty 15

0

3

Gravely 00296751

SEAT PLATE, RH

$

$

Not available

4

Gravely 01614551

RH CONSOLE

$

$

Not available

5

Gravely 01588400

CHOKE CABLE

Note: (046, 048, 050)

$68.99

$

Usually ships in 4-12 days

0

Gravely 00529900

HOLE PLUG, PLASTIC .44 HOLE

Note: (044)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 01588500

THROTTLE CABLE

Note: (046, 048, 050)

$64.99

$

Usually ships in 4-12 days

0

Gravely 00355100

THROTTLE CABLE

Note: (044)

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

SWITCH, CLUTCH

$23.99

$

In Stock, Qty 19

0

8

Gravely 01588300

KEY SWITCH

$28.99

$

In Stock, Qty 11

0

9

Gravely 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 16

0

10

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (046, 048, 050)

$0.99

$

In Stock, Qty 20+

0

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (044)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09258200

VALVE, FUEL

$45.99

$

In Stock, Qty 9

0

14

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

15

Gravely 00296851

SEAT PLATE, LH

$

$

Not available

16

Gravely 01614000

FUEL TANK, LH

$

$

Not available

17

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

18

Gravely 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 13

0

19

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

21

Gravely 06100003

SCR-MCH 10-24X3/8 SL HEX YWZC

$1.99

$

In Stock, Qty 5

0

22

Gravely 00548400

RETAINER, .38 PUSH-ON

$1.49

$

In Stock, only 3 left!

0

23

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

24

Gravely 00289200

SHIM,PTO SW (DELTA #972301)

$

$

Not available

25

Gravely 01614451

LH CONSOLE

$82.99

$

Usually ships in 4-12 days

0

26

Gravely 01528500

CUPHOLDER

$15.99

$

In Stock, only 3 left!

0

27

Gravely 06400004

WASHER, FENDER 3/16X3/4 YWZC

$2.49

$

In Stock, Qty 5

0

28

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0
