915046 (ZT 1944) - Gravely 44" Zero-Turn Mower, 19hp Kohler (SN: 000101 - 004999) Mower Brackets And Rollers Parts Diagram

44" Zero-Turn Mower, 19hp Kohler

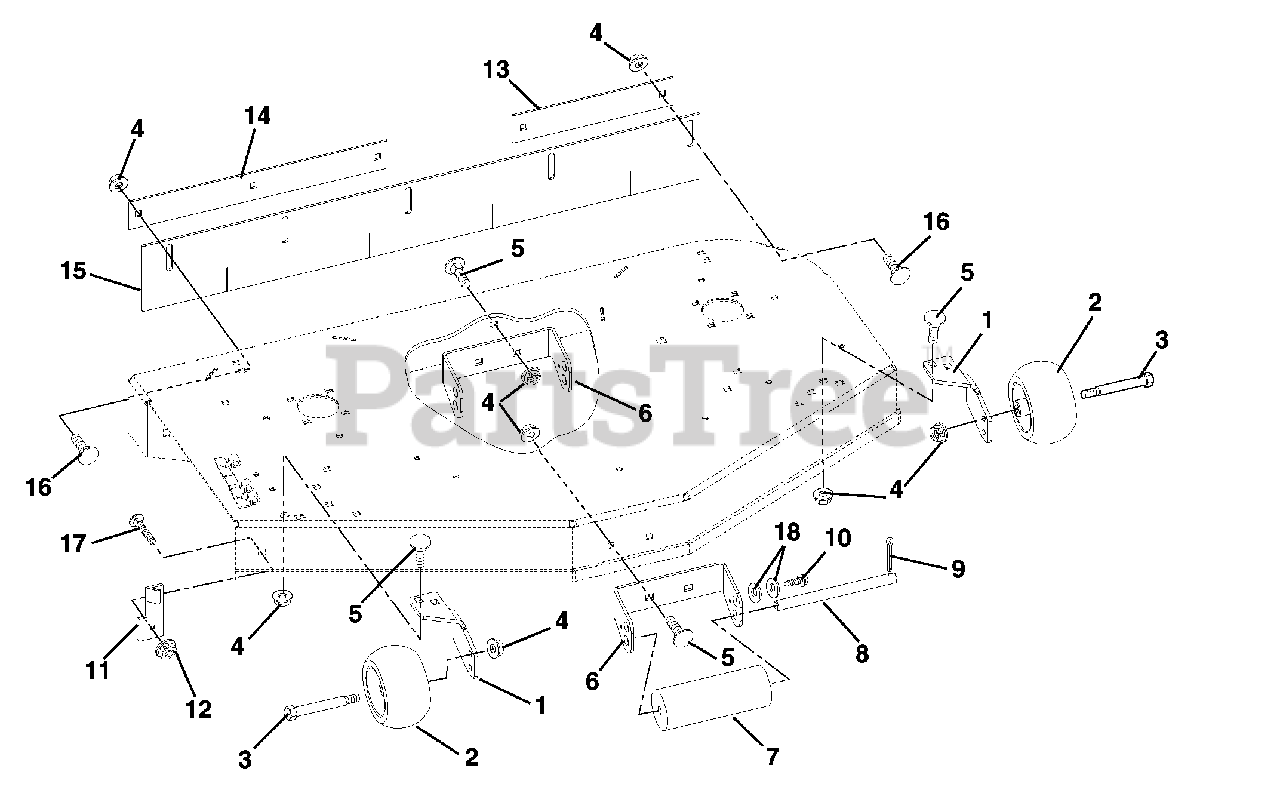

Mower Brackets And Rollers Parts Diagram

  • Title

1

Gravely 01574851

Bracket, Anti Scalp
(Superseded to 02950351)

$30.99

$

In Stock, only 2 left!

0

2

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

3

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$7.49

$

In Stock, Qty 20+

0

4

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 1 left!

0

6

Gravely 01572951

Bracket, Roller Mount

$68.99

$

Usually ships in 4-12 days

0

7

Gravely 039563

Roller
(Superseded to 03114100)

$23.99

$

In Stock, Qty 12

0

8

Gravely 01575600

Pin, Retainer

$57.99

$

Usually ships in 4-12 days

0

9

Gravely 06713000

Pin, Cotter .25 x 1.00

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 01599151

Bracket, Chute Lock

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 06534900

Nut-Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 01577451

Bar, Left Hand Retainer Striper

$18.99

$

In Stock, only 1 left!

0

14

Gravely 01576951

Bar, Retaining Striper (044)

Note: (044)

$16.99

$

Usually ships in 4-12 days

0

14

Gravely 01577651

Bar, Retaining Striper (046)

Note: (046)

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 01577351

Bar, Retaining Striper (048, 050)

Note: (048, 050)

$28.99

$

In Stock, only 1 left!

0

15

Gravely 01576800

Striper, Rubber-40" (044)

Note: (044)

$62.99

$

Usually ships in 4-12 days

0

15

Gravely 01577500

Striper, Rubber-44" (046)

Note: (046)

$80.99

$

Usually ships in 4-12 days

0

15

Gravely 01577000

Striper, Rubber-48" (048)

Note: (048)

$83.99

$

Usually ships in 4-12 days

0

15

Gravely 01577200

Striper, Rubber-52" (050)

Note: (050)

$

$

Not available

16

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 1 left!

0

17

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
