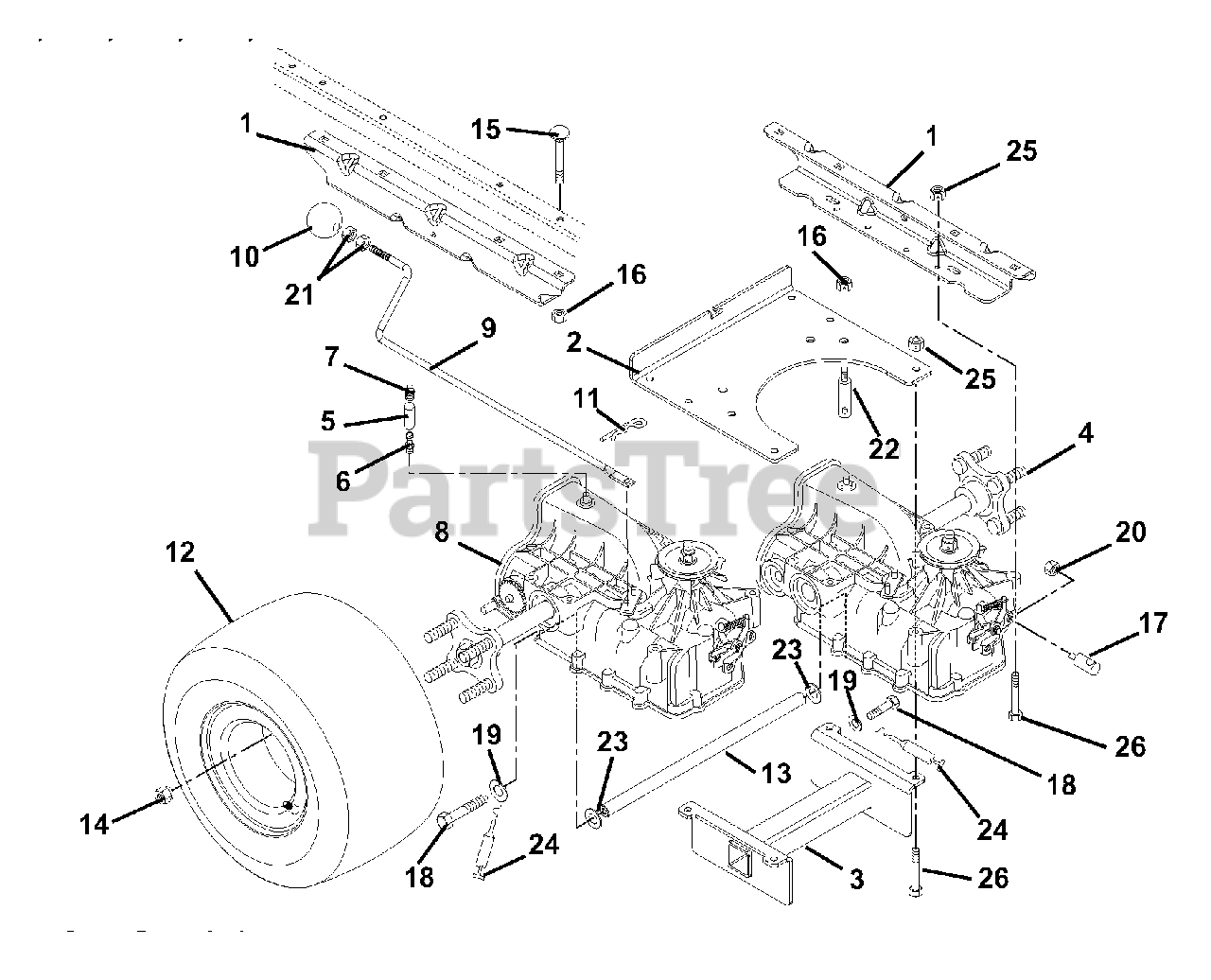

915051 (1640) - Ariens Zoom 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 005000 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

Zoom 40" Zero-Turn Mower, 16hp Briggs & Stratton

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Ariens 01577951

BKT-TRANS AXLE

$31.99

$

Usually ships in 4-12 days

0

2

Ariens 01578051

BKT-TRANS AXLE SUPPORT

$

$

Not available

3

Ariens 01578151

WLDMT-TRANS AXLE BRACE

$

$

Not available

4

Ariens 01588900

IZT-LH

$

$

Not available

5

Ariens 01543100

HOSE - VENT

$9.99

$

In Stock, only 2 left!

0

6

Ariens 07026300

FTG-STR .50 O-RING

$26.99

$

In Stock, only 2 left!

0

7

Ariens 07026400

CAP-VENT .50

$17.99

$

In Stock, only 2 left!

0

8

Ariens 01589000

IZT-RH

$

$

Not available

9

Ariens 01581600

ROD-DUMP IZT

$

$

Not available

10

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

$22.99

$

In Stock, only 2 left!

0

11

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

12

Ariens 01587800

ASSY-TIRE 9.5X18-2PLY
(Superseded to 07100233)

Note: (055, 057, 059, 501)

$174.99

$

In Stock, only 2 left!

0

12

Ariens 01588700

ASSY-TIRE 8.5X18 2PLY
(Superseded to 07100234)

Note: (051)

$139.99

$

Usually ships in 4-12 days

0

13

Ariens 01578200

ROD-AXLE BRACE

$

$

Not available

14

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 20+

0

16

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 01568600

ROD PIVOT YWZC

$52.99

$

Usually ships in 4-12 days

0

18

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 03622900

SHOULDER STUD

$35.99

$

In Stock, only 2 left!

0

23

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

24

Ariens 00929200

ADHSV SEALANT (BLUE) 250 ML

$

$

Not available

25

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

26

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, only 2 left!

0
