915057 (2148) - Ariens Zoom 48" Zero-Turn Mower, 21hp Kohler (SN: 000101 - 004999) Mower Brackets And Rollers Parts Diagram

Zoom 48" Zero-Turn Mower, 21hp Kohler

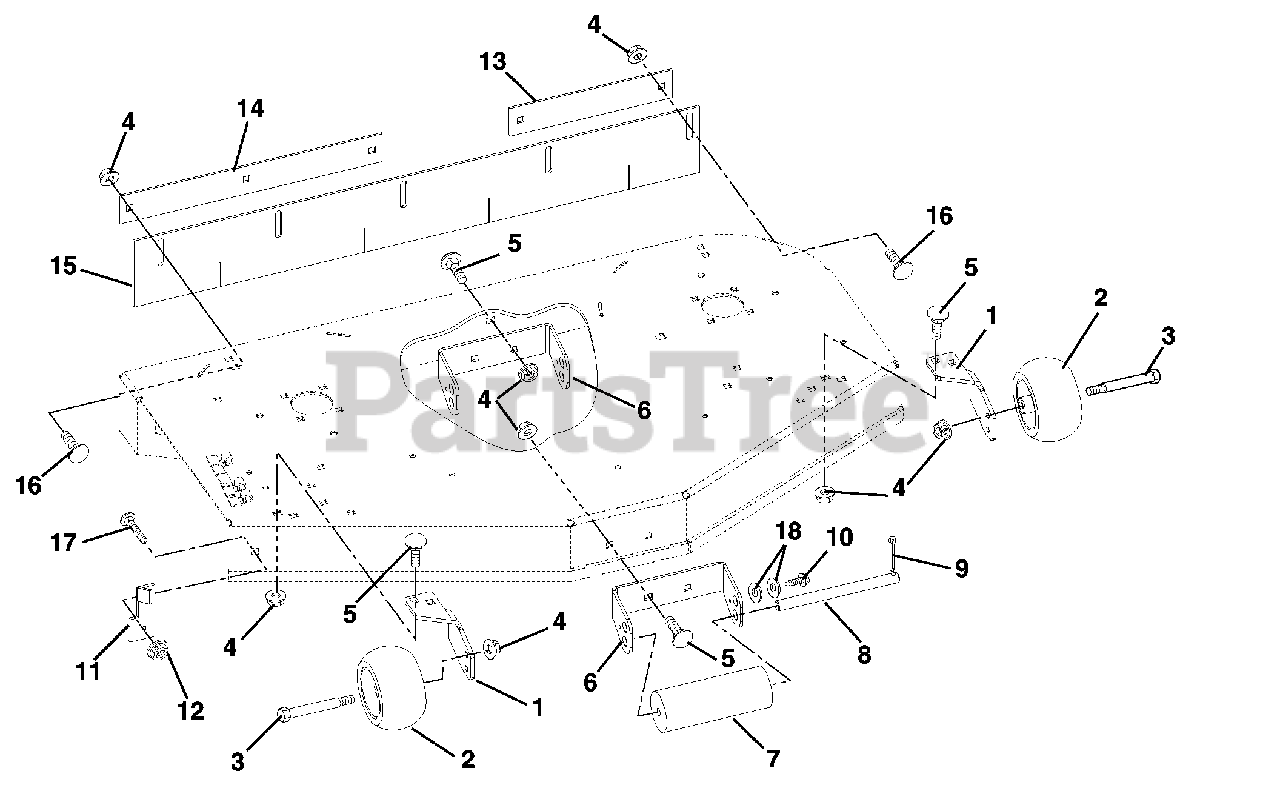

Mower Brackets And Rollers Parts Diagram

  • Title

1

Ariens 01574851

BRACKET, ANTI SCALP
(Superseded to 02950351)

$30.99

$

In Stock, only 2 left!

0

2

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

3

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$7.49

$

In Stock, Qty 20+

0

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 9

0

5

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 8

0

6

Ariens 01572951

BRACKET, ROLLER MOUNT

$68.99

$

Usually ships in 4-12 days

0

7

Ariens 03114100

ROLLER

$23.99

$

In Stock, only 2 left!

0

8

Ariens 01575600

PIN, RETAINER

$57.99

$

In Stock, only 2 left!

0

9

Ariens 06713000

@PIN-CTR .25X1.00 YWZC

$1.99

$

In Stock, only 4 left!

0

10

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 01599151

BRACKET, CHUTE LOCK

$35.99

$

Usually ships in 4-12 days

0

12

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 01577451

BAR, LH RETAINER STRIPER

$18.99

$

In Stock, only 1 left!

0

14

Ariens 01576951

BAR, RETAINING STRIPER-40"

Note: (051)

$16.99

$

Usually ships in 4-12 days

0

14

Ariens 01577651

BAR, RETAINING STRIPER-44"

Note: (055, 501)

$18.99

$

Usually ships in 4-12 days

0

15

Ariens 01577351

BAR, RETAINING STRIPER-52"

Note: (057, 059)

$28.99

$

In Stock, only 1 left!

0

15

Ariens 01576800

STRIPER, RUBBER-40"

Note: (051)

$62.99

$

Usually ships in 4-12 days

0

15

Ariens 01577500

STRIPER, RUBBER-44"

Note: (055, 501)

$80.99

$

Usually ships in 4-12 days

0

15

Ariens 01577000

STRIPER, RUBBER-48"

Note: (057)

$83.99

$

Usually ships in 4-12 days

0

15

Ariens 01577200

STRIPER, RUBBER-52"

Note: (059)

$

$

Not available

16

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 8

0

17

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
