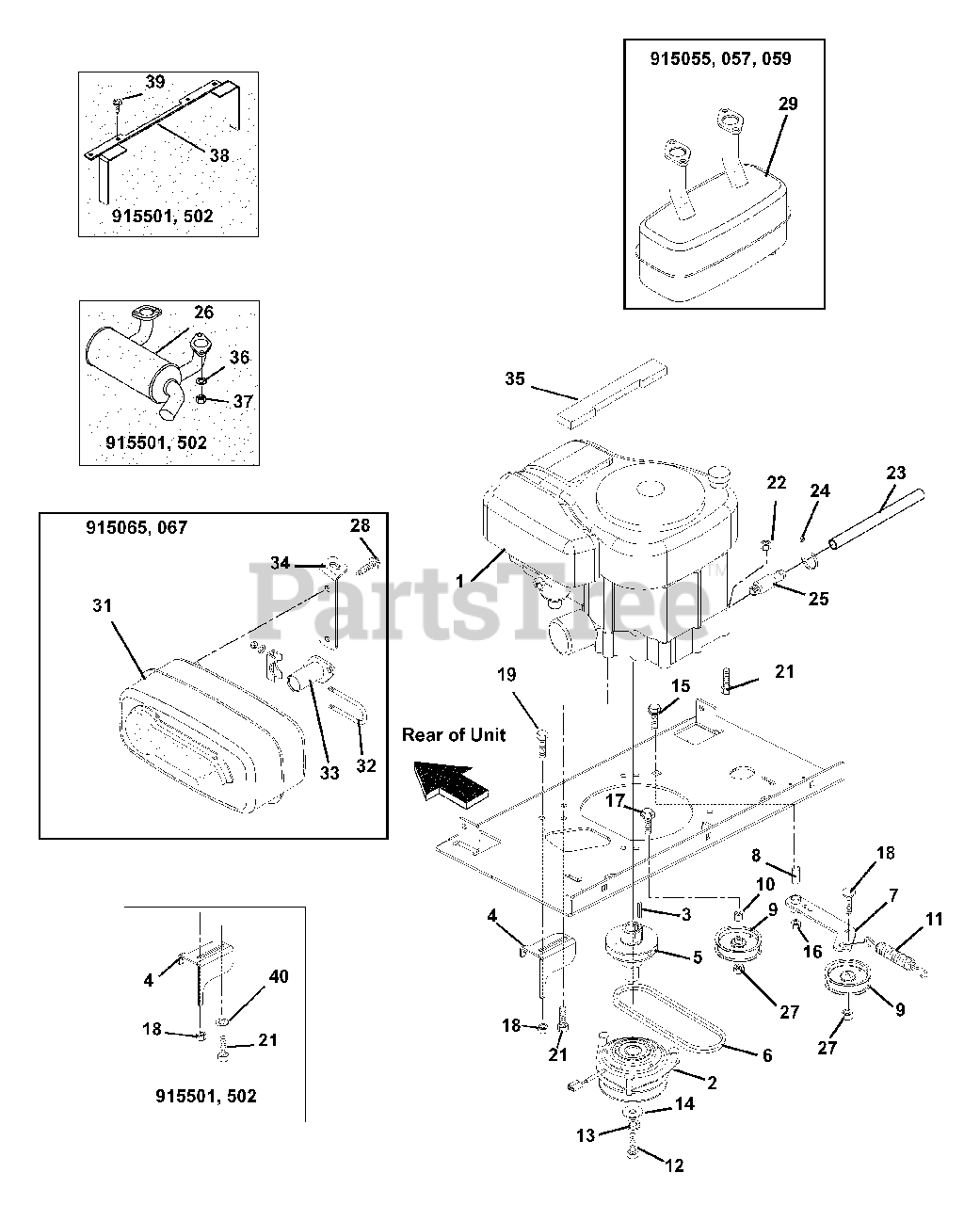

915057 (2148) - Ariens Zoom 48" Zero-Turn Mower, 21hp Kohler (SN: 010000 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

Zoom 48" Zero-Turn Mower, 21hp Kohler

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Ariens 08200005

ENGINE, KOHLER COURAGE

Note: (915065)

$

$

Not available

1

Ariens 08200005

ENGINE, KOHLER COURAGE

Note: (915067)

$

$

Not available

1

Ariens 08200006

ENGINE, 19HP KOHLER

Note: (915055)

$

$

Not available

1

Ariens 08200008

ENGINE, 23HP KOHLER

Note: (915057, 059)

$

$

Not available

1

Ariens 08200013

ENGINE, 15HP KAW FH451V

Note: (915502)

$

$

Not available

1

Ariens 08266900

ENGINE, 17 HP KAWASAKI FH500V

Note: (915501)

$

$

Not available

2

Ariens 00191700

CLUTCH,ELECTRIC PTO

Note: (915055, 057, 059, 067, 501)

$382.99

$

In Stock, only 2 left!

0

2

Ariens 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

Note: (915065, 502)

$302.99

$

Usually ships in 4-12 days

0

3

Ariens 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$4.99

$

Usually ships in 4-12 days

0

4

Ariens 00363751

STOP, CLUTCH

$52.99

$

In Stock, only 1 left!

0

5

Ariens 00363200

EXTENSION, CRANK SHAFT

$329.99

$

Usually ships in 4-12 days

0

6

Ariens 07221000

V-BELT, HA-RAW EDGE

Note: (915065, 502)

$34.99

$

In Stock, Qty 6

0

6

Ariens 07241400

BELT,HA WRAPPED

Note: (915055, 057, 059, 067, 501)

$53.99

$

In Stock, only 2 left!

0

7

Ariens 00375600

WMT,IDLER
(Superseded to 51516000)

$168.99

$

Usually ships in 4-12 days

0

8

Ariens 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 11

0

9

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

10

Ariens 00186400

BSHG,SPCR .41 X .75 X .88 PM

$6.49

$

Usually ships in 4-12 days

0

11

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

12

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, only 3 left!

0

13

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

14

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

15

Ariens 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 9

0

18

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

19

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (915065, 067, 502)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (915055, 057, 059, 501)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 00396251

HEAT SHIELD

Note: (915501, 502)

$

$

Not available

21

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (915067)

$3.49

$

In Stock, Qty 5

0

21

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 16

0

22

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (915067)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 00191400

TUBE, OIL DRAIN

$9.99

$

Usually ships in 4-12 days

0

24

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

25

Ariens 07067800

VALVE, OIL DRAIN

Note: (915055, 057, 059, 065, 067)

$40.99

$

Usually ships in 4-12 days

0

26

Ariens 09298000

MUFFLER, KAW. (COMPACT-Z)

Note: (915501, 502)

$260.99

$

Usually ships in 4-12 days

0

27

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915065, 067)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 00185300

MUFFLER
(Superseded to 00391700)

Note: (915055, 057, 059)

$148.99

$

In Stock, only 2 left!

0

30

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 00182400

MUFFLER, KOHLER COURAGE SINGLE
(Superseded to 51515900)

Note: (915065, 067)

$140.99

$

In Stock, only 2 left!

0

32

Ariens 00255400

MUFFLER CLAMP

Note: (915065, 067)

$6.99

$

In Stock, only 4 left!

0

33

Ariens 00253900

WMT, MANIFOLD
(Superseded to 00440000)

Note: (915065, 067)

$48.99

$

In Stock, only 2 left!

0

34

Ariens 00255000

MUFFLER BRACKET

Note: (915065, 067)

$

$

Not available

35

Ariens 00277300

FOAM SEAL, 1.5"X3.5"X24"

Note: (915055, 057, 059)

$

$

Not available

36

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (915501, 502)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06538600

NUT-HEX M8-1.25 YWZC

Note: (915501, 502)

$2.49

$

Usually ships in 4-12 days

0

38

Ariens 00396251

HEAT SHIELD

Note: (915501, 502)

$

$

Not available

39

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (915501, 502)

$1.99

$

In Stock, Qty 20+

0

40

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 1 left!

0
