915057 (2148) - Ariens Zoom 48" Zero-Turn Mower, 21hp Kohler (SN: 010000 & Above) Frame, Hood And Footrest Parts Diagram

Zoom 48" Zero-Turn Mower, 21hp Kohler

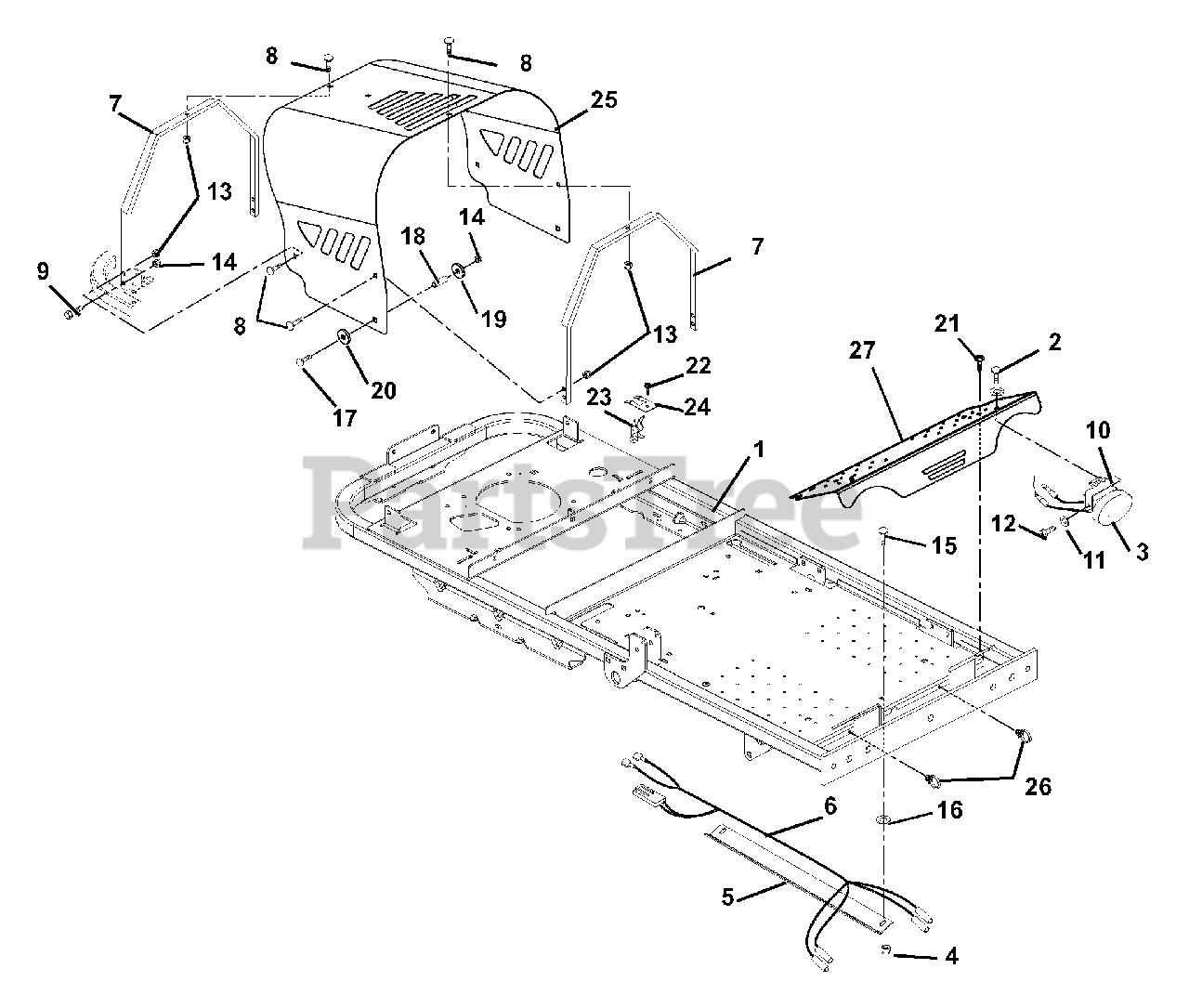

Frame, Hood And Footrest Parts Diagram

  • Title

1

Ariens 00289051

WMT, FRAME

Note: (055, 057, 059, 067)

$

$

Not available

Ariens 00424251

WMT,FRAME

Note: (501)

$

$

Not available

2

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$1.49

$

Usually ships in 4-12 days

0

3

Ariens 01588200

LIGHT-CONS RIDE ON- SEE B-2124

Note: (Includes Halogen H3 12 Volt 55 Watt Bulb)

$

$

Not available

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 01589951

BKT-HARNESS

$23.99

$

Usually ships in 4-12 days

0

6

Ariens 01587900

HARNESS, LIGHT

$

$

Not available

7

Ariens 01605151

BRACE, HOOD

$114.99

$

In Stock, only 1 left!

0

8

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, Qty 12

0

10

Ariens 01603100

WMT, LIGHT BRACKET

$68.99

$

Usually ships in 4-12 days

0

11

Ariens 06311200

WSHR-LK 4MMX1MM REG CL ZINC

$

$

Not available

12

Ariens 05980400

SCREW-M4X.07X8 SHCS CLZNC

$2.49

$

In Stock, only 2 left!

0

13

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

17

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

18

Ariens 00363800

BSHG, SPCR .390X.625X1.25 PM

$18.99

$

In Stock, only 1 left!

0

19

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0

20

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

21

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 00366700

HOOD CLIP

$10.99

$

In Stock, Qty 10

0

24

Ariens 00372700

BRACKET, HOOD CLIP

$30.99

$

Usually ships in 4-12 days

0

25

Ariens 00362759

ENGINE HOOD

$74.99

$

Usually ships in 4-12 days

0

26

Ariens 00367900

ROUTING CLIP (1/2" ID)

$1.99

$

In Stock, only 1 left!

0

27

Ariens 00357853

FOOTREST

$39.99

$

Usually ships in 4-12 days

0
