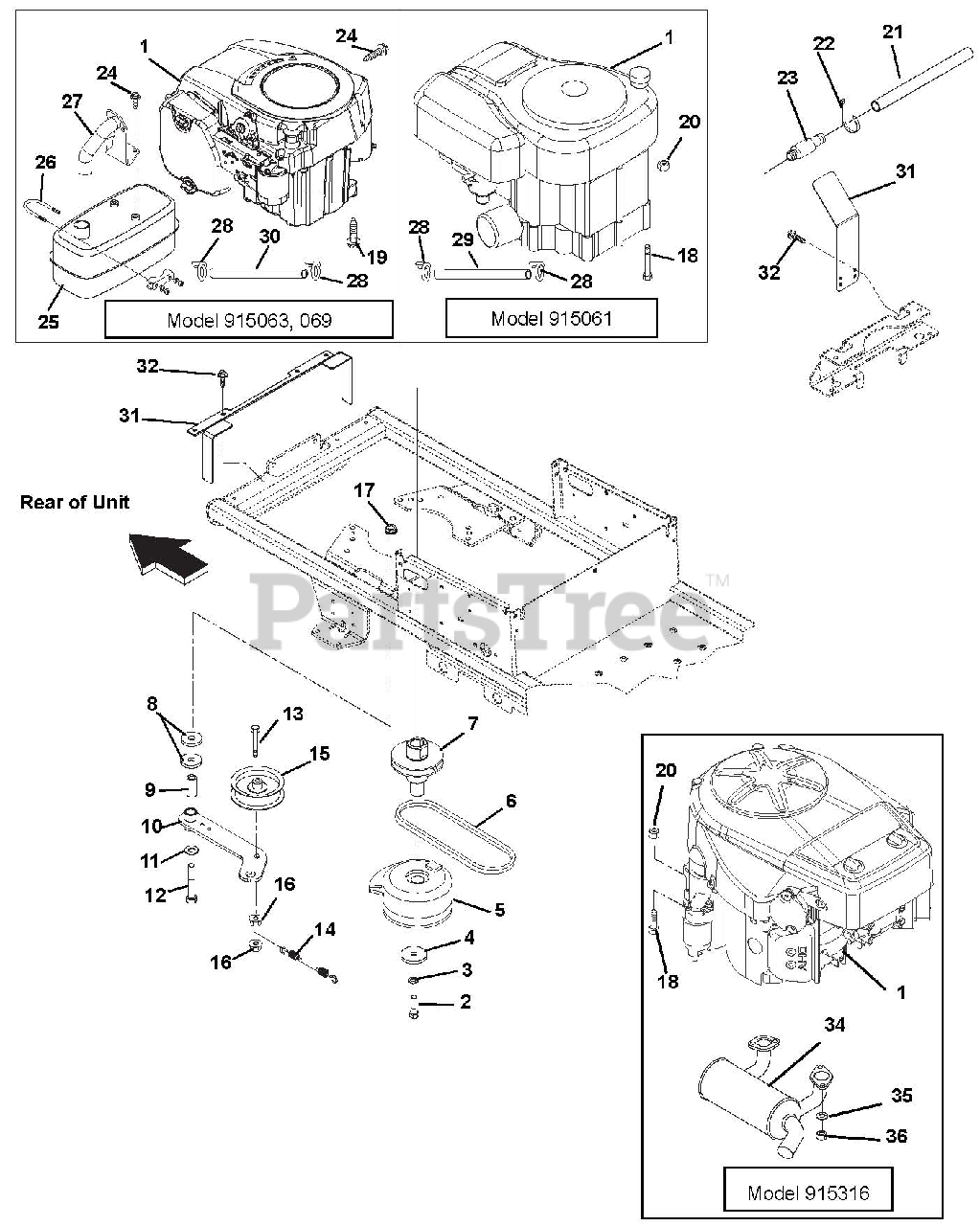

915061 (1434) - Ariens Mini-Zoom 34" Zero-Turn Mower, 14hp Briggs & Stratton (SN: 000101 - 004999) > Parts Diagrams (14) > Engine, Exhaust, Belts And Idlers

  • Title
08200004

1

ENGINE, 15HP KOLHER

Part# 08200004

Note: (915063, 069)

OEM Warranty Repair Part for Ariens

Not available

08200022

1

ENGINE,28 CI B&S I/C

Part# 08200022

Note: (915061)

OEM Warranty Repair Part for Ariens

Not available

08200013

1

ENGINE, 15HP KAW FH451V

Part# 08200013

Note: (915316)

OEM Warranty Repair Part for Ariens

Not available

05966700

2

BLT-HEX .44-20X4.50 GR8 YWZC

Part# 05966700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06309300

3

@WSHR-LK .44X.109 REG YWZC

Part# 06309300

OEM Warranty Repair Part for Ariens

Not available

06443600

4

WSHR-FL-STL .469X2.00X.25 YWZC

Part# 06443600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

03643100

5

ELECTRIC CLUTCH/BRAKE (3.4AMP)

Part# 03643100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $277.50

07229000

6

V-BELT, HA-RAW EDGE

Part# 07229000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $41.31

00365000

7

CRANKSHAFT EXTENSION

Part# 00365000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $123.65

06445000

8

WSHR-FL-STL .515X1.625X.250 YZ

Part# 06445000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05516400

9

BSHG-SLV .500X.750X1.560

Part# 05516400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00375600

10

WMT,IDLER

Part# 00375600 (Superseded to 51516000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $135.22

06441900

11

@WSHR-FL-STL.531X1.06X.095YWZC

Part# 06441900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05960000

12

@BLT-HEX .50-13X3.25 GR5 YWZC

Part# 05960000

OEM Warranty Repair Part for Ariens

Not available

05963300

13

@BLT-HEX .38-16X2.00 GR5 YWZC

Part# 05963300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

08336100

14

SPRING, EXT

Part# 08336100 (Superseded to 08300512)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

07324100

15

IDLER FLANGED 3.50

Part# 07324100 (Superseded to 07300028)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.72

06545500

16

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06543600

17

@NUT-LK-TOP-FLG .50-13 YWZC

Part# 06543600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05957400

18

@BLT-HEX .31-18X1.75 GR5 YWZC

Part# 05957400

Note: (915061, 316)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07414100

19

@SCR-TAP .38-16X1.00 HWH TR YZ

Part# 07414100

Note: (915063, 069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06545400

20

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

Note: (915061, 316)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00191400

21

TUBE, OIL DRAIN

Part# 00191400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

07517300

22

CABLE TIE LG 5-1/2

Part# 07517300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07067800

23

VALVE, OIL DRAIN

Part# 07067800

Note: (915061, 063, 069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

07412000

24

@SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07412000 (Superseded to 07400034)

Note: (915063, 069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00182400

25

MUFFLER, KOHLER COURAGE SINGLE

Part# 00182400 (Superseded to 51515900)

Note: (915063, 069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $111.74

00255400

26

MUFFLER CLAMP

Part# 00255400

Note: (915063, 069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00368000

27

WMT, MANIFOLD

Part# 00368000

Note: (915063, 069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $223.54

06939100

28

CLAMP-HOSE WIRE .490/.510X.116

Part# 06939100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00924300

29

GAS LINE-BULK 1/4" I.D.

Part# 00924300 (Superseded to 03278100)

Note: (915061, 316)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $0.45

00924300

30

GAS LINE-BULK 1/4" I.D.

Part# 00924300 (Superseded to 03278100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $0.45

00382051

31

HEAT SHIELD,MINI-Z

Part# 00382051

Note: (915061, 063, 069)

OEM Warranty Repair Part for Ariens

Not available

07411500

32

@SCR-TAP .31-18X.50 HWH TR YWZ

Part# 07411500 (Superseded to 07400124)

Note: (915061, 063, 069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07411500

32

@SCR-TAP .31-18X.50 HWH TR YWZ

Part# 07411500 (Superseded to 07400124)

Note: (915316)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00396251

33

HEAT SHIELD

Part# 00396251

Note: (915316)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

09298000

34

MUFFLER, KAW. (COMPACT-Z)

Part# 09298000

Note: (915316)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $177.04

06308600

35

@WSHR-LK .31X.078 REG YWZC

Part# 06308600

Note: (915316)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06538600

36

NUT-HEX M8-1.25 YWZC

Part# 06538600

Note: (915316)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
