915063 (1540) - Ariens Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler (SN: 020000 & Above)

Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler

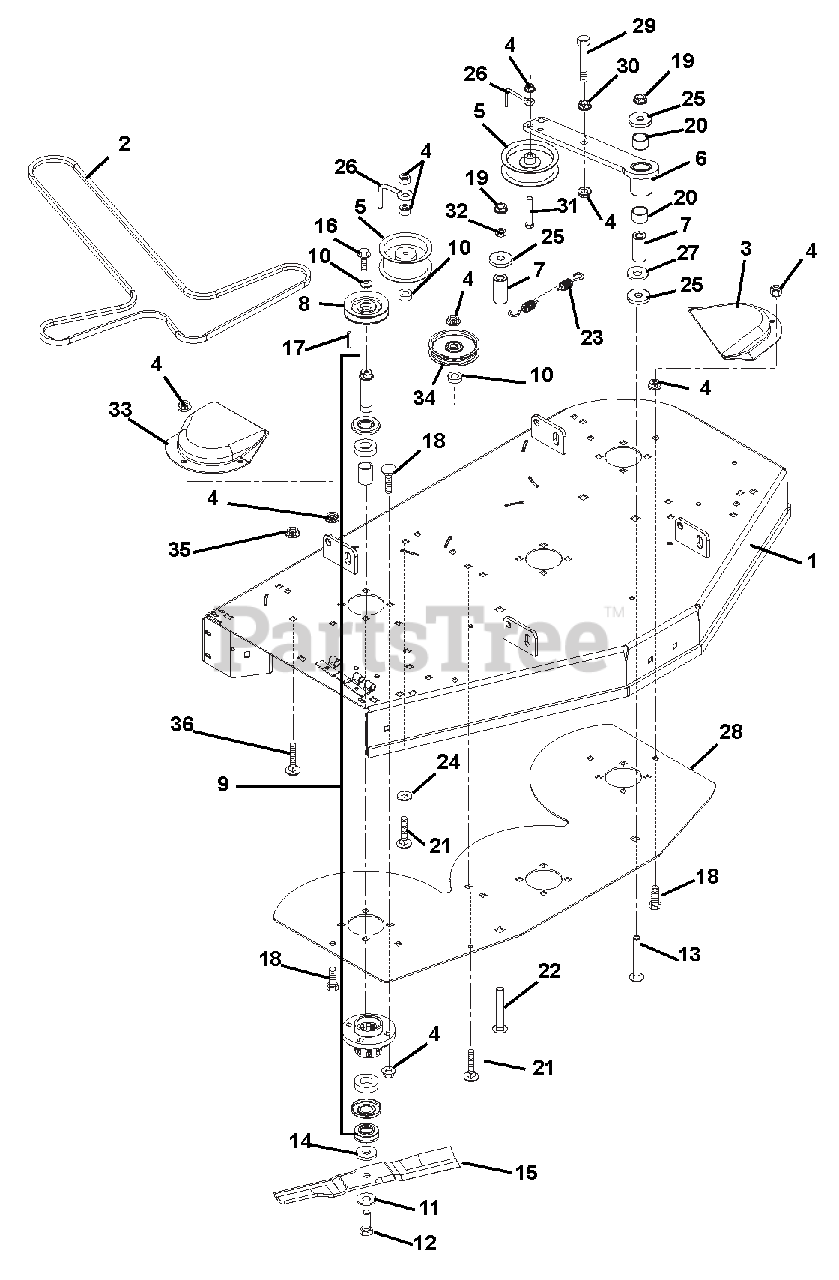

915063 (1540) - Ariens Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler (SN: 020000 & Above) > Parts Diagrams (15) > 40" Mower Deck, Belt, Idlers And Blades

  • Title
00388651

1

WMT,40"DECK

Part# 00388651 (Superseded to 51530400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

07200002

2

V-BELT, HA-WRAPPED

Part# 07200002

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $48.02

01520100

3

COVER

Part# 01520100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $55.84

06545500

4

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07327100

5

PULLEY, IDLER 4.00

Part# 07327100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

00431851

6

WMT, IDLER PIVOT ARM

Part# 00431851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.98

01581700

7

BSHG, SPCR .502X.997X2.03 PM

Part# 01581700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

01593800

8

SHEAVE, SPINDLE - 4.00 DIA.

Part# 01593800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $50.25

51510000

9

ASSEMBLY, SPINDLE

Part# 51510000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $134.10

06400006

10

WSHR,FLT STL.406X1.50X.245YWZC

Part# 06400006

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06445700

11

WSHR-BLVL .669X1.535X.138

Part# 06445700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05978900

12

BLT-HEX .62-18X1.75 GR8 YWZC

Part# 05978900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06225000

13

@BLT-RDHDSQNK .50-13X3.50 G5YZ

Part# 06225000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06442900

14

@WSHR-FL-STL.688X1.75X.134 YWZ

Part# 06442900

OEM Warranty Repair Part for Ariens

Not available

03498400

15

MOWER BLADE, 13.94"

Part# 03498400

Note: (13.88)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

05974500

16

BLT-HEX .38-16X1.00 YZ GR8

Part# 05974500 (Superseded to 05900013)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06611100

17

KEY, SQ .25 X .38 X .25

Part# 06611100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06224100

18

@BLT-RDHDSQNK .38-16X1.25 G5YZ

Part# 06224100

OEM Warranty Repair Part for Ariens

Not available

06543600

19

@NUT-LK-TOP-FLG .50-13 YWZC

Part# 06543600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05435800

20

BRG, 1.00 X 1.12 X .75

Part# 05435800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06224300

21

@BLT-RDHDSQNK .38-16X2.00 G5YZ

Part# 06224300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06218600

22

@BLT-RDHDSQNK .50-13X3.75 G5YZ

Part# 06218600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

08313300

23

SG-TENS .187X1.50X9.94 WLD 40

Part# 08313300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $39.07

06441900

24

@WSHR-FL-STL.531X1.06X.095YWZC

Part# 06441900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06445000

25

WSHR-FL-STL .515X1.625X.250 YZ

Part# 06445000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00391900

26

BELT FINGER

Part# 00391900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06436400

27

WSHR-FL-STL.511X1.441X.125 YWZ

Part# 06436400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00388751

28

PLATE,40"DOUBLER

Part# 00388751

OEM Warranty Repair Part for Ariens

Not available

05963300

29

@BLT-HEX .38-16X2.00 GR5 YWZC

Part# 05963300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06534900

30

@NUT-SPNLK-FLG .375-16 YWZC

Part# 06534900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05958400

31

@BLT-HEX .38-16X2.50 GR5 YWZC

Part# 05958400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06543300

32

NUT-SPNLK-FLG .50-13 YWZC

Part# 06543300

OEM Warranty Repair Part for Ariens

Not available

00390000

33

BELT COVER

Part# 00390000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $78.20

07300006

34

IDLER, FLAT .38X4.00X1.06

Part# 07300006 (Superseded to 07300039)

OEM Warranty Repair Part for Ariens

Not available

06545400

35

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06212200

36

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18
