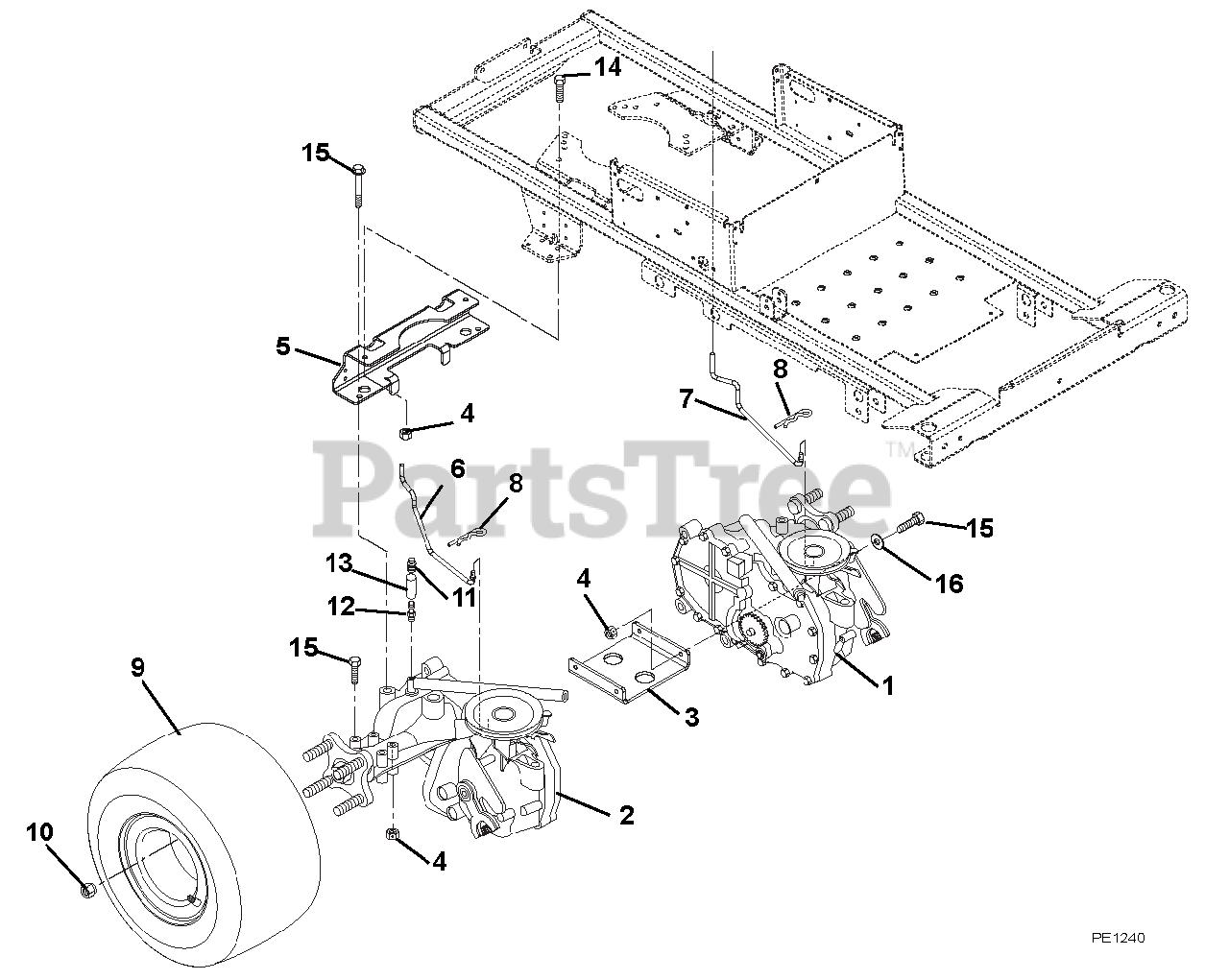

915063 (1540) - Ariens Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler (SN: 020000 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title
1

Ariens 00348100

EZT,LH TRANSAXLE

$889.05

$

Usually ships in 4-12 days

0

2

Ariens 00348000

EZT,RH TRANSAXLE

$886.39

$

Usually ships in 4-12 days

0

3

Ariens 00361351

SUPPORT,TRANSAXLE
(Superseded to 00604151)

$78.54

$

Usually ships in 4-12 days

0

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.24

$

In Stock, Qty 9

0

5

Ariens 00395051

BKT,CLUTCH STOP

$126.77

$

In Stock, only 1 left!

0

6

Ariens 00348200

RH DUMP ROD

$11.12

$

Usually ships in 4-12 days

0

7

Ariens 00348300

LH DUMP ROD

$

$

Not available

8

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.96

$

In Stock, Qty 20+

0

9

Ariens 01588700

ASSY-TIRE 8.5X18 2PLY
(Superseded to 07100234)

Note: (063)

$134.10

$

In Stock, only 1 left!

0

Ariens 07159800

T/WHL ASM 18X6.50-8 2 PLY
(Superseded to 07100310)

Note: (069, 071, 316)

$111.24

$

Usually ships in 4-12 days

0

10

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$2.85

$

In Stock, Qty 20+

0

11

Ariens 07026400

CAP-VENT .50

$10.10

$

In Stock, Qty 11

0

12

Ariens 07026300

FTG-STR .50 O-RING

$12.27

$

In Stock, only 4 left!

0

13

Ariens 01543100

HOSE - VENT

$8.89

$

In Stock, Qty 7

0

14

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.96

$

In Stock, Qty 20+

0

15

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.91

$

In Stock, Qty 5

0

16

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.08

$

In Stock, Qty 20+

0
