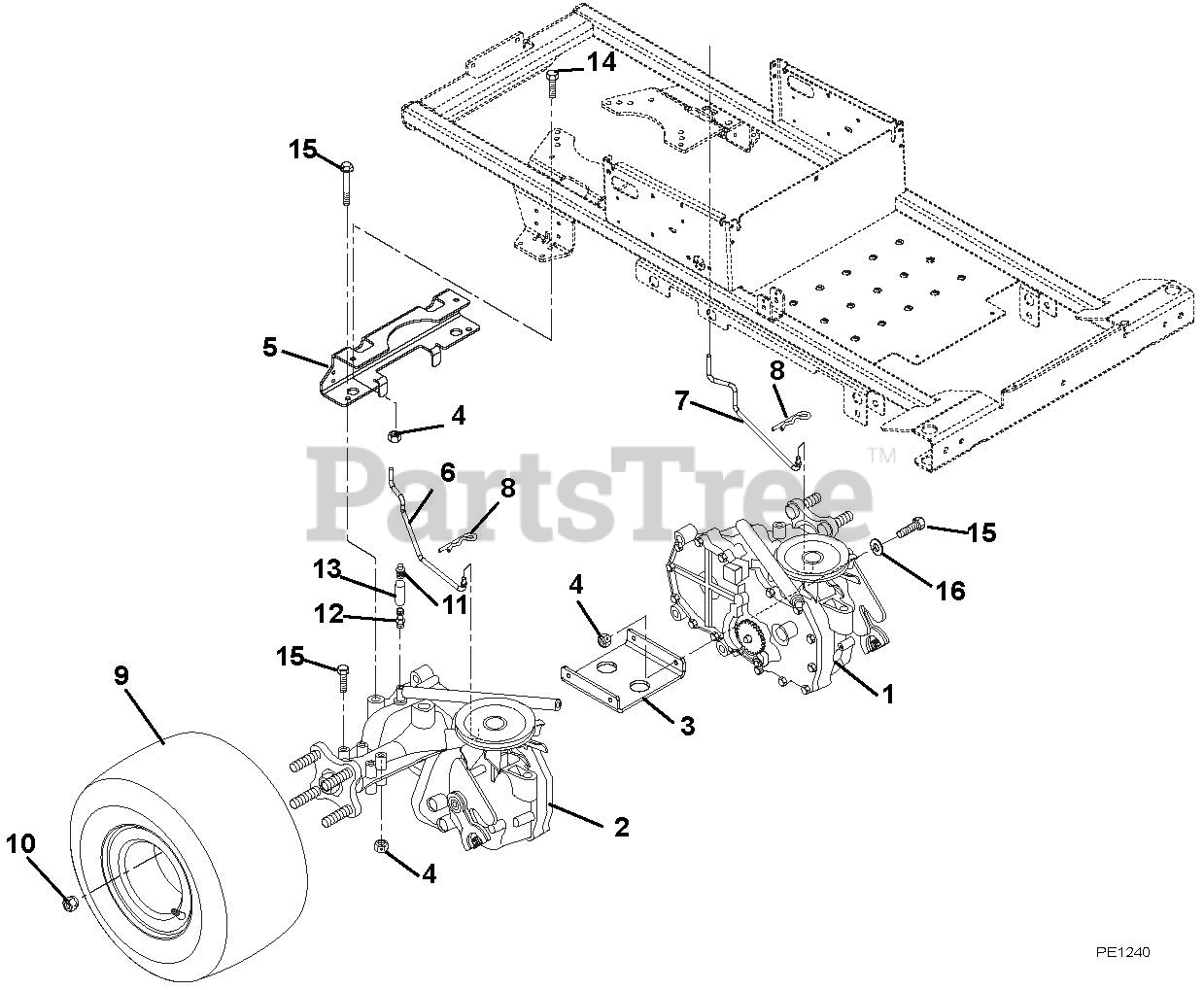

915064 (Mini-ZT 1534) - Gravely 34" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 019999) Transaxle, Dump Valves And Rear Wheels Parts Diagram

34" Zero-Turn Mower, 15hp Kohler

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 00348100

EZT, Left Hand Transaxle

$1055.99

$

Usually ships in 4-12 days

0

2

Gravely 00348000

EZT, Right Hand Transaxle

$966.99

$

Usually ships in 4-12 days

0

3

Gravely 00361351

Support, Transaxle
(Superseded to 00604151)

$93.99

$

Usually ships in 4-12 days

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 00395051

Bracket, Clutch Stop

$135.99

$

In Stock, only 1 left!

0

6

Gravely 00348200

Rod, Dump RH

$

$

Not available

7

Gravely 00348300

Rod, Dump LH

$

$

Not available

8

Gravely 06713500

Pin, Hair .08 x.18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 01588700

Assembly, Tire 8.5 x 18 2 Ply
(Superseded to 07100234)

Note: (915063)

$139.99

$

Usually ships in 4-12 days

0

9

Gravely 07159800

Assembly, Tire 18 x 6.50-8 2 Ply
(Superseded to 07100310)

Note: (915052, 064)

$116.99

$

Usually ships in 4-12 days

0

10

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07026400

Cap, Vent .50

$17.99

$

In Stock, only 2 left!

0

12

Gravely 07026300

Fitting, Straight .50

$26.99

$

In Stock, only 2 left!

0

13

Gravely 01543100

Hose, Vent

$9.99

$

In Stock, only 2 left!

0

14

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

15

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 06439100

Washer, Flat Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0
