915065 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kohler (SN: 010000 & Above) Steering Controls EZT Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kohler

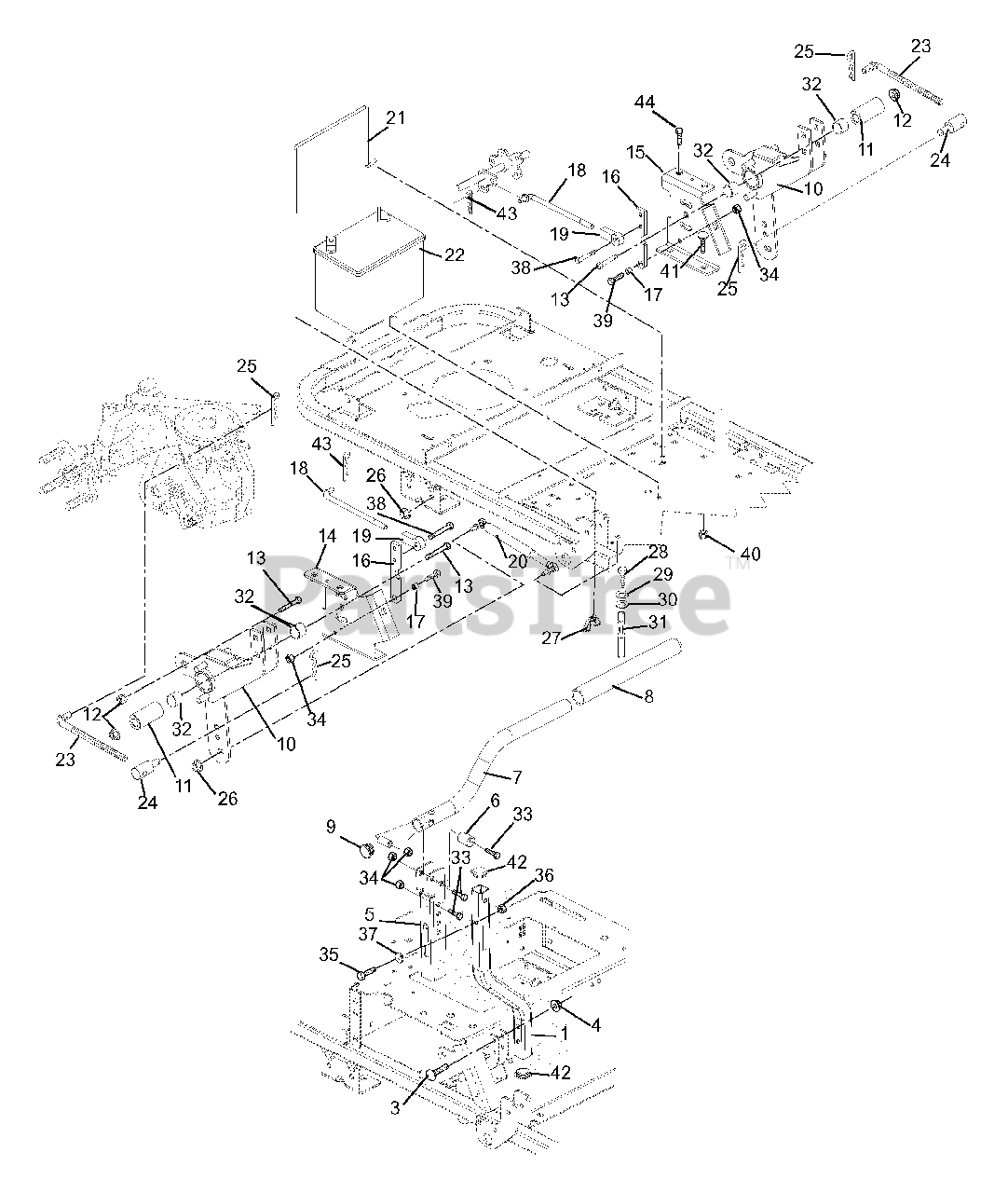

Steering Controls EZT Parts Diagram

  • Title

1

Ariens 00361751

CONTROL ARM

$

$

Not available

2

Ariens 00166800

CAPLUG SQR 1-14-20

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

4

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00362651

CHANNEL, HANDLEBAR ADJUSTMENT

$

$

Not available

6

Ariens 00372300

BSHG,ECCEN .328X.750X1.01 PM

$10.99

$

In Stock, Qty 12

0

7

Ariens 00362851

HANDLEBAR

$

$

Not available

8

Ariens 01570000

GRIP - HANDLEBAR

$17.99

$

In Stock, only 2 left!

0

9

Ariens 07533300

CAPLUG, HANDLEBAR

$2.49

$

In Stock, only 3 left!

0

10

Ariens 00359651

CONTROL WELDMENT
(Superseded to 00371900)

$193.99

$

Usually ships in 4-12 days

0

11

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, Qty 10

0

14

Ariens 00359800

WMT, CONTROL RH

$

$

Not available

15

Ariens 00359700

WMT, CONTROL LH

$

$

Not available

16

Ariens 00383200

BRACKET, NEUTRAL STOP

$36.99

$

Usually ships in 4-12 days

0

17

Ariens 00359900

BSHG, SPCR .330X.500X.385

$

$

Not available

18

Ariens 00365100

LINK, BRAKE ROD

$34.99

$

In Stock, only 1 left!

0

19

Ariens 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

20

Ariens 00188700

DAMPER

$82.99

$

In Stock, only 2 left!

0

21

Ariens 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

22

Ariens 01554800

BATTERY, 300 CCA 10U1L

Note: (12 Volt, 330 CCA, 50 Min. Reserve Cap.)

$

$

Not available

23

Ariens 00186900

LINK,WIREFORM

$

$

Not available

24

Ariens 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

25

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

26

Ariens 06500007

NUT, TOP LOCK FLG 8X1.25 YWZC

$2.49

$

Usually ships in 4-12 days

0

27

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

28

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

29

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

31

Ariens 00187100

ROD

$61.99

$

In Stock, Qty 5

0

32

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 20+

0

33

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

34

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

36

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

37

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, Qty 9

0

38

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

39

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

40

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

42

Ariens 00166800

CAPLUG SQR 1-14-20

$3.99

$

Usually ships in 4-12 days

0

43

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 7

0

44

Ariens 05900016

SCR-CAP .38-16X2 HSHD PRECT 30
(Superseded to 06000001)

$

$

Not available
