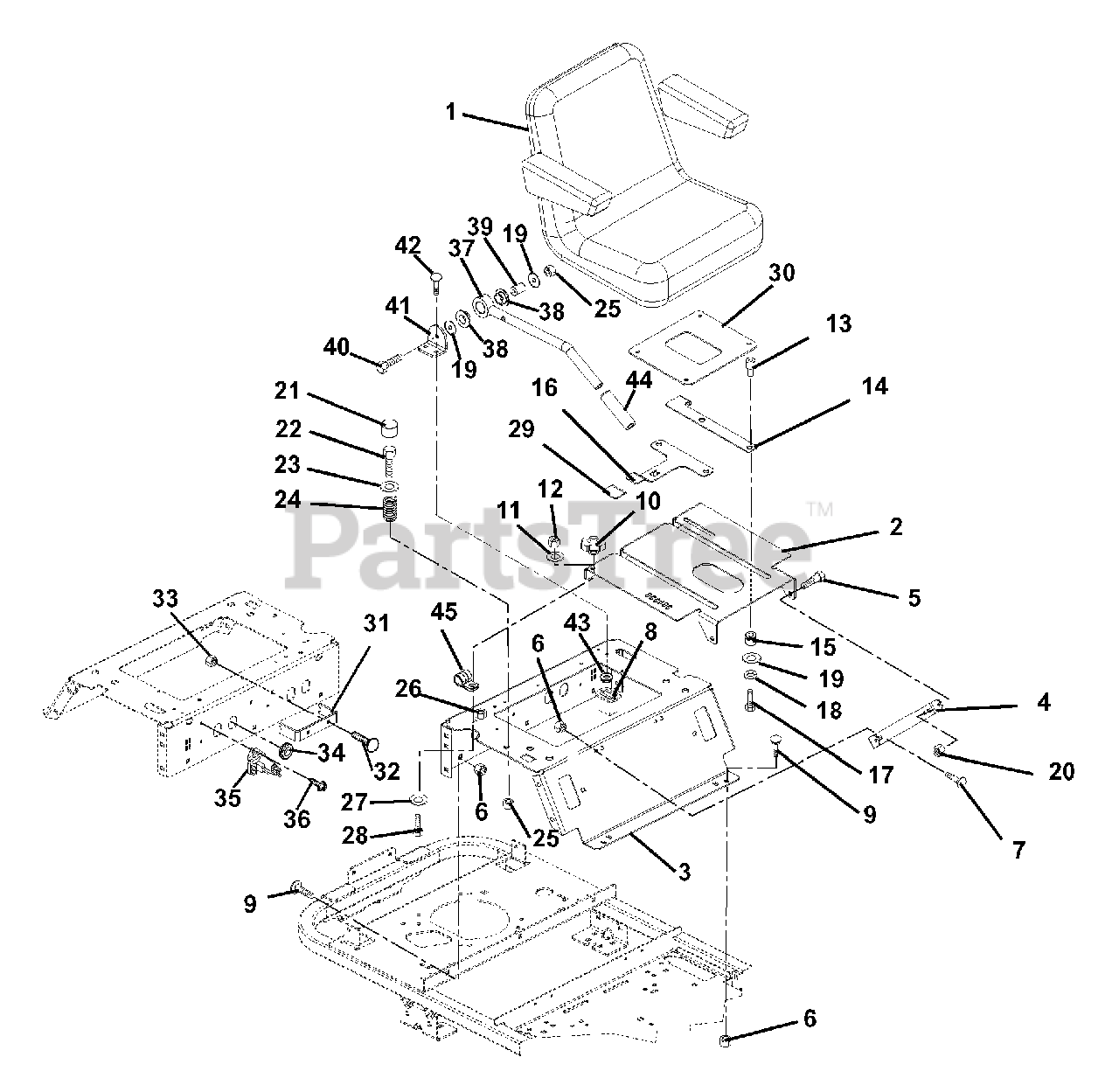

915067 (1740) - Ariens Zoom 40" Zero-Turn Mower, 17hp Kohler (SN: 010000 & Above) Seat And Seat Support Parts Diagram

Zoom 40" Zero-Turn Mower, 17hp Kohler

Seat And Seat Support Parts Diagram

  • Title

1

Ariens 00190900

SEAT, HIGH BACK 2805 SERIES

Note: (055, 057, 059, 067, 501)

$

$

Not available

Ariens 01599200

SEAT, TS2500 MICHIGAN W/ARM.
(Superseded to 00366300)

Note: (065, 502)

$

$

Not available

2

Ariens 00182751

SEAT PLATE

$

$

Not available

3

Ariens 00360151

SEAT SUPPORT

$

$

Not available

4

Ariens 00174151

BRACKET, SEAT PLATE

$

$

Not available

5

Ariens 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, Qty 11

0

6

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

8

Ariens 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

Note: (055, 057, 059, 067, 501)

$63.99

$

Usually ships in 4-12 days

0

Ariens 00539300

PLUG, HOUR METER

Note: (065, 502)

$10.99

$

Usually ships in 4-12 days

0

9

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

10

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

11

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 1 left!

0

12

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 00182100

SPACER, SEAT TOP

$

$

Not available

14

Ariens 00181351

SEAT STOP

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 00183100

SPACER, SEAT BOTTOM

$22.99

$

Usually ships in 4-12 days

0

16

Ariens 00183200

LEVER, SEAT ADJUSTMENT

$

$

Not available

17

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.99

$

In Stock, Qty 11

0

20

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

22

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

23

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 1 left!

0

24

Ariens 00571600

SG. COMP 2.9L X 2.02OD 200LB

$35.99

$

Usually ships in 4-12 days

0

25

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

26

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06221300

@BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

$6.99

$

In Stock, only 1 left!

0

29

Ariens 00189000

GRIP

$

$

Not available

30

Ariens 00250751

SEAT SUPPORT PLATE

$45.99

$

Usually ships in 4-12 days

0

31

Ariens 00362151

BRAKE ROD SUPPORT

$

$

Not available

32

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

33

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

34

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 03679000

SOLENOID
(Superseded to 59223400)

Note: (065, 067, 502)

$63.99

$

In Stock, Qty 20+

0

36

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

Note: (065, 067, 502)

$1.49

$

In Stock, Qty 8

0

37

Ariens 00379700

WMT, PARK BRAKE

$

$

Not available

38

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.99

$

Usually ships in 4-12 days

0

39

Ariens 09235400

SPACER .328 X .76 X 1.01

$21.99

$

Usually ships in 4-12 days

0

40

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

41

Ariens 00379400

BRKT, BRAKE HANDLE PIVOT

$

$

Not available

42

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

43

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

44

Ariens 00380800

GRIP

$

$

Not available

45

Ariens 06908200

CLAMP, CUSHIONED STEEL

Note: (055, 057, 059)

$6.49

$

Usually ships in 4-12 days

0
