915069 (1534) - Ariens Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Steering Controls Parts Diagram

Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler

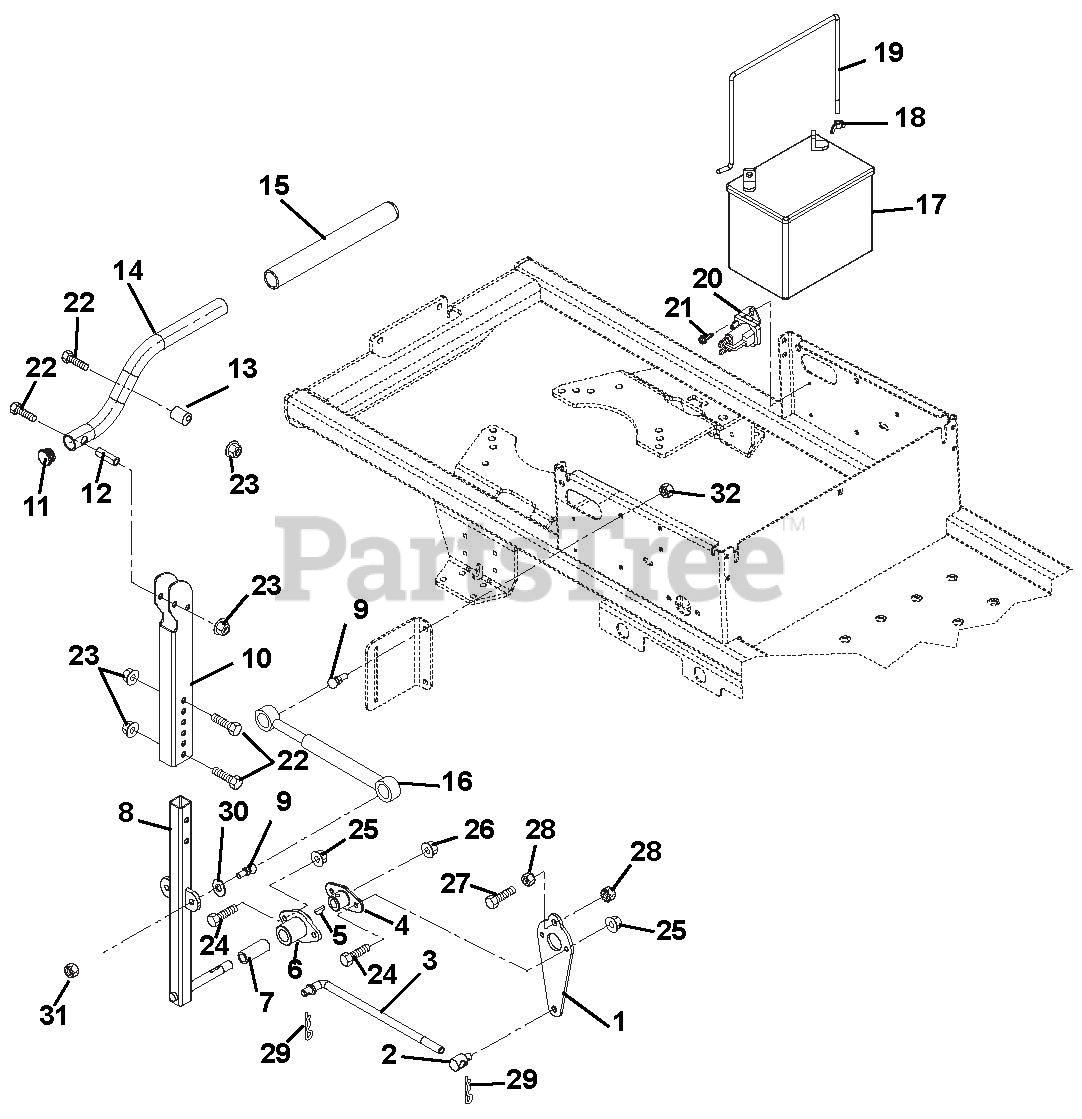

Steering Controls Parts Diagram

  • Title

1

Ariens 00292051

LINK,CONTROL

$

$

Not available

2

Ariens 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

3

Ariens 00292100

LINK,WIREFORM

$

$

Not available

4

Ariens 01525500

ARM, SPEED CONTROL

$21.99

$

Usually ships in 4-12 days

0

5

Ariens 06608600

KEY-WDRF .125X.75

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 00354500

BUSHING,FLANGED

$

$

Not available

7

Ariens 00354600

BUSHING,1/2X3/4X1-7/8LG

$

$

Not available

8

Ariens 00289551

WMT,LOWER HANDLEBAR

$

$

Not available

9

Ariens 03652200

STUD- BALL

$3.99

$

In Stock, Qty 20+

0

10

Ariens 00388051

CHANNEL,UPPER HANDLEBAR

$

$

Not available

11

Ariens 07533300

CAPLUG, HANDLEBAR

$2.99

$

In Stock, only 3 left!

0

12

Ariens 00364900

BSHG, SPCR .330X.500X1.01 PM

$7.49

$

In Stock, only 2 left!

0

13

Ariens 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, Qty 10

0

14

Ariens 00354951

HANDLE BAR

$

$

Not available

15

Ariens 01570000

GRIP - HANDLEBAR

$17.99

$

In Stock, only 2 left!

0

16

Ariens 09273400

DAMPER, CONTROL

$73.99

$

In Stock, Qty 20+

0

17

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

18

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, only 2 left!

0

19

Ariens 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

20

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

21

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 8

0

22

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

23

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

25

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0

26

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 4 left!

0

28

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 5

0

30

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
