915069 (1534) - Ariens Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 019999) 34" Mower Deck, Belt, Idlers, Blades And Baffles Parts Diagram

Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler

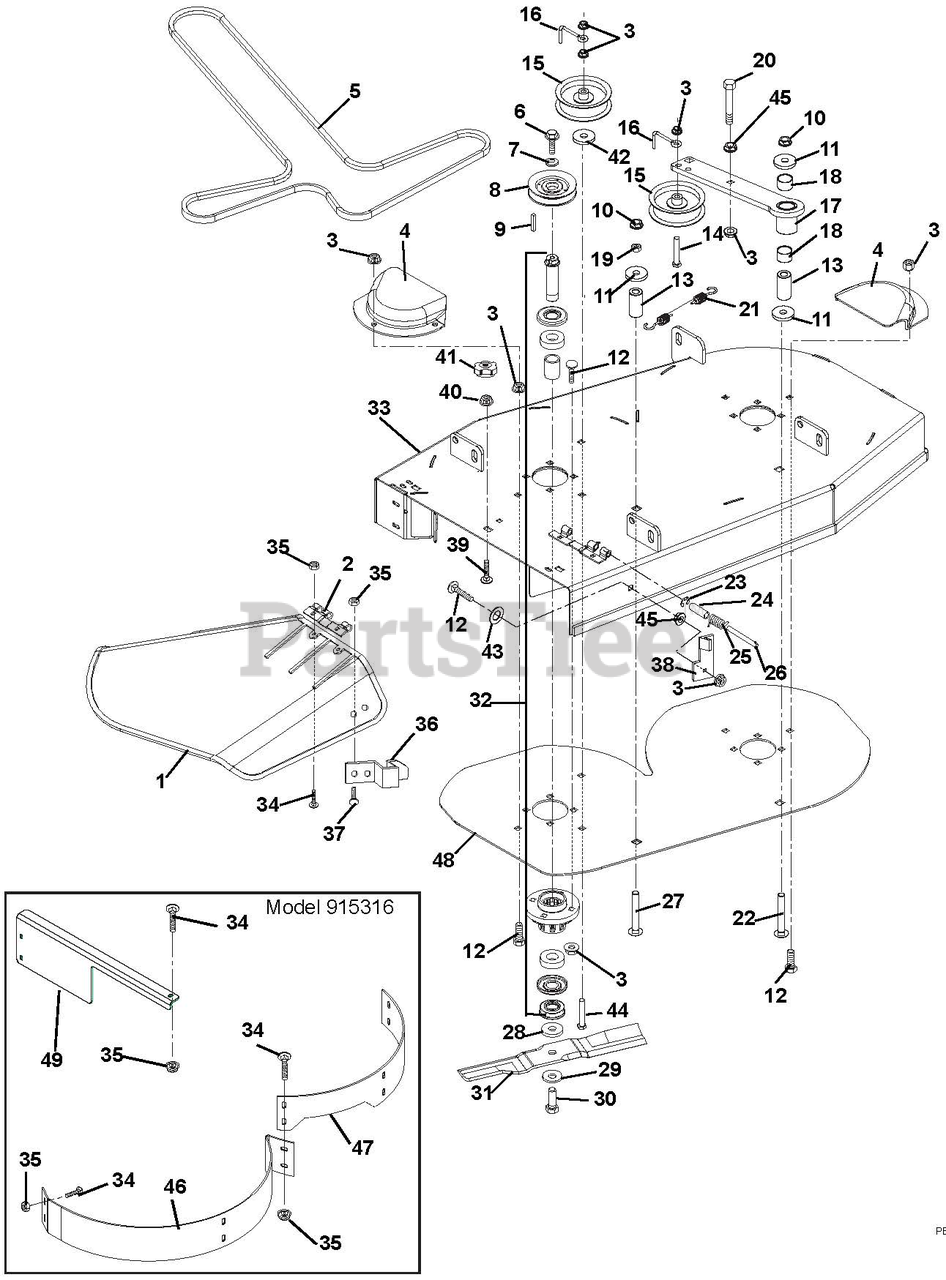

34" Mower Deck, Belt, Idlers, Blades And Baffles Parts Diagram

  • Title

1

Ariens 00348700

DISCHARGE CHUTE
(Superseded to 01585500)

$80.99

$

In Stock, only 4 left!

0

2

Ariens 02709551

HINGE PLATE

$28.99

$

In Stock, only 3 left!

0

3

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 00387800

BELT COVER

$44.99

$

Usually ships in 4-12 days

0

5

Ariens 07200015

V-BELT, HA-WRAPPED

$74.99

$

In Stock, only 4 left!

0

6

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

8

Ariens 01610400

SHEAVE, 4.25 DIA A-SECTION

$46.99

$

In Stock, only 1 left!

0

9

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, only 1 left!

0

10

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

12

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

13

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

14

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$40.99

$

In Stock, Qty 17

0

16

Ariens 03648300

FINGER - BELT

$22.99

$

In Stock, only 3 left!

0

17

Ariens 00431851

WMT, IDLER PIVOT ARM

$

$

Not available

18

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

19

Ariens 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$46.99

$

In Stock, only 2 left!

0

22

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 19

0

23

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

24

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$6.49

$

In Stock, only 4 left!

0

25

Ariens 08307200

SG-TORS .095X.50X 1.0

$21.99

$

Usually ships in 4-12 days

0

26

Ariens 03624200

PIN

$54.99

$

In Stock, only 1 left!

0

27

Ariens 06218600

@BLT-RDHDSQNK .50-13X3.75 G5YZ

$8.49

$

Usually ships in 4-12 days

0

28

Ariens 06442900

@WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, only 4 left!

0

29

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

30

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

31

Ariens 08861600

BLADE

Note: (915061, 069)

$23.99

$

In Stock, Qty 20+

0

31

Ariens 08866800

BLD,MULCHING 50" MWR

Note: (915316)

$33.99

$

In Stock, Qty 20+

0

32

Ariens 51510000

ASSEMBLY, SPINDLE

$233.99

$

In Stock, Qty 20+

0

33

Ariens 00290151

34" MZ/MZT DECK

$725.99

$

Usually ships in 4-12 days

0

34

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (915061, 069)

$1.49

$

Usually ships in 4-12 days

0

34

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (915316)

$1.49

$

Usually ships in 4-12 days

0

35

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (915061, 069)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (915316)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 01597751

FLAT SPRING

$21.99

$

Usually ships in 4-12 days

0

37

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 01599151

BRACKET, CHUTE LOCK

$35.99

$

Usually ships in 4-12 days

0

39

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.99

$

Usually ships in 4-12 days

0

40

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

41

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

42

Ariens 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, Qty 16

0

43

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

44

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 16

0

45

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

46

Ariens 00348851

BAFFLE,34"MULCH RH

Note: (915316)

$70.99

$

Usually ships in 4-12 days

0

47

Ariens 00348951

BAFFLE,34"MULCH LH

Note: (915316)

$70.99

$

Usually ships in 4-12 days

0

48

Ariens 00385451

PLATE,34" DOUBLER

$

$

Not available

49

Ariens 00398951

BAFFLE,CE DISCHARGE

Note: (915316)

$

$

Not available
