915069 (1534) - Ariens Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 019999) Seat And Support Parts Diagram

Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler

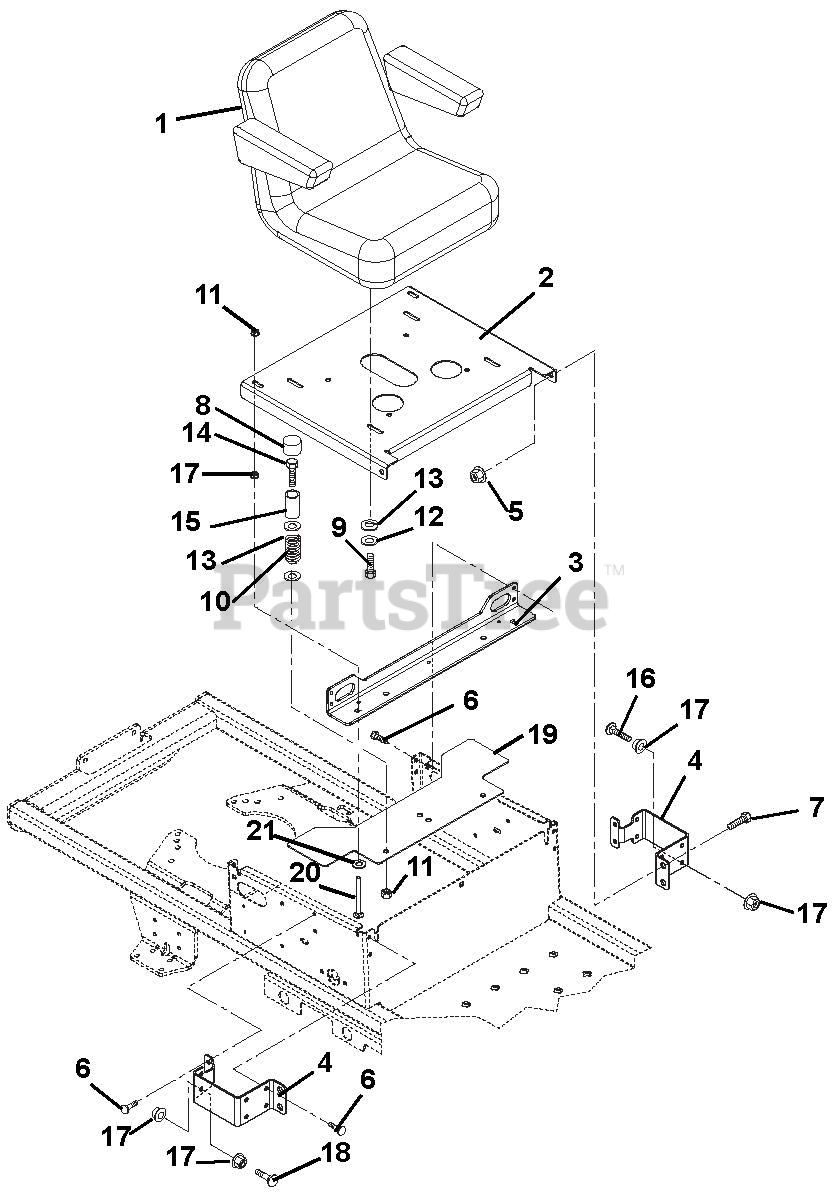

Seat And Support Parts Diagram

  • Title

1

Ariens 00366300

SEAT,V-2505 MICHIGAN W/ARM

$

$

Not available

2

Ariens 00288751

SEAT PLATE

$

$

Not available

3

Ariens 00288851

BKT,SEAT SPRING

$

$

Not available

4

Ariens 00350051

BKT,SEAT PIVOT

$

$

Not available

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, Qty 11

0

8

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

9

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

10

Ariens 00571600

SG. COMP 2.9L X 2.02OD 200LB

$35.99

$

Usually ships in 4-12 days

0

11

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, only 2 left!

0

15

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$6.49

$

In Stock, only 4 left!

0

16

Ariens 06219400

@BLT-RDHDSQNK .31-18X2.50 G5YZ
(Superseded to 06200409)

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

19

Ariens 00389351

GUARD,CE FINGER

Note: (915316)

$

$

Not available

20

Ariens 06221300

@BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

Note: (915316)

$6.99

$

In Stock, only 1 left!

0

21

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

Note: (915316)

$1.49

$

In Stock, Qty 20+

0
