915075 (1640) - Ariens Zoom 40" Zero-Turn Mower, 16hp Kohler (SN: 025000 & Above) Mower Deck, Belt, Idlers And Blades S/N 025000 & Up Parts Diagram

Zoom 40" Zero-Turn Mower, 16hp Kohler

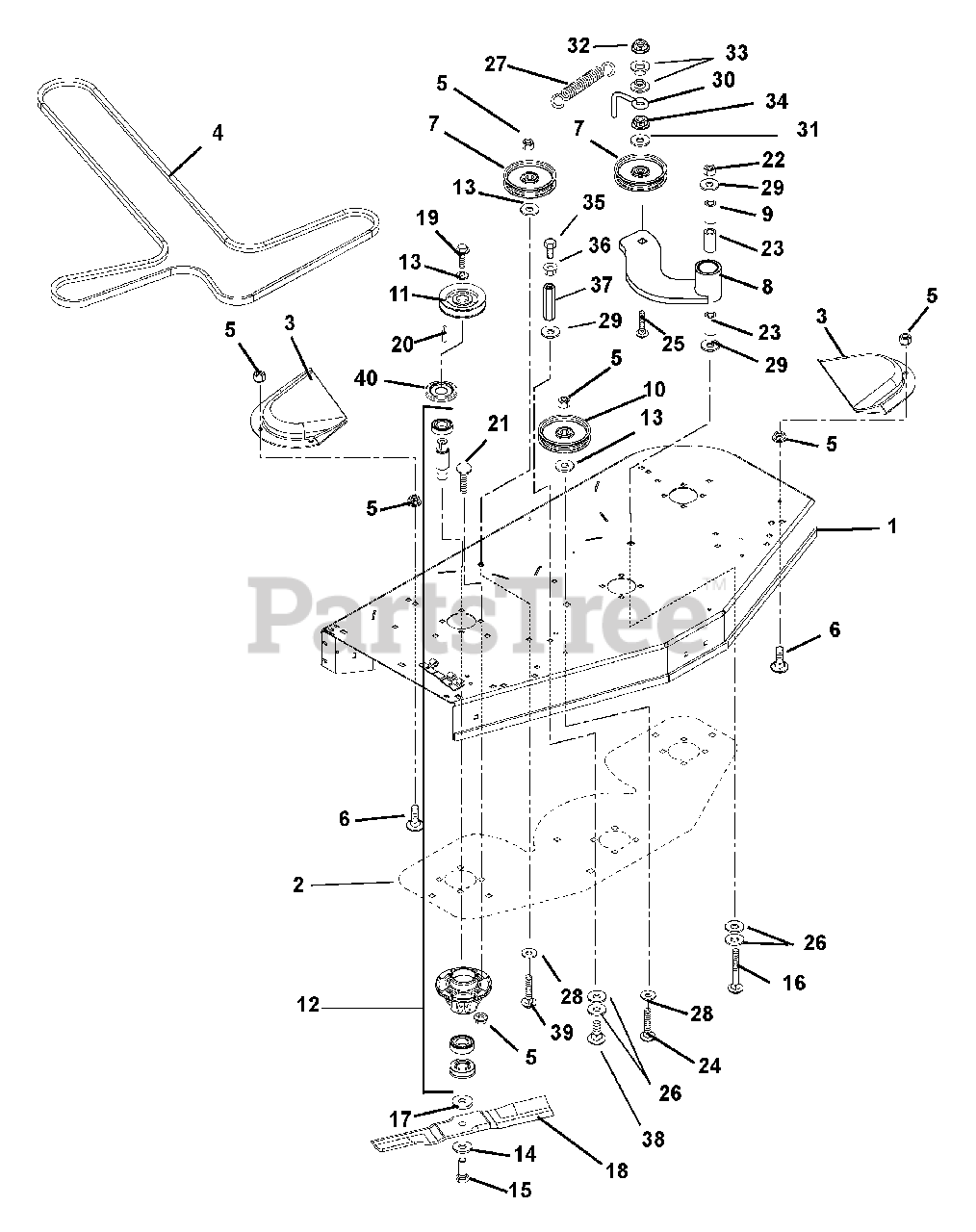

Mower Deck, Belt, Idlers And Blades S/N 025000 & Up Parts Diagram

  • Title

1

Ariens 00428951

WMT, 40" DECK

Note: (915075, 077, 317)

$

$

Not available

1

Ariens 00440351

WMT, 44" DECK
(Superseded to 51529500)

Note: (079, 318)

$822.99

$

Usually ships in 4-12 days

0

1

Ariens 00440451

WMT, 48" DECK
(Superseded to 51522600)

Note: (081)

$831.99

$

Usually ships in 4-12 days

0

1

Ariens 00440551

WMT, 52" DECK
(Superseded to 51529700)

Note: (083)

$460.99

$

Usually ships in 4-12 days

0

2

Ariens 00429551

PLATE, 40" DOUBLER

Note: (915075, 077, 317)

$153.99

$

Usually ships in 4-12 days

0

3

Ariens 01520100

COVER

$69.99

$

In Stock, only 2 left!

0

4

Ariens 07200037

HEX BELT, BB-WRAPPED

Note: (075, 317)

$80.99

$

In Stock, only 4 left!

0

4

Ariens 07219600

V-BELT, HA-WRAPPED

Note: (077)

$83.99

$

In Stock, Qty 20+

0

4

Ariens 07242900

BELT,HA WRAPPED

Note: (079, 318)

$96.99

$

In Stock, only 3 left!

0

4

Ariens 07200022

BELT,HA WRAPPED

Note: (081)

$109.99

$

In Stock, Qty 6

0

4

Ariens 07200023

V-BELT, HA-WRAPPED

Note: (083)

$90.99

$

In Stock, Qty 20+

0

5

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

7

Ariens 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

8

Ariens 00429900

WMT, IDLER ARM

$84.99

$

Usually ships in 4-12 days

0

9

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

10

Ariens 07327100

PULLEY, IDLER 4.00

$38.99

$

In Stock, Qty 9

0

11

Ariens 01593800

SHEAVE, SPINDLE - 4.00 DIA.

Note: (075, 317)

$29.99

$

In Stock, Qty 20+

0

11

Ariens 01599400

SHEAVE, SPINDLE - 4.25 DIA.

Note: (077)

$26.99

$

In Stock, Qty 10

0

11

Ariens 01599500

SHEAVE, SPINDLE - 4.50 DIA.

Note: (079, 318)

$29.99

$

In Stock, Qty 6

0

11

Ariens 01610400

SHEAVE, 4.25 DIA A-SECTION

Note: (081)

$46.99

$

In Stock, only 1 left!

0

11

Ariens 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

Note: (083)

$53.99

$

In Stock, Qty 20+

0

12

Ariens 51510000

ASSEMBLY, SPINDLE

$233.99

$

In Stock, Qty 20+

0

13

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

14

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

15

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

16

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 19

0

17

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

18

Ariens 03498400

MOWER BLADE, 13.94"

Note: (075, 077)

$19.99

$

In Stock, Qty 20+

0

18

Ariens 01593900

BLADE, 15.50"

Note: (079)

$23.99

$

In Stock, only 3 left!

0

18

Ariens 04919100

BLADE, MOWER (16.19")

Note: (081)

$26.99

$

In Stock, Qty 20+

0

18

Ariens 04916400

BLADE, MOWER (18.00")

Note: (083)

$27.99

$

In Stock, Qty 20+

0

18

Ariens 00272900

BLADE, MULCH 15.50"

Note: (318)

$23.99

$

Usually ships in 4-12 days

0

18

Ariens 00272800

BLADE, MULCH 13.88

Note: (317)

$26.99

$

In Stock, Qty 20+

0

19

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 7

0

21

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

22

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

24

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 9

0

25

Ariens 06228100

@BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$4.99

$

In Stock, Qty 19

0

26

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

27

Ariens 08300020

EXTENSION SPRING

$26.99

$

In Stock, Qty 20+

0

28

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

29

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

30

Ariens 00391900

BELT FINGER

$21.99

$

In Stock, Qty 9

0

31

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

32

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.99

$

In Stock, Qty 6

0

34

Ariens 06543900

NUT-SPIRALOCK-FLG .50-13 PLN

$7.49

$

In Stock, Qty 6

0

35

Ariens 05959700

@BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

36

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

37

Ariens 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

38

Ariens 06224700

@BLT-RDHDSQNK .50-13X1.25 G5YZ
(Superseded to 06200325)

$6.99

$

Usually ships in 4-12 days

0

39

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 16

0

40

Ariens 00587400

DUST CAP

$8.49

$

In Stock, Qty 8

0
