915076 (ZT 1840) - Gravely 40" Zero-Turn Mower, 18hp Kohler (SN: 020000 - 034999) Baffles And Chute Parts Diagram

40" Zero-Turn Mower, 18hp Kohler

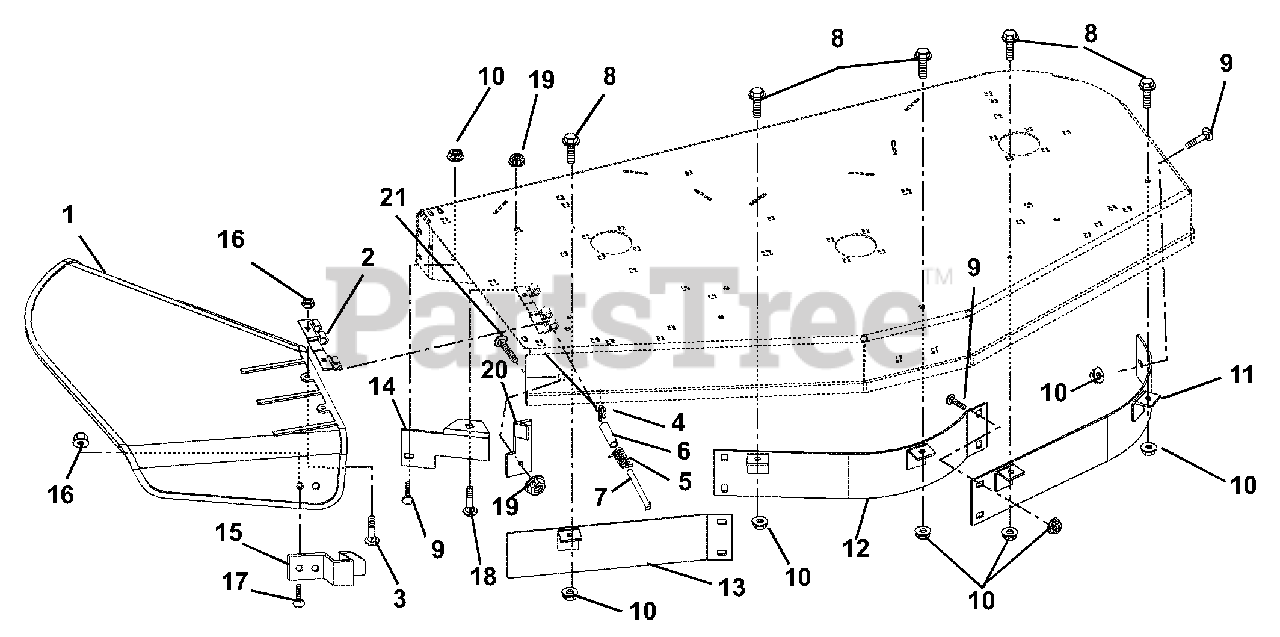

Baffles And Chute Parts Diagram

  • Title

1

Gravely 01585500

DEFLECTOR, CHUTE

$84.99

$

In Stock, Qty 8

0

2

Gravely 02709551

HINGE PLATE

$29.99

$

In Stock, only 4 left!

0

3

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 035996

SG-TORS .095X.50X 1.0
(Superseded to 08307200)

$22.99

$

In Stock, only 4 left!

0

6

Gravely 035997

BSHG-SLV .334 X .502 X 1.437
(Superseded to 02202900)

$6.99

$

In Stock, only 4 left!

0

7

Gravely 00475800

PIN, 5/16 X 5.80"

$10.99

$

In Stock, Qty 19

0

8

Gravely 07049600

BLT-SERHFWH .312-18X.75 YWZC

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 01576151

BAFFLE - LEFT FRONT - 40"

Note: (074, 076)

$77.99

$

Usually ships in 4-12 days

0

Gravely 01572451

BAFFLE - LEFT FRONT - 44"

Note: (078)

$105.99

$

Usually ships in 4-12 days

0

Gravely 01574051

BAFFLE - LEFT FRONT - 48"

Note: (080)

$85.99

$

In Stock, only 1 left!

0

Gravely 01575051

BAFFLE - LEFT FRONT - 52"

Note: (082)

$80.99

$

Usually ships in 4-12 days

0

12

Gravely 01576251

BAFFLE - CENTER FRONT - 40"

Note: (074, 076)

$73.99

$

Usually ships in 4-12 days

0

Gravely 01572551

BAFFLE - CENTER FRONT - 44"

Note: (078)

$81.99

$

In Stock, only 2 left!

0

Gravely 01574151

BAFFLE - CENTER FRONT - 48"

Note: (080)

$71.99

$

Usually ships in 4-12 days

0

Gravely 01575151

BAFFLE - CENTER FRONT - 52"

Note: (082)

$111.99

$

Usually ships in 4-12 days

0

13

Gravely 01576351

BAFFLE - RIGHT FRONT - 40"

Note: (074, 076)

$71.99

$

Usually ships in 4-12 days

0

Gravely 01572651

BAFFLE - RIGHT FRONT - 44"

Note: (078)

$40.99

$

In Stock, only 1 left!

0

Gravely 01574251

BAFFLE - RIGHT FRONT - 48"

Note: (080)

$64.99

$

In Stock, only 1 left!

0

Gravely 01575251

BAFFLE - RIGHT FRONT - 52"

Note: (082)

$59.99

$

Usually ships in 4-12 days

0

14

Gravely 01576751

DEFLECTOR-40"

Note: (074, 076)

$36.99

$

Usually ships in 4-12 days

0

Gravely 01574651

DEFLECTOR-44"/48"

Note: (078, 080)

$37.99

$

Usually ships in 4-12 days

0

Gravely 01575951

DEFLECTOR-52"

Note: (082)

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 01597751

FLAT SPRING

$25.99

$

In Stock, only 2 left!

0

16

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 01599151

BRACKET, CHUTE LOCK

$37.99

$

Usually ships in 4-12 days

0

21

Gravely 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$5.49

$

In Stock, Qty 20+

0
