915078 (ZT 2044) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 035000 & Above) Deck Lift Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

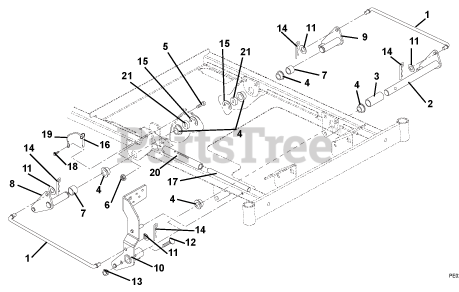

Deck Lift Parts Diagram

  • Title

1

Gravely 00270400

ROD, LIFT

$40.99

$

In Stock, only 1 left!

0

2

Gravely 00186200

WELDMENT,FRONT LIFT

$76.99

$

Usually ships in 4-12 days

0

3

Gravely 00178700

BSHG, SPCR 1.01X1.25X2.63 PM

$7.99

$

Usually ships in 4-12 days

0

4

Gravely 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$13.99

$

In Stock, Qty 14

0

5

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 01591800

BSHG-SPCR 1.032X1.250X.88 PM

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 01591700

WELDMENT, LIFT, REAR - RH

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 01591600

WELDMENT, LIFT, REAR - LH

$52.99

$

Usually ships in 4-12 days

0

10

Gravely 00161600

WMT, FOOT PEDAL

$

$

Not available

11

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05716800

RG-RTNG .822X1.500X.050 TYP E

$

$

Not available

16

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 18

0

17

Gravely 00165100

ROD, LIFT

$

$

Not available

18

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06927100

CBL,HOOD

$15.99

$

In Stock, only 1 left!

0

20

Gravely 00165000

TUBE, LIFT STOP

$

$

Not available

21

Gravely 00182500

BSHG, SPCR 1.032X1.25X.25 PM

$6.49

$

Usually ships in 4-12 days

0
