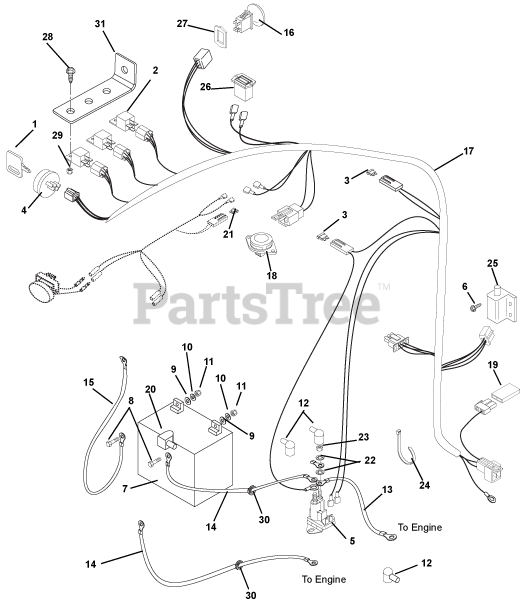

915078 (ZT 2044) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 035000 & Above) Electrical System Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

Electrical System Parts Diagram

  • Title

1

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

4

Gravely 01588300

KEY SWITCH

$33.99

$

In Stock, Qty 20+

0

5

Gravely 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

6

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

11

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

12

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0

13

Gravely 00145900

STARTER CABLE 6.75"

$

$

Not available

14

Gravely 02727900

STARTER CABLE 16"

$41.99

$

Usually ships in 4-12 days

0

15

Gravely 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$23.99

$

In Stock, only 2 left!

0

16

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

17

Gravely 00363400

WIRE HARNESS, ZT XL/ZOOM CE
(Superseded to 00363401)

$213.99

$

Usually ships in 4-12 days

0

18

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 20+

0

19

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

20

Gravely 07505700

INSULATOR

$10.99

$

In Stock, only 2 left!

0

21

Gravely 00580600

FUSE 20AMP

$6.99

$

In Stock, Qty 10

0

22

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

23

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

24

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

25

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

26

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$63.99

$

Usually ships in 4-12 days

0

27

Gravely 00289200

SHIM,PTO SW (DELTA #972301)

$

$

Not available

28

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 00382600

BRACKET, RELAY

$

$

Not available
