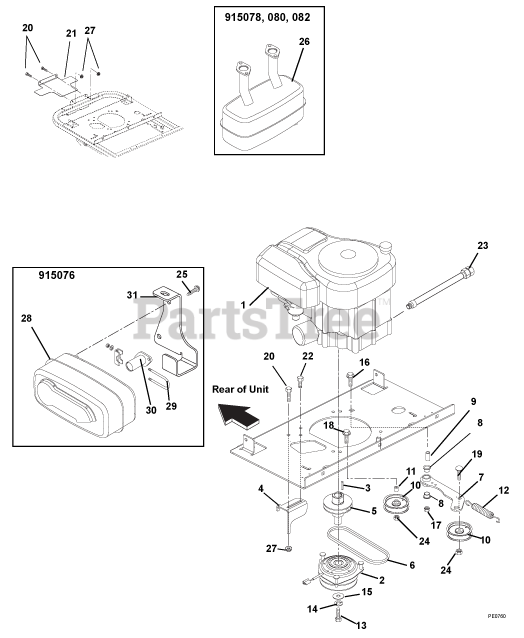

915078 (ZT 2044) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 035000 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 08200104

ENGINE, 18 HP KOHLER SINGLE

Note: (076)

$

$

Not available

Gravely 08200105

ENGINE, 20 HP KOHLER COUR TWIN

Note: (078)

$

$

Not available

Gravely 08200106

ENGINE, 23 HP KOHLER COUR TWIN

Note: (080)

$

$

Not available

Gravely 08200107

ENGINE, 25 HP KOHLER COUR TWIN

Note: (082)

$

$

Not available

2

Gravely 00191700

CLUTCH,ELECTRIC PTO

Note: (076, 078, 080, 082)

$382.99

$

Usually ships in 4-12 days

0

3

Gravely 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 00363751

STOP, CLUTCH

$52.99

$

In Stock, only 2 left!

0

5

Gravely 00363200

EXTENSION, CRANK SHAFT

$

$

Not available

6

Gravely 07241400

BELT,HA WRAPPED

$53.99

$

In Stock, Qty 14

0

7

Gravely 00473500

WMT, IDLER ARM

$131.99

$

In Stock, only 1 left!

0

8

Gravely 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.99

$

In Stock, Qty 20+

0

9

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 6

0

10

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

11

Gravely 00186400

BSHG,SPCR .41 X .75 X .88 PM

$6.49

$

In Stock, only 2 left!

0

12

Gravely 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

13

Gravely 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, Qty 11

0

14

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

16

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06224300

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 11

0

19

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 00276651

HEAT SHIELD, TWIN

Note: (078, 080, 082)

$35.99

$

Usually ships in 4-12 days

0

22

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (076)

$3.99

$

In Stock, Qty 20+

0

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (078, 080, 082)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 00595900

HOSE, HYD .38-15-0K M6N0-F6J0

$46.99

$

Usually ships in 4-12 days

0

24

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (076)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 00391700

MUFFLER, TWIN KOHLER (EES)

Note: (078, 080, 082)

$148.99

$

In Stock, only 4 left!

0

27

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (078, 080, 082)

$1.99

$

In Stock, Qty 20+

0

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: ( 076)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 00435100

MUFFLER, KOHLER SINGLE

Note: (076)

$101.99

$

In Stock, only 4 left!

0

29

Gravely 00255400

MUFFLER CLAMP

Note: (076)

$6.99

$

In Stock, only 3 left!

0

30

Gravely 00253900

WMT, MANIFOLD
(Superseded to 00440000)

Note: (076)

$48.99

$

In Stock, only 4 left!

0

31

Gravely 00432000

BRKT, MUFFLER (KOHLER COURAGE)

Note: (076)

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (076)

$3.99

$

In Stock, Qty 20+

0

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0
