915078 (ZT 2044) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 035000 & Above) Frame, Hood And Footrest Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

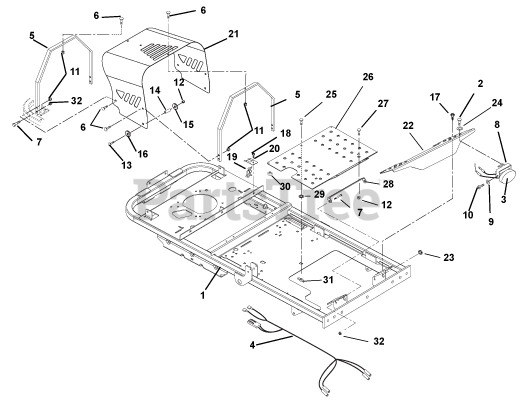

Frame, Hood And Footrest Parts Diagram

  • Title

1

Gravely 00458151

WMT, PIVOTING AXLE FRAME

$

$

Not available

2

Gravely 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 01588200

LIGHT-CONS RIDE ON- SEE B-2124

Note: (Includes Halogen H3 12 Volt 55 Watt Bulb)

$

$

Not available

4

Gravely 00474000

HARNESS, LIGHT

$

$

Not available

5

Gravely 01605151

BRACE, HOOD

$114.99

$

Usually ships in 4-12 days

0

6

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, only 3 left!

0

8

Gravely 01603100

WMT, LIGHT BRACKET

$68.99

$

Usually ships in 4-12 days

0

9

Gravely 06311200

WSHR-LK 4MMX1MM REG CL ZINC

$

$

Not available

10

Gravely 05980400

SCREW-M4X.07X8 SHCS CLZNC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06220500

BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 11

0

14

Gravely 00363800

BSHG, SPCR .390X.625X1.25 PM

$18.99

$

In Stock, only 1 left!

0

15

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

16

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 00366700

HOOD CLIP

$10.99

$

In Stock, Qty 15

0

20

Gravely 00372700

BRACKET, HOOD CLIP

$30.99

$

Usually ships in 4-12 days

0

21

Gravely 00454253

ENGINE HOOD, ZT XL

$

$

Not available

22

Gravely 00457853

FOOTREST

$

$

Not available

23

Gravely 07500010

GROMMET, RUBBER 3/8 I.D.

$

$

Not available

24

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 00457951

PLATE, DECK ACCESS

$

$

Not available

27

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 00458051

BRACKET, DECK ACCESS

$

$

Not available

29

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 9

0

30

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

31

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

32

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
