915078 (ZT 2044) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 035000 & Above) Front Axle, Tires And Bumper Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

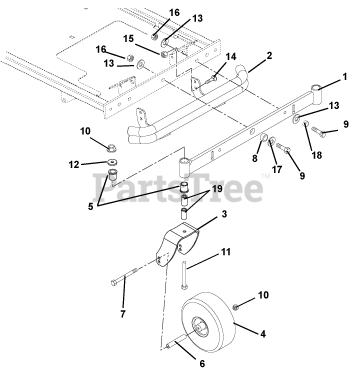

Front Axle, Tires And Bumper Parts Diagram

  • Title

1

Gravely 01600851

WMT, FRONT AXLE

$

$

Not available

2

Gravely 00482151

WMT, BUMPER

$

$

Not available

3

Gravely 00469351

FORK, CASTER- WELDED
(Superseded to 03368551)

$74.99

$

In Stock, Qty 6

0

4

Gravely 01588100

ASSY-TIRE 4 X 11 - 4 PLY
(Superseded to 07100124)

$83.99

$

In Stock, Qty 20+

0

5

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

6

Gravely 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

7

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

8

Gravely 01600400

BUSHING, AXLE PIVOT

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

12

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$4.99

$

In Stock, Qty 20+

0

17

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 13

0

18

Gravely 00271800

SPACER, .750 D X .558 LONG

$18.99

$

Usually ships in 4-12 days

0

19

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$7.99

$

In Stock, Qty 20+

0
