915078 (ZT 2044) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 035000 & Above) Seat And Seat Support Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

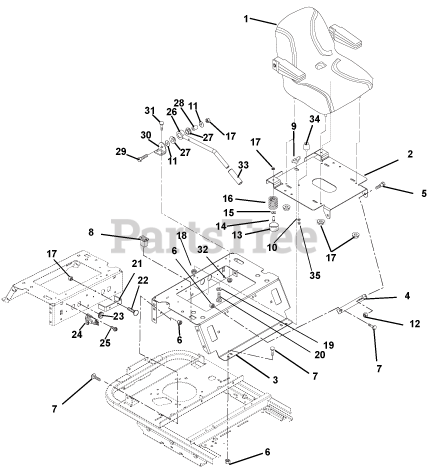

Seat And Seat Support Parts Diagram

  • Title

1

Gravely 00367800

ASSM, SEAT W/REPLA ARMRESTS

$

$

Not available

Gravely 59205800

KIT, COMPLETE ARMREST
(Superseded to 71509500)

Note: (Fits 00367800)

$

$

Not available

2

Gravely 00440651

BRACKET, SEAT PLATE

$

$

Not available

3

Gravely 00360151

SEAT SUPPORT

$

$

Not available

4

Gravely 00174151

BRACKET, SEAT PLATE

$

$

Not available

5

Gravely 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, only 3 left!

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

9

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.99

$

In Stock, Qty 5

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 08300021

SPRING, SEAT

$21.99

$

In Stock, only 4 left!

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$3.49

$

In Stock, Qty 12

0

21

Gravely 00362151

BRAKE ROD SUPPORT

$

$

Not available

22

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

25

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00379700

WMT, PARK BRAKE

$

$

Not available

27

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

In Stock, only 1 left!

0

29

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

30

Gravely 00379400

BRKT, BRAKE HANDLE PIVOT

$

$

Not available

31

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

33

Gravely 00380800

GRIP

$

$

Not available

34

Gravely 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$15.99

$

In Stock, only 2 left!

0

35

Gravely 06534600

NUT-SPNLK-FLG .312-24 YWZC

$

$

Not available
