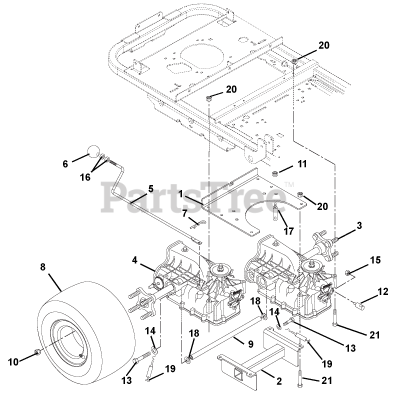

915078 (ZT 2044) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 035000 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 01578051

BKT-TRANS AXLE SUPPORT

$

$

Not available

2

Gravely 01578151

WLDMT-TRANS AXLE BRACE

$

$

Not available

3

Gravely 00386300

IZT-LH (BIDIRECTIONAL RTN)

$

$

Not available

Gravely 51514300

KIT, LH-BRAKE ARM IZT

$54.99

$

In Stock, only 2 left!

0

4

Gravely 00386200

IZT-RH (BIDIRECTIONAL RTN)

$

$

Not available

Gravely 51514200

KIT,RH-BRAKE ARM IZT

$56.99

$

In Stock, Qty 5

0

5

Gravely 01581600

ROD-DUMP IZT

$

$

Not available

6

Gravely 07515900

KNOB, BALL 5/16-18 X 1.5

$22.99

$

In Stock, only 1 left!

0

7

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 01587800

ASSY-TIRE 9.5X18-2PLY
(Superseded to 07100233)

Note: (078, 080, 082)

$174.99

$

In Stock, only 2 left!

0

Gravely 01588700

ASSY-TIRE 8.5X18 2PLY
(Superseded to 07100234)

Note: ( 076)

$139.99

$

Usually ships in 4-12 days

0

9

Gravely 01578200

ROD-AXLE BRACE

$

$

Not available

10

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01568600

ROD PIVOT YWZC

$52.99

$

Usually ships in 4-12 days

0

13

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

17

Gravely 03622900

SHOULDER STUD

$35.99

$

In Stock, only 2 left!

0

18

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 00929200

ADHSV SEALANT (BLUE) 250 ML

$

$

Not available

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0
