915081 (2348) - Ariens Zoom 48" Zero-Turn Mower, 23hp Kohler (SN: 025000 & Above) Frame, Hood And Footrest Parts Diagram

Zoom 48" Zero-Turn Mower, 23hp Kohler

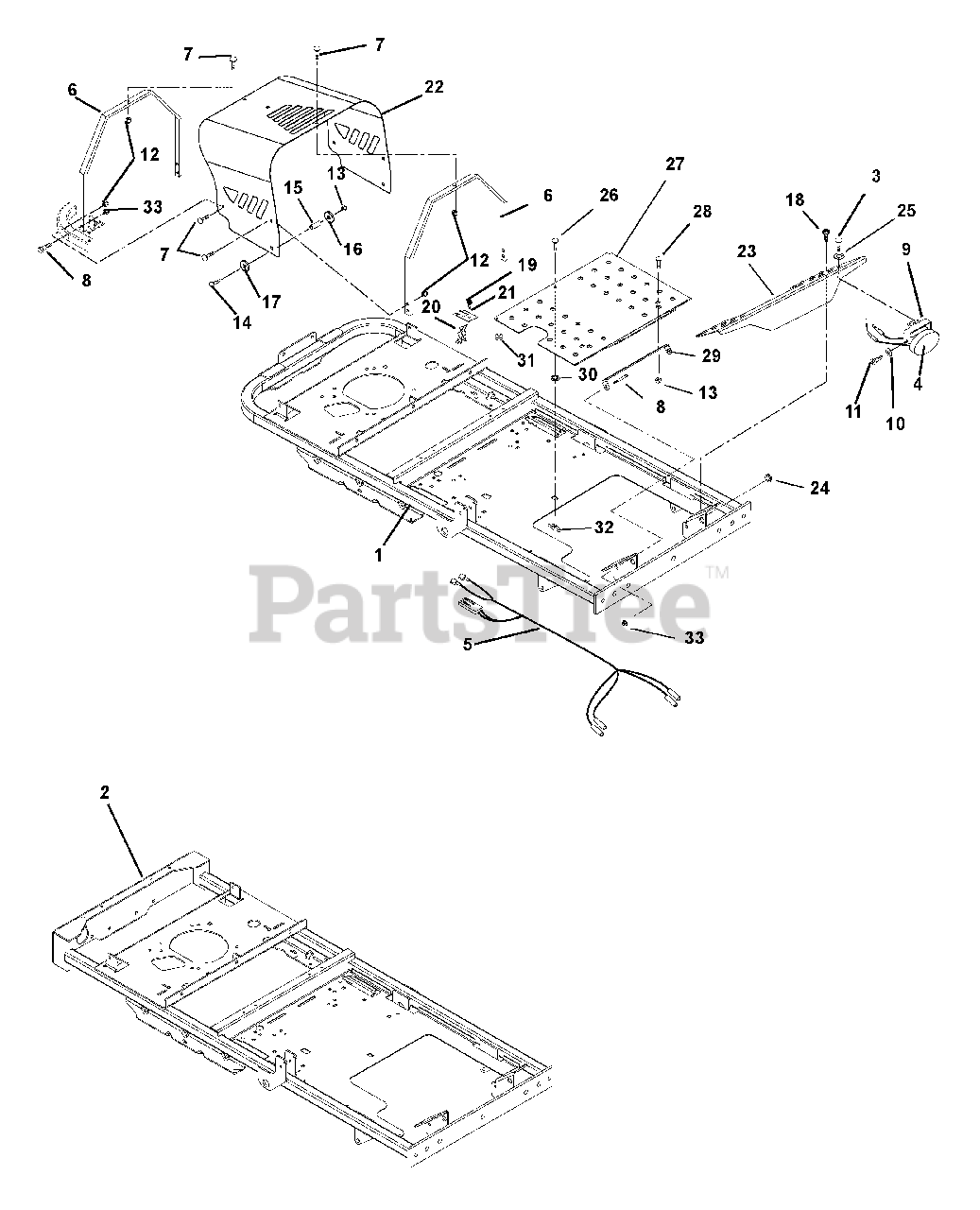

Frame, Hood And Footrest Parts Diagram

  • Title

1

Ariens 00458151

WMT, PIVOTING AXLE FRAME

Note: (079, 081, 083)

$

$

Not available

2

Ariens 00458851

WMT, FRAME (CE PIVOTING)

Note: (317, 318)

$

$

Not available

3

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 01588200

LIGHT-CONS RIDE ON- SEE B-2124

Note: (Includes Halogen H3 12 Volt 55 Watt Bulb)

$

$

Not available

5

Ariens 00474000

HARNESS, LIGHT

$

$

Not available

6

Ariens 01605151

BRACE, HOOD

$114.99

$

In Stock, only 1 left!

0

7

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

9

Ariens 01603100

WMT, LIGHT BRACKET

$41.99

$

Usually ships in 4-12 days

0

10

Ariens 06311200

WSHR-LK 4MMX1MM REG CL ZINC

$

$

Not available

11

Ariens 05980400

SCREW-M4X.07X8 SHCS CLZNC

$1.99

$

In Stock, only 2 left!

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 7

0

15

Ariens 00363800

BSHG, SPCR .390X.625X1.25 PM

$18.99

$

In Stock, only 1 left!

0

16

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 4 left!

0

17

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 00366700

HOOD CLIP

$9.49

$

In Stock, only 3 left!

0

21

Ariens 00372700

BRACKET, HOOD CLIP

$29.99

$

Usually ships in 4-12 days

0

22

Ariens 00454259

ENGINE HOOD, CE ZOOM

$

$

Not available

23

Ariens 00457859

FOOTREST

$

$

Not available

24

Ariens 07500010

GROMMET, RUBBER 3/8 I.D.

$

$

Not available

25

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

27

Ariens 00457951

PLATE, DECK ACCESS

$

$

Not available

28

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

29

Ariens 00458051

BRACKET, DECK ACCESS

$

$

Not available

30

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0

31

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 2 left!

0

32

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$7.99

$

In Stock, Qty 11

0

33

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0
