915084 (ZT 2350) - Gravely 50" Zero-Turn Mower, 23hp Kohler (SN: 001000 & Above) Mower Deck, Belt, Idlers And Blades 50-Inch Parts Diagram

50" Zero-Turn Mower, 23hp Kohler

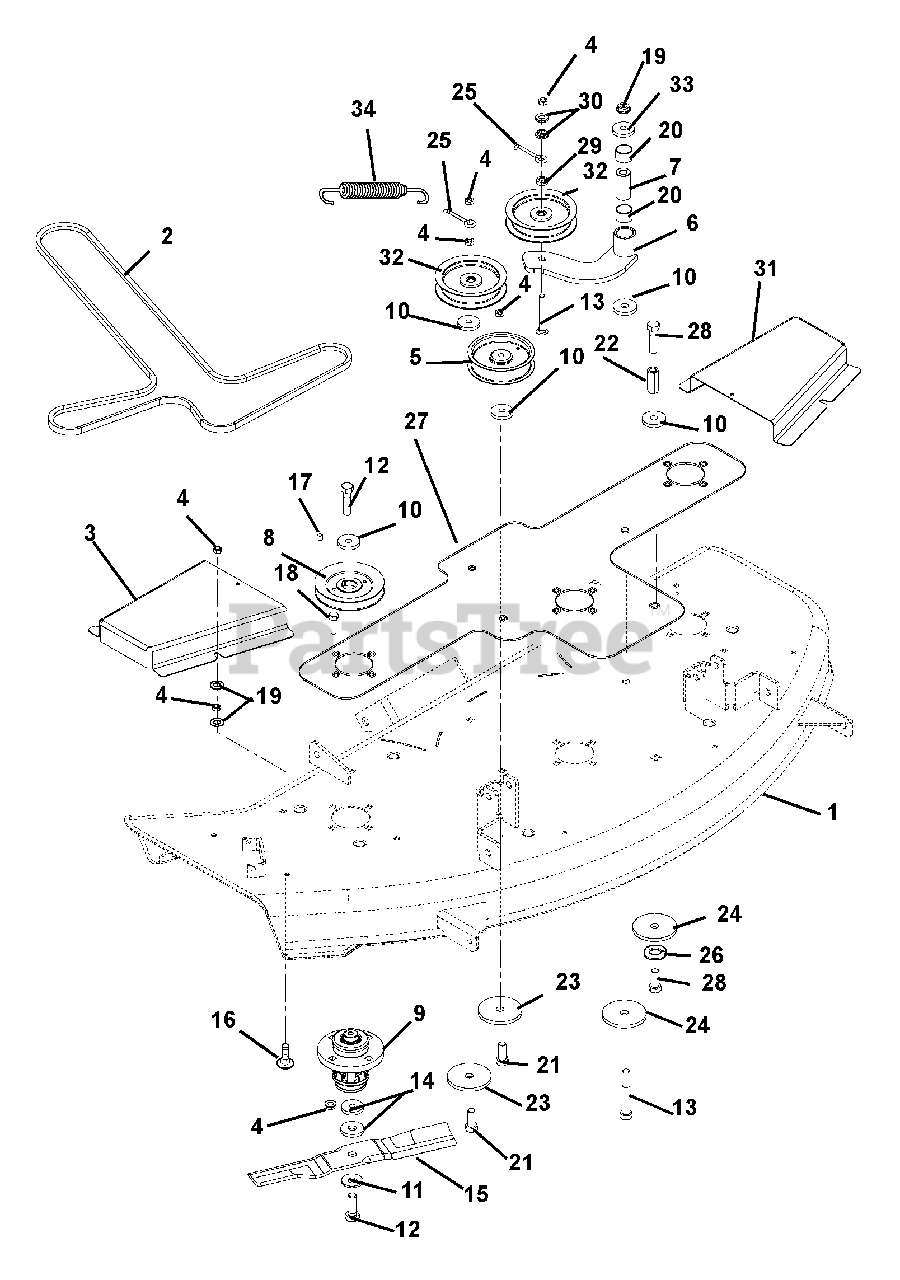

Mower Deck, Belt, Idlers And Blades 50-Inch Parts Diagram

  • Title

1

Gravely 00476851

WELDMENT, ZOOM 50" DECK
(Superseded to 51529200)

$822.99

$

Usually ships in 4-12 days

0

2

Gravely 07200107

V-BELT, A-WRAPPED

$95.99

$

In Stock, Qty 11

0

3

Gravely 00486951

BELT COVER, RIGHT

$51.99

$

In Stock, only 1 left!

0

4

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 07327100

PULLEY, IDLER 4.00

$38.99

$

In Stock, Qty 13

0

6

Gravely 00429900

WMT, IDLER ARM

$84.99

$

Usually ships in 4-12 days

0

7

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

8

Gravely 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

$53.99

$

In Stock, Qty 17

0

9

Gravely 61527600

ASSEMBLY, SPINDLE
(Superseded to 51510000)

$233.99

$

In Stock, Qty 20+

0

10

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

11

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

12

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.99

$

In Stock, Qty 9

0

14

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 08861600

BLADE

$23.99

$

In Stock, Qty 20+

0

16

Gravely 06200008

BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.99

$

In Stock, Qty 7

0

17

Gravely 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

21

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

24

Gravely 06400011

WASHER, FLAT .531X3.000X.25

$18.99

$

Usually ships in 4-12 days

0

25

Gravely 00391900

BELT FINGER

$21.99

$

In Stock, Qty 8

0

26

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00616051

50 DOUBLER PLATE, ZOOM
(Superseded to 51517300)

$193.99

$

Usually ships in 4-12 days

0

28

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

29

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

30

Gravely 05515800

BSHG-FLG .406X.88X.270X.140

$9.99

$

In Stock, Qty 13

0

31

Gravely 00486851

BELT COVER, LEFT

$39.99

$

Usually ships in 4-12 days

0

32

Gravely 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

33

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

34

Gravely 08300020

EXTENSION SPRING

$26.99

$

In Stock, Qty 16

0
