915086 (HVZ 1840) - Gravely 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) Steering Controls Parts Diagram

40" Zero-Turn Mower, 18hp Kohler

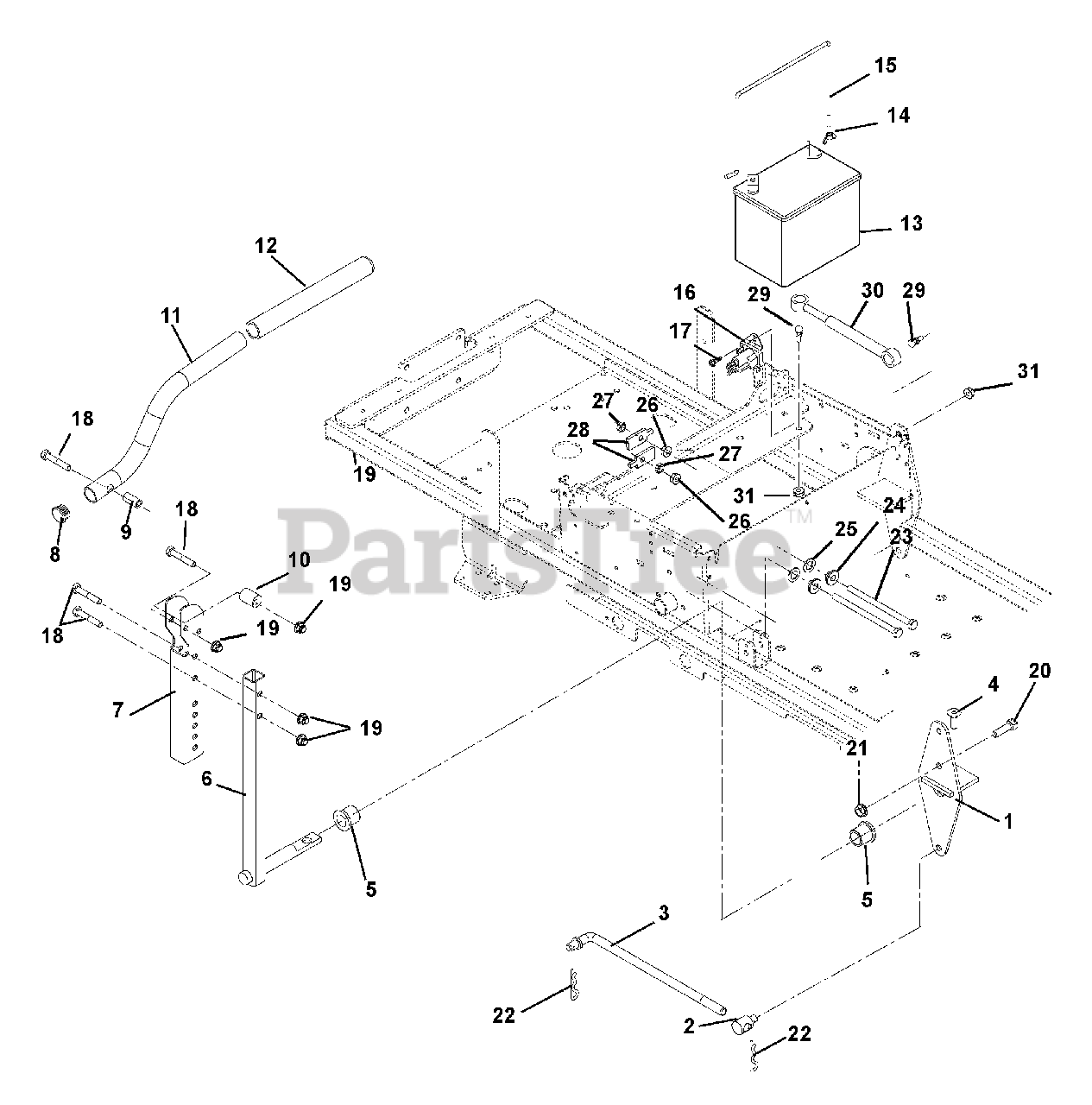

Steering Controls Parts Diagram

  • Title

1

Gravely 00477451

Weldment, Control Link

$

$

Not available

2

Gravely 02493000

Pivot, Rod

$

$

Not available

3

Gravely 00292100

Link, Wireform

$

$

Not available

4

Gravely 05900018

Bolt, .38-16 x 1 FSHCS Plain

$

$

Not available

5

Gravely 01591100

Bushing, 1.00 x .75 x 1.00

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 00477151

Weldment, Control Arm

$

$

Not available

7

Gravely 00481751

Channel, Upper Handlebar

$44.99

$

Usually ships in 4-12 days

0

8

Gravely 07533300

Caplug, Handlebar

$2.49

$

In Stock, only 3 left!

0

9

Gravely 00364900

Bushing

$6.49

$

Usually ships in 4-12 days

0

10

Gravely 00372300

Eccentric

$10.99

$

In Stock, Qty 12

0

11

Gravely 00354951

Handlebar

$

$

Not available

12

Gravely 01570000

Grip, Handlebar

$17.99

$

In Stock, only 2 left!

0

13

Battery, Exide Sealed Maintenance Free U1-250

Battery, Exide Sealed Maintenance Free U1-250

Note: (Purchase replacement locally)

$

$

Not available

14

Gravely 06537500

Nut, Lock Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

15

Gravely 01533400

Battery Rod

$25.99

$

Usually ships in 4-12 days

0

16

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 18

0

17

Gravely 07411600

Screw, Tap .250-20 x .37
(Superseded to 07400125)

$0.99

$

In Stock, Qty 7

0

18

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

19

Gravely 06545400

Nut, 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

20

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

21

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 12

0

22

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 7

0

23

Gravely 05900027

Bolt, Hex 5/16-18 x 5 Grade 2

$

$

Not available

24

Gravely 05514800

Bushing, Flange .312 x .500 x .344 x .880

$3.99

$

In Stock, Qty 16

0

25

Gravely 06441100

Washer, Flat Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, Qty 16

0

26

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

27

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, only 3 left!

0

28

Gravely 00581600

Stop Tab

$10.99

$

Usually ships in 4-12 days

0

29

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, Qty 10

0

30

Gravely 09273400

Damper, Control

$64.99

$

In Stock, Qty 13

0

31

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
