915087 (1840) - Ariens Zoom 40" Zero-Turn Mower, 18hp Kohler (SN: 035000 - 049999) Engine, Exhaust, Belts And Idlers Parts Diagram

Zoom 40" Zero-Turn Mower, 18hp Kohler

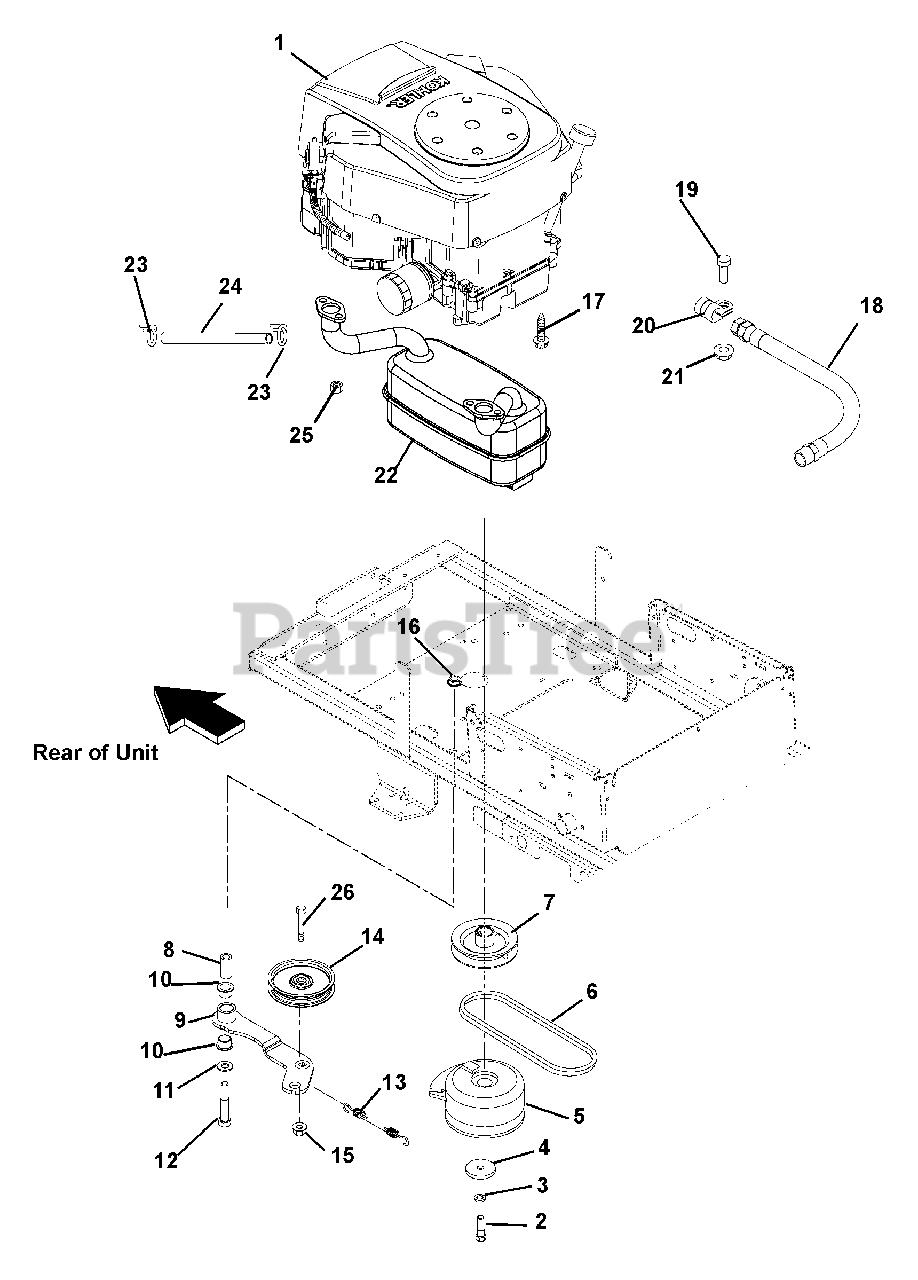

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Ariens 08200117

ENG, 23HP COURAGE TWIN W/GUARD

Note: (085)

$

$

Not available

Ariens 08200204

ENGINE, 18 HP KOHLER SINGLE

Note: (087)

$

$

Not available

2

Ariens 05900026

7/16-20X3 HHCS GR8 YWZC

$6.99

$

Usually ships in 4-12 days

0

3

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 3 left!

0

4

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

5

Ariens 00617400

RMS CLUTCH, ELECTRIC
(Superseded to 03292300)

$382.99

$

Usually ships in 4-12 days

0

6

Ariens 07237900

V-BELT, HA-WRAPPED

$51.99

$

In Stock, Qty 11

0

7

Ariens 00480700

SHEAVE, GROUND DRIVE
(Superseded to 51518400)

$105.99

$

In Stock, only 3 left!

0

8

Ariens 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 11

0

9

Ariens 00604000

WMT, IDLER

$105.99

$

In Stock, only 1 left!

0

10

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.99

$

In Stock, Qty 20+

0

11

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

12

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

13

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

14

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

15

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

18

Ariens 00588700

HOSE, HYD .38-11-0K M6N0-F6J0

$51.99

$

Usually ships in 4-12 days

0

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06900036

CLAMP, CUSHIONED STEEL .75

$6.49

$

Usually ships in 4-12 days

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 00391700

MUFFLER, TWIN KOHLER (EES)

Note: (085)

$148.99

$

In Stock, only 3 left!

0

Ariens 00435800

MUFFLER, WMT (COURAGE)
(Superseded to 03373800)

Note: (087)

$114.99

$

In Stock, only 2 left!

0

23

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 7

0

24

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (085)

$1.49

$

In Stock, Qty 20+

0

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (087)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06500007

NUT, TOP LOCK FLG 8X1.25 YWZC

Note: (085)

$2.99

$

Usually ships in 4-12 days

0

Ariens 06500007

NUT, TOP LOCK FLG 8X1.25 YWZC

Note: (087)

$2.99

$

Usually ships in 4-12 days

0

26

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0
