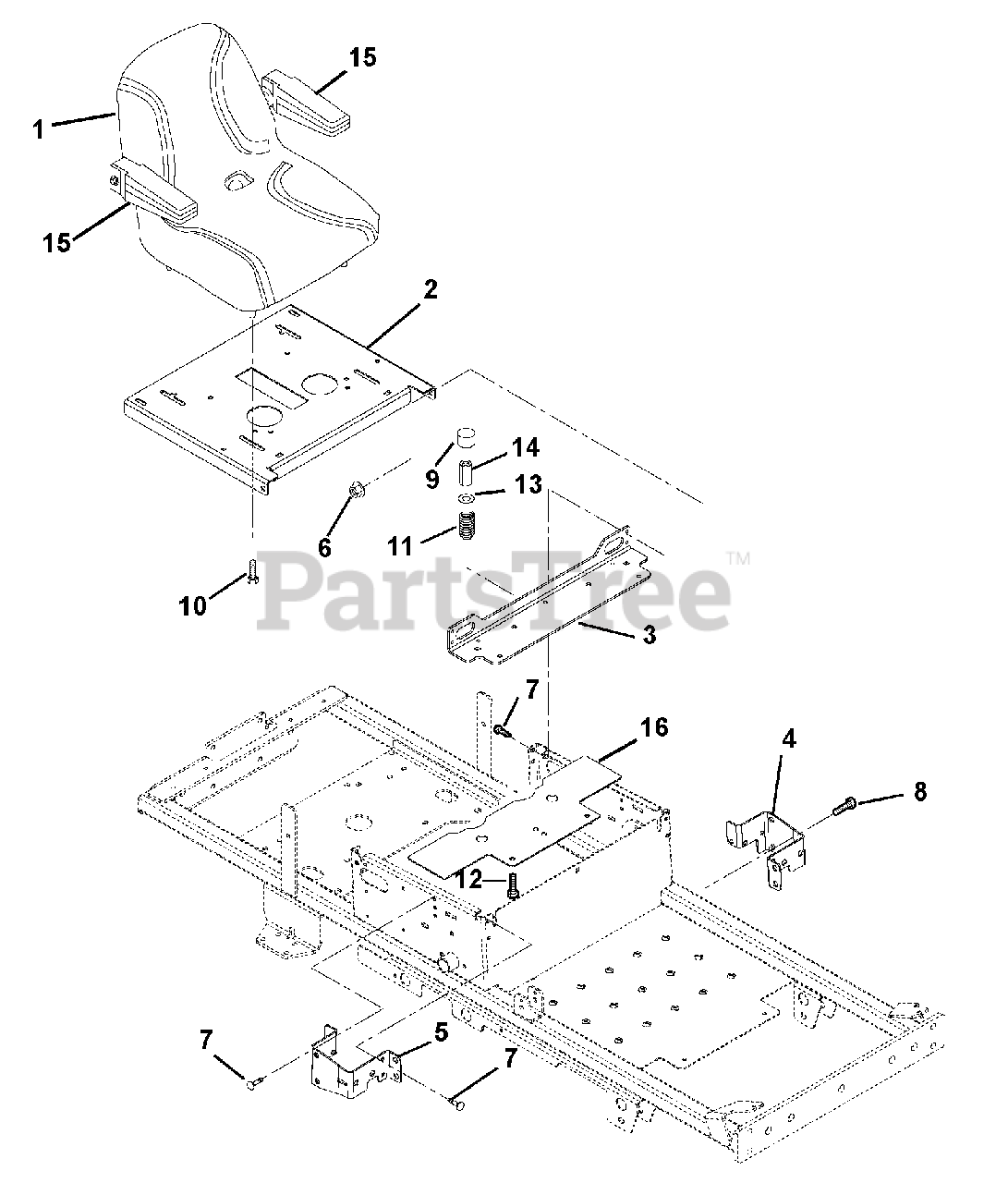

915092 (ZT XL 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Seat And Seat Support Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

Seat And Seat Support Parts Diagram

  • Title

1

Gravely 00367800

Seat Assembly With Replaceable Arm Rests

$

$

Not available

2

Gravely 00288751

Seat Plate

$

$

Not available

3

Gravely 00478351

Bracket, Seat Spring

$

$

Not available

4

Gravely 00652551

Stop, RH Steering

$

$

Not available

5

Gravely 00652451

Stop, LH Steering

$

$

Not available

6

Gravely 06542000

Nut, Locking Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07056700

Bolt, Shoulder .375-16 x 1.50

$3.99

$

In Stock, only 2 left!

0

9

Gravely 00337700

Hub Cap

$2.99

$

In Stock, only 2 left!

0

10

Gravely 05900033

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 07001820)

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 08300021

Spring, Seat

$20.99

$

In Stock, only 1 left!

0

12

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

13

Gravely 06439100

Washer-Flat-Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06500015

Nut, Coupling 5/16-18 x 1
(Superseded to 06500927)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 59204500

Replacement Arm Rest (1 per kit)

Note: (1 per kit)

$

$

Not available

16

Gravely 00676551

Guard, Finger

$

$

Not available
