915099 (ZT 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) 34" Deck, Belts, Idlers, Blades Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

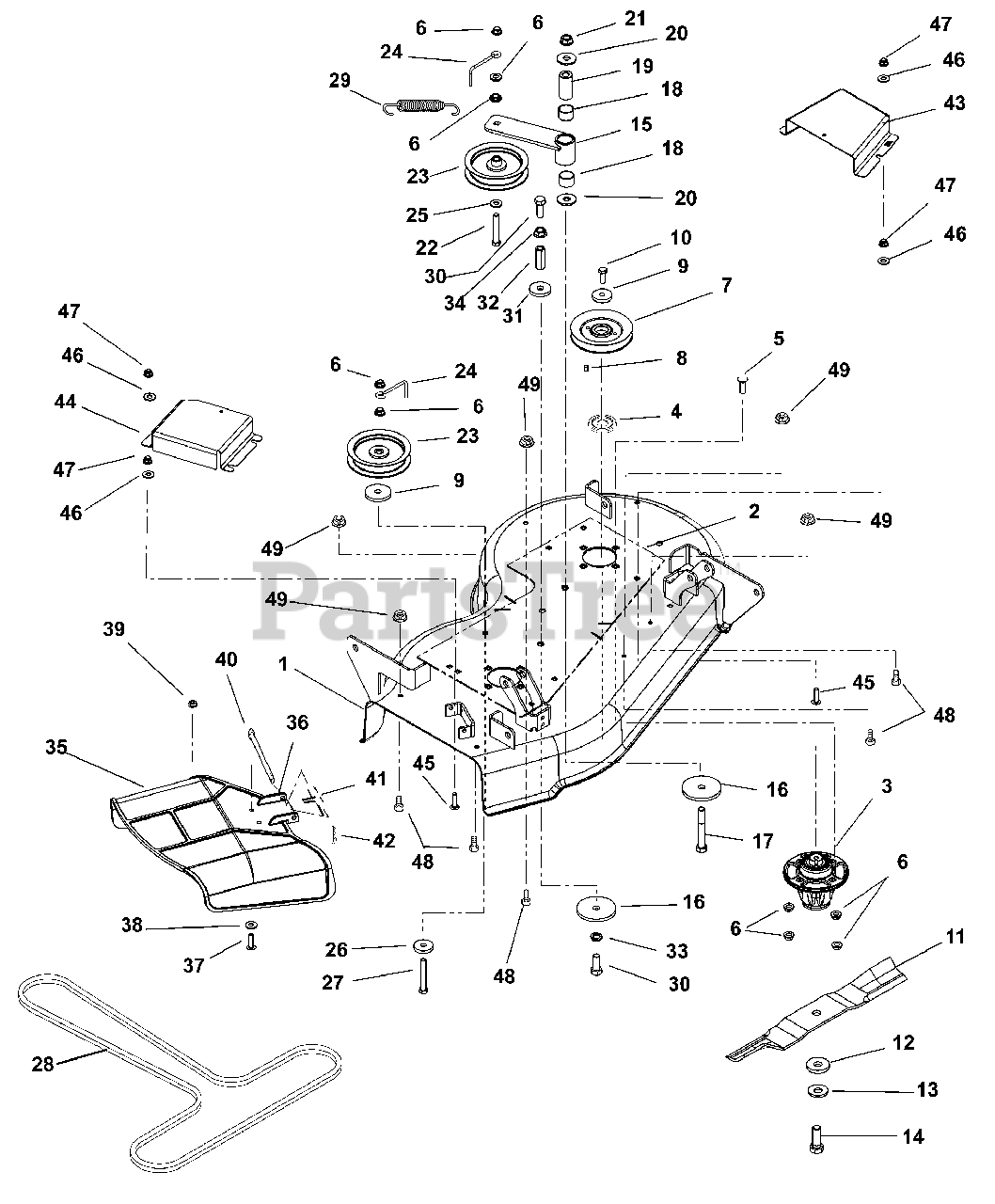

34" Deck, Belts, Idlers, Blades Parts Diagram

  • Title

1

Gravely 00609851

34" Deck, Stamped
(Superseded to 51529800)

$526.99

$

Usually ships in 4-12 days

0

2

Gravely 00619851

Doubler Plate, 34" Deck

$111.99

$

Usually ships in 4-12 days

0

3

Gravely 61543800

Spindle Assembly
(Superseded to 51510000)

$233.99

$

In Stock, Qty 20+

0

4

Gravely 00587400

Dust Cap

$8.49

$

In Stock, Qty 8

0

5

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 01610300

Sheave, 4.75 Diameter A-Section
(Superseded to 07330267)

$53.99

$

In Stock, Qty 20+

0

8

Gravely 06611100

Key, Square .25 x .38 x

$1.49

$

In Stock, Qty 7

0

9

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 00651800

Blade, 17.5 x 2.25 x .197

$26.99

$

In Stock, Qty 8

0

12

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$5.49

$

In Stock, Qty 20+

0

14

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 00652600

Idler Arm

$47.99

$

In Stock, Qty 5

0

16

Gravely 06445000

Washer, Flat-Steel .515 x 1.625 x .250 YZ

$6.49

$

In Stock, Qty 20+

0

17

Gravely 05965800

Bolt-Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$5.49

$

In Stock, Qty 11

0

18

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.99

$

In Stock, Qty 20+

0

19

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03 Promaster

$6.99

$

In Stock, Qty 20+

0

20

Gravely 06436400

Washer, Flat-Steel .511 x 1.441 x .125
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

21

Gravely 06543600

Nut, Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 07300006

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

24

Gravely 00391900

Belt Finger

$21.99

$

In Stock, Qty 9

0

25

Gravely 05515800

Bushing, Flange .406 x .88 x .270 x .140

$9.99

$

In Stock, Qty 6

0

26

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

27

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

28

Gravely 07200116

Belt, HA 98.75 Wrapped

$66.99

$

In Stock, Qty 11

0

29

Gravely 08300020

Extension Spring

$26.99

$

In Stock, Qty 20+

0

30

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, Qty 9

0

31

Gravely 06445000

Washer, Flat-Steel .515 x 1.625 x .250 YZ

$6.49

$

In Stock, Qty 20+

0

32

Gravely 06500013

Nut, Coupling .50-13 x 1.75

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06307300

Washer-Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 6

0

34

Gravely 06543300

Nut, Spin Lock-Flange .50-13
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 00499900

Molded Chute, Zoom
(Superseded to 03994300)

$58.99

$

In Stock, Qty 8

0

36

Gravely 00662651

Chute Reinforcement

$23.99

$

In Stock, only 2 left!

0

37

Gravely 05920900

Screw, Socket Head .31-18 x .75 Button Head

$4.99

$

In Stock, Qty 10

0

38

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06800002

Clevis Pin, 5/16 x 4.0

$9.99

$

In Stock, Qty 11

0

41

Gravely 01258100

Spring, Torsion

$9.99

$

In Stock, only 3 left!

0

42

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 00655851

Belt Cover, 34" Left

$

$

Not available
