915099 (ZT 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) 34" Deck, Belts, Idlers, Blades Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

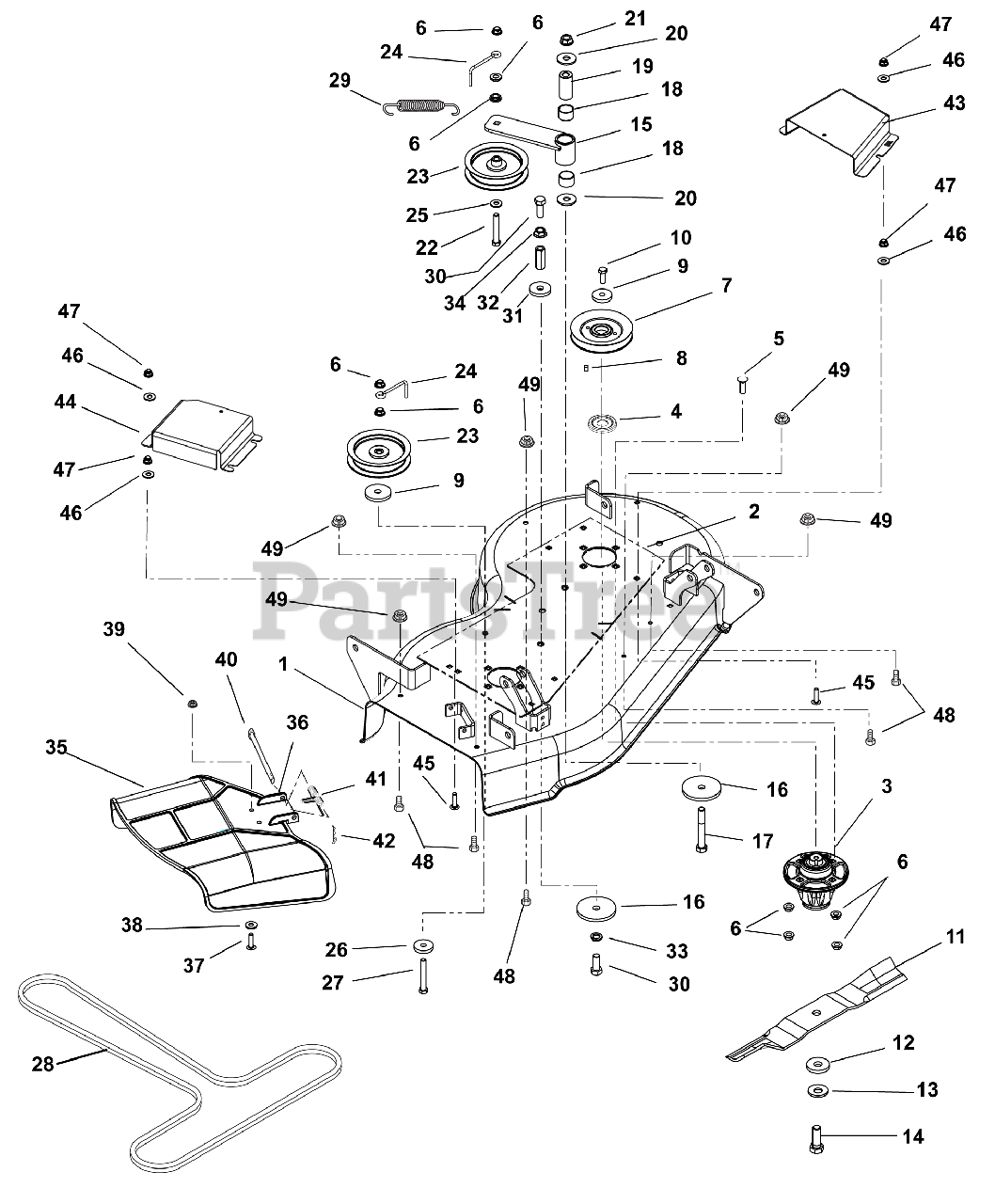

34" Deck, Belts, Idlers, Blades Parts Diagram

  • Title

1

Gravely 00609851

34" DECK, STAMPED
(Superseded to 51529800)

$622.99

$

Usually ships in 4-12 days

0

2

Gravely 00619851

DOUBLER PLATE, 34" DECK

$116.99

$

Usually ships in 4-12 days

0

3

Gravely 61543800

SPINDLE ASSEMBLY
(Superseded to 51510000)

$243.99

$

In Stock, Qty 20+

0

4

Gravely 00587400

DUST CAP

$9.49

$

In Stock, Qty 12

0

5

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

$55.99

$

In Stock, Qty 14

0

8

Gravely 06611100

KEY, SQ .25 X .38 X .25

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$5.49

$

In Stock, Qty 20+

0

10

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 00651800

BLADE, 17.38X2.5X.204

$27.99

$

Usually ships in 4-12 days

0

12

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$5.49

$

In Stock, Qty 20+

0

13

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

14

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 00652600

WELDMENT, IDLER ARM

$50.99

$

In Stock, only 2 left!

0

16

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.99

$

In Stock, Qty 17

0

17

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$6.49

$

In Stock, only 3 left!

0

18

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$11.99

$

In Stock, Qty 20+

0

19

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$7.49

$

In Stock, Qty 20+

0

20

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$54.99

$

In Stock, Qty 20+

0

24

Gravely 00391900

BELT FINGER

$21.99

$

In Stock, Qty 6

0

25

Gravely 05515800

BSHG-FLG .406X.88X.270X.140

$10.99

$

In Stock, Qty 9

0

26

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

27

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

28

Gravely 07200116

V-BELT, HA-WRAPPED

$69.99

$

In Stock, Qty 13

0

29

Gravely 08300020

EXTENSION SPRING

$29.99

$

In Stock, Qty 14

0

30

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.99

$

In Stock, only 2 left!

0

31

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.99

$

In Stock, Qty 17

0

32

Gravely 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$4.99

$

In Stock, only 2 left!

0

33

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$5.49

$

Usually ships in 4-12 days

0

35

Gravely 00499900

MOLDED CHUTE, ZOOM
(Superseded to 03994300)

$60.99

$

In Stock, Qty 7

0

36

Gravely 00662651

CHUTE REINFORCEMENT

$23.99

$

In Stock, only 2 left!

0

37

Gravely 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$5.49

$

In Stock, Qty 10

0

38

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

39

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 06800002

PIN, 5/16 X 3.88"

$10.99

$

In Stock, only 2 left!

0

41

Gravely 01258100

SPRING, TORSION

$10.99

$

In Stock, Qty 6

0

42

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.99

$

In Stock, Qty 20+

0

43

Gravely 00655851

BELT COVER, 34" LEFT

$

$

Not available

44

Gravely 00655951

BELT COVER, 34" RIGHT

$28.99

$

Usually ships in 4-12 days

0

45

Gravely 06200008

BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$2.99

$

In Stock, Qty 7

0

46

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

47

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

48

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

49

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0
