915099 (ZT 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Fuel Tanks Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

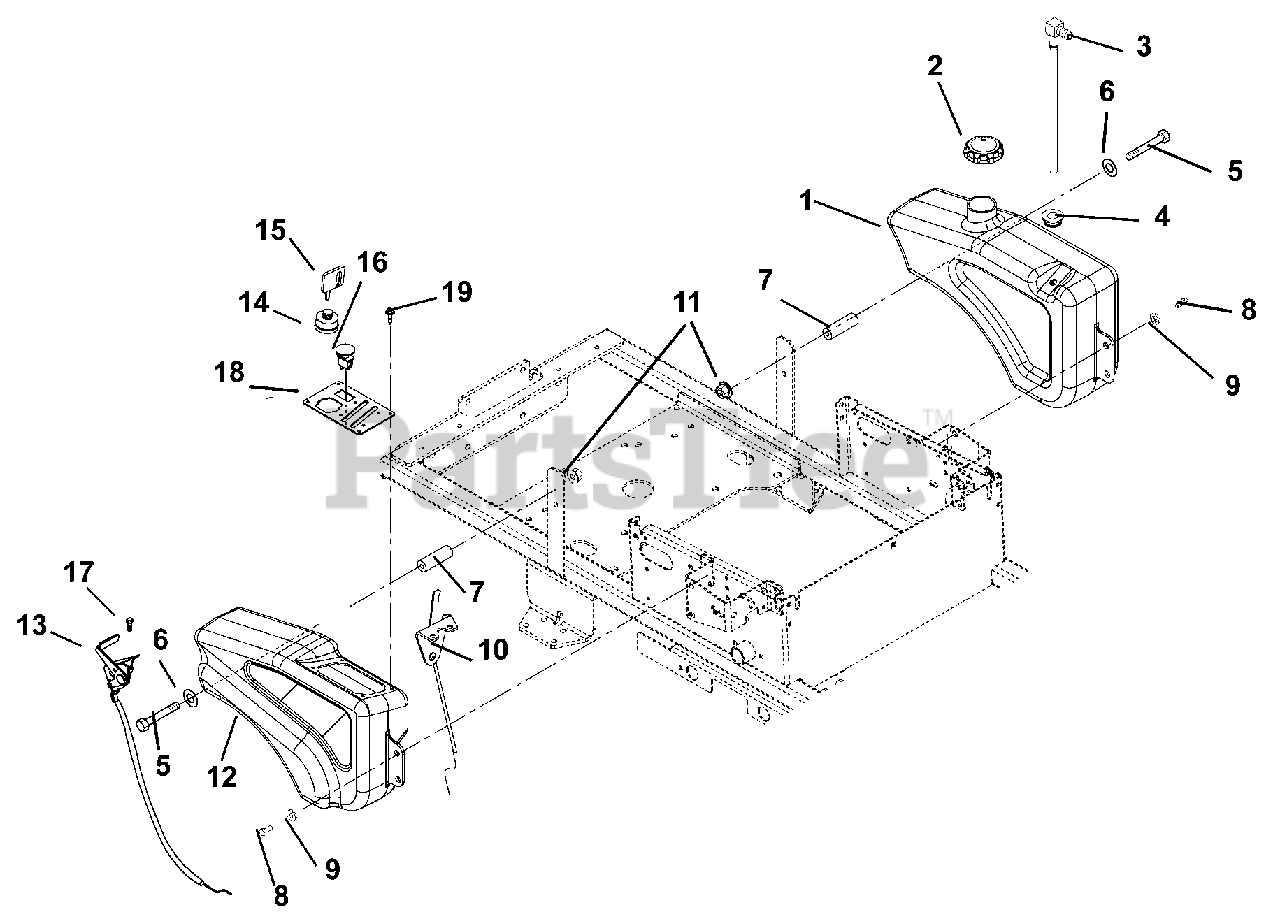

Fuel Tanks Parts Diagram

  • Title

1

Gravely 00479500

Gas Tank

$

$

Not available

2

Gravely 01538400

Fuel Cap

$16.99

$

In Stock, Qty 14

0

3

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

4

Gravely 07511400

Bushing, Flange .375 x 1.062 x .625

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05948000

Bolt, Hex .31-18 x 3.50 Grade 5

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 00480900

Spacer, Tank Mount

$21.99

$

In Stock, only 1 left!

0

8

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, Qty 20+

0

10

Gravely 00605100

Cable, Choke Cable (094, 096)

Note: (094, 096)

$41.99

$

Usually ships in 4-12 days

0

Gravely 00619600

Throttle/Choke Cable, 40"(098, 099)

Note: (098, 099)

$65.99

$

In Stock, only 2 left!

0

11

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 00479600

Fender

$

$

Not available

13

Gravely 00605000

Cable, Throttle (094, 096)
(Superseded to 00581700)

Note: (094, 096)

$59.99

$

In Stock, only 2 left!

0

14

Gravely 01588300

Key Switch

$33.99

$

In Stock, Qty 20+

0

15

Gravely 02460700

Key, w/cap

$10.99

$

In Stock, Qty 20+

0

16

Gravely 01545600

Switch, Clutch

$27.99

$

In Stock, Qty 20+

0

17

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head (094, 096)
(Superseded to 07400130)

Note: (094, 096)

$2.49

$

In Stock, Qty 5

0

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head Thread Rolling (098, 099)
(Superseded to 07400130)

Note: (098, 099)

$2.49

$

In Stock, Qty 5

0

18

Gravely 00479351

Control Panel (094, 096)

Note: (094, 096)

$

$

Not available

Gravely 00603651

Control Panel (098, 099)

Note: (098, 099)

$

$

Not available

19

Gravely 06830000

Rivet, Plastic .195 Diameter

$2.49

$

In Stock, Qty 20+

0
