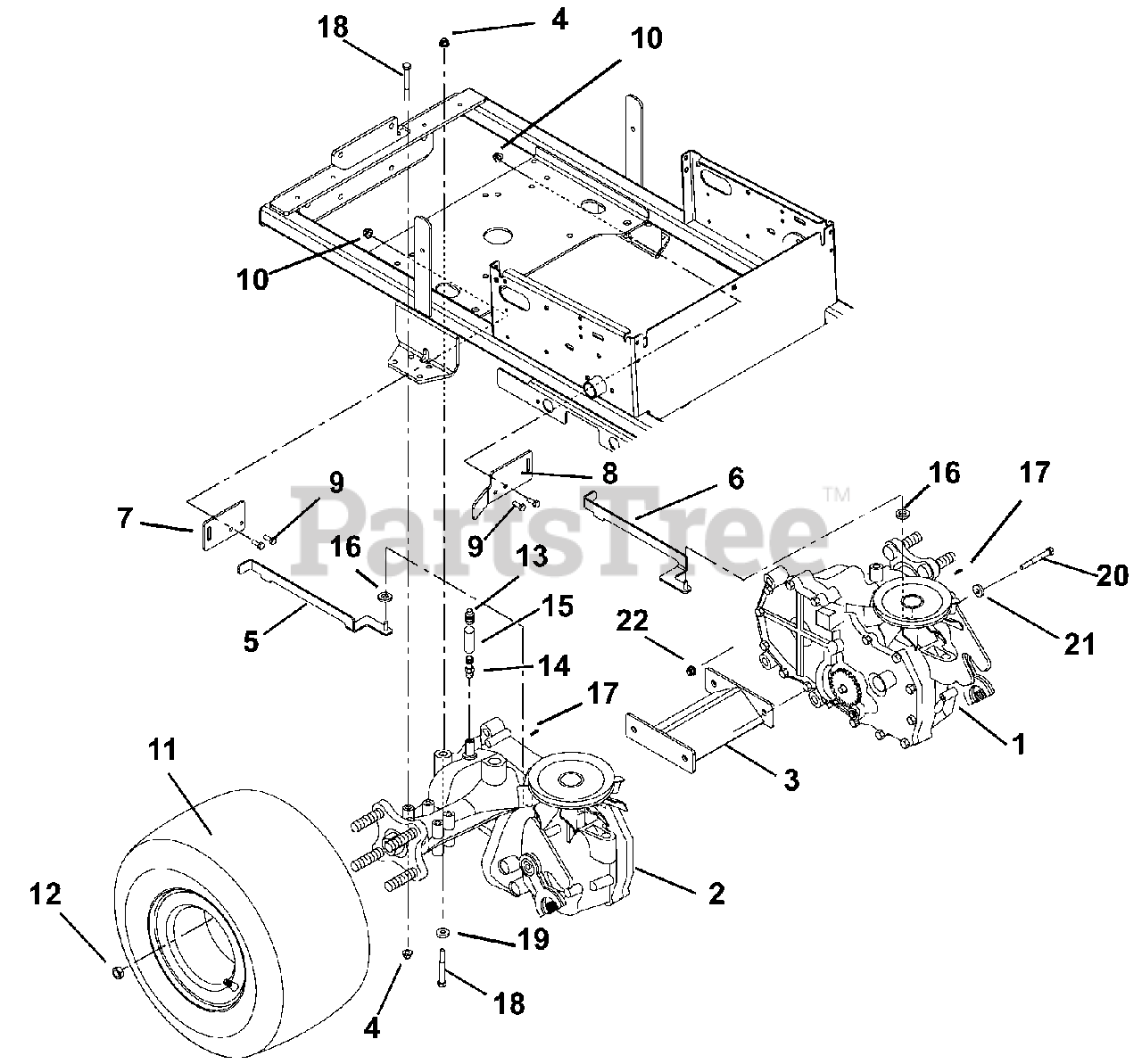

915099 (ZT 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Transaxles, Dump Valves Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

Transaxles, Dump Valves Parts Diagram

  • Title

1

Gravely 00498100

EZT, Left Hand Transaxle-Hydrogear (For service please contact Hydro-Gear) (094, 096, 098)

Note: (For service please contact Hydro-Gear) (094, 096, 098)

$1034.99

$

Usually ships in 4-12 days

0

Gravely 00689100

EZT, Left Hand Transaxle-Hydrogear (For service please contact Hydro-Gear) (099)

Note: (For service please contact Hydro-Gear) (099)

$1228.99

$

Usually ships in 4-12 days

0

2

Gravely 00498200

EZT, Right Hand Transaxle-Hydrogear (For service please contact Hydro-Gear) (094, 096, 098)

Note: (For service please contact Hydro-Gear) (094, 096, 098)

$1034.99

$

Usually ships in 4-12 days

0

Gravely 00689200

EZT, Right Hand Transaxle-Hydrogear (For service please contact Hydro-Gear) (099)

Note: (For service please contact Hydro-Gear) (099)

$1228.99

$

Usually ships in 4-12 days

0

3

Gravely 00604151

Weldment, Transaxle Support

$93.99

$

Usually ships in 4-12 days

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 00580700

Weldment, Dump Valve (RH)

Note: (RH)

$

$

Not available

6

Gravely 00580800

Weldment, Dump Valve (LH)

Note: (LH)

$

$

Not available

7

Gravely 00582051

Bracket, Dump Valve

$

$

Not available

8

Gravely 00581951

Bracket, Dump Valve/Clutch Stop (094, 096)

Note: (094, 096)

$43.99

$

Usually ships in 4-12 days

0

Gravely 00617651

Clutch Stop (098, 099)

Note: (098, 099)

$

$

Not available

9

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

10

Gravely 06535000

Nut, Locking Nylon .250-20
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07100233

Assembly, Tire 18 x 8.5-8 (094, 096)

Note: (094, 096)

$174.99

$

In Stock, only 2 left!

0

Gravely 07100123

Assembly, Tire Wheel 18 x 8.5-8 CTR (098)

Note: (098)

$128.99

$

Usually ships in 4-12 days

0

Gravely 07100310

Assembly, Tire/Wheel 18 x 6.5-8 CTR (099)

Note: (099)

$116.99

$

Usually ships in 4-12 days

0

12

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07026400

Cap, Vent .50

$17.99

$

In Stock, only 2 left!

0

14

Gravely 07026300

Fitting, Straight .50

$26.99

$

In Stock, only 2 left!

0

15

Gravely 01543100

Hose, Vent

$9.99

$

In Stock, only 2 left!

0

16

Gravely 06439500

Washer-Flat-Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 06701900

Pin-Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

18

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.99

$

In Stock, only 2 left!

0

19

Gravely 06439100

Washer, Flat Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0
