915104 (ZT 2250) - Gravely 50" Zero-Turn Mower, 22hp Kohler (SN: 000101 & Above) Electrical System Parts Diagram

50" Zero-Turn Mower, 22hp Kohler

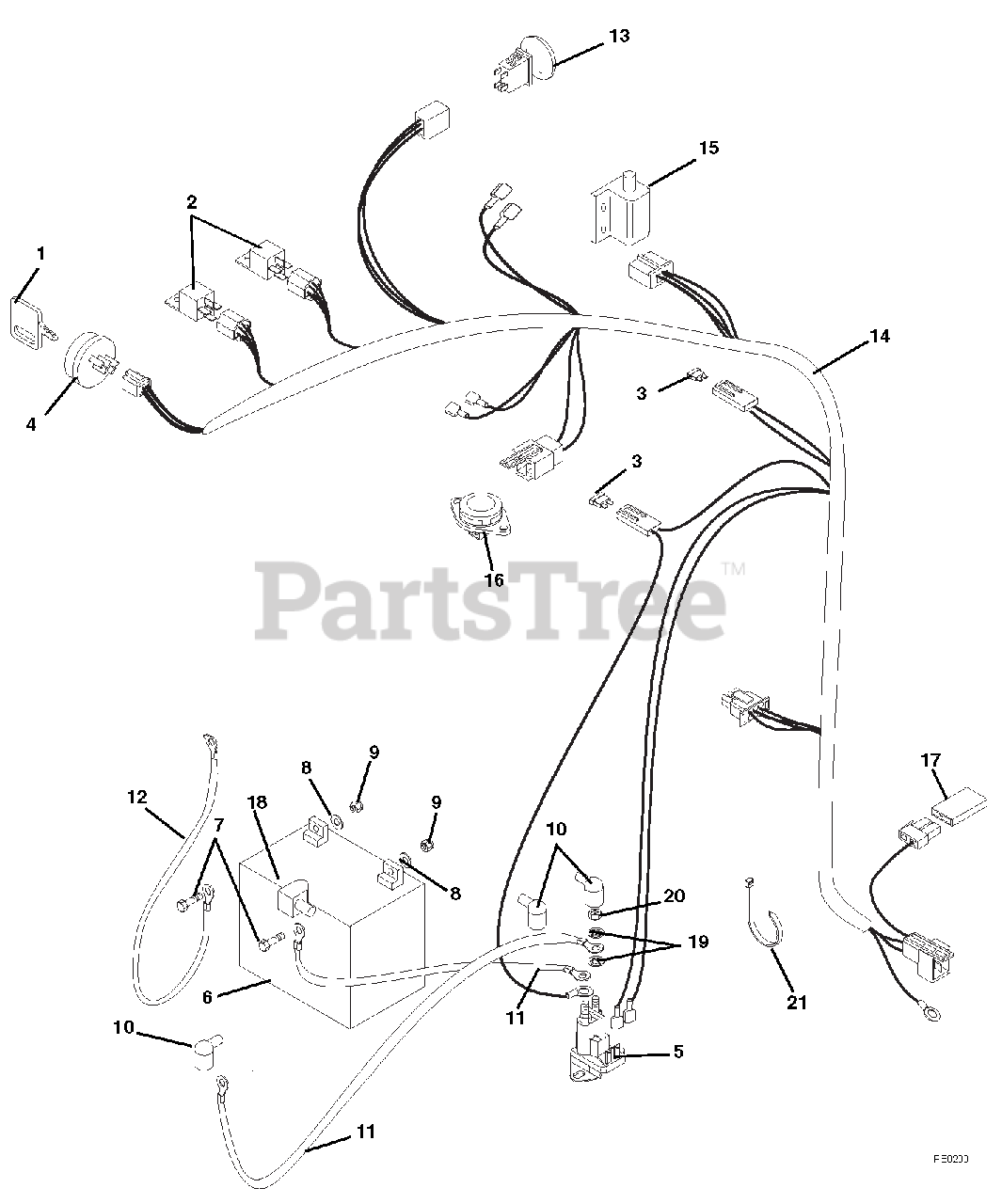

Electrical System Parts Diagram

  • Title

1

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Gravely 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

4

Gravely 01588300

KEY SWITCH

$33.99

$

In Stock, Qty 20+

0

5

Gravely 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

6

Battery, Exide Sealed Maintenance Free U1-250 (Purchase replacement locally)

Note: (Purchase replacement locally)

$

$

Not available

7

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

8

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0

11

Gravely 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$23.99

$

In Stock, only 3 left!

0

12

Gravely 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$23.99

$

Usually ships in 4-12 days

0

13

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

14

Gravely 00347900

WIRE HARNESS
(Superseded to 00347901)

$170.99

$

In Stock, only 1 left!

0

15

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

16

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 20+

0

17

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

18

Gravely 07505700

INSULATOR

$10.99

$

In Stock, only 2 left!

0

19

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

20

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

21

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0
