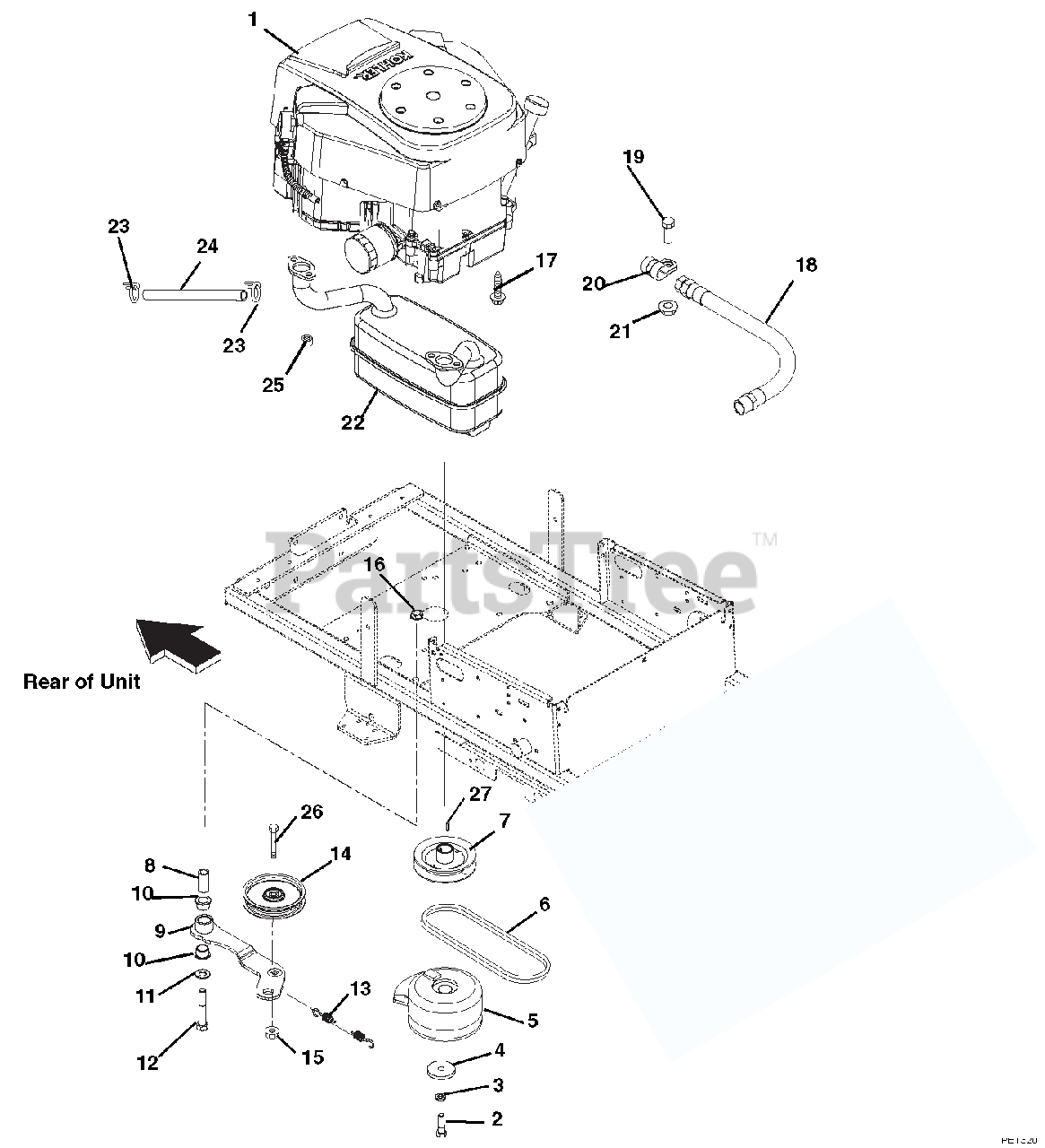

915104 (ZT 2250) - Gravely 50" Zero-Turn Mower, 22hp Kohler (SN: 000101 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

50" Zero-Turn Mower, 22hp Kohler

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 08200401

ENGINE, 20 HP SINGLE KOHLER

Note: (102)

$

$

Not available

Gravely 08200404

ENGINE, 17 HP KOHLER SINGLE

Note: (100)

$

$

Not available

Gravely 08200315

ENGINE, 22 KOLHER COURAGE

Note: (104)

$

$

Not available

Gravely 08200117

ENG, 23HP COURAGE TWIN W/GUARD

Note: (132)

$

$

Not available

2

Gravely 05900026

7/16-20X3 HHCS GR8 YWZC

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

5

Gravely 00480600

CLUTCH, ELECTRIC

Note: (104, 132)

$395.99

$

In Stock, only 1 left!

0

Gravely 03292300

CLUTCH, ALUM RMS ELECTRIC

Note: (100, 102)

$382.99

$

Usually ships in 4-12 days

0

6

Gravely 07237900

V-BELT, HA-WRAPPED

$51.99

$

In Stock, Qty 8

0

7

Gravely 07300430

PLY-V 3.75X1.0 A SECTION W/KEY

$105.99

$

Usually ships in 4-12 days

0

8

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 6

0

9

Gravely 00604000

WMT, IDLER

$105.99

$

Usually ships in 4-12 days

0

10

Gravely 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.99

$

In Stock, Qty 20+

0

11

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

14

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

15

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 00588700

HOSE, HYD .38-11-0K M6N0-F6J0

$51.99

$

Usually ships in 4-12 days

0

19

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$6.49

$

In Stock, only 2 left!

0

21

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 00391700

MUFFLER, TWIN KOHLER (EES)

Note: (132)

$148.99

$

In Stock, only 4 left!

0

Gravely 03373800

MUFFLER, KOHLER SINGLE

Note: (100, 102, 104)

$114.99

$

In Stock, Qty 5

0

23

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

24

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (100, 102, 104)

$1.49

$

In Stock, Qty 20+

0

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (132)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06500007

NUT, TOP LOCK FLG 8X1.25 YWZC

Note: (132)

$2.99

$

Usually ships in 4-12 days

0

Gravely 06500007

NUT, TOP LOCK FLG 8X1.25 YWZC

Note: (100, 102, 104)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

27

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

Note: (included with part #7)

$3.99

$

In Stock, Qty 13

0
