915104 (ZT 2250) - Gravely 50" Zero-Turn Mower, 22hp Kohler (SN: 000101 & Above) Frame, Footrest, Casters And Tires Parts Diagram

50" Zero-Turn Mower, 22hp Kohler

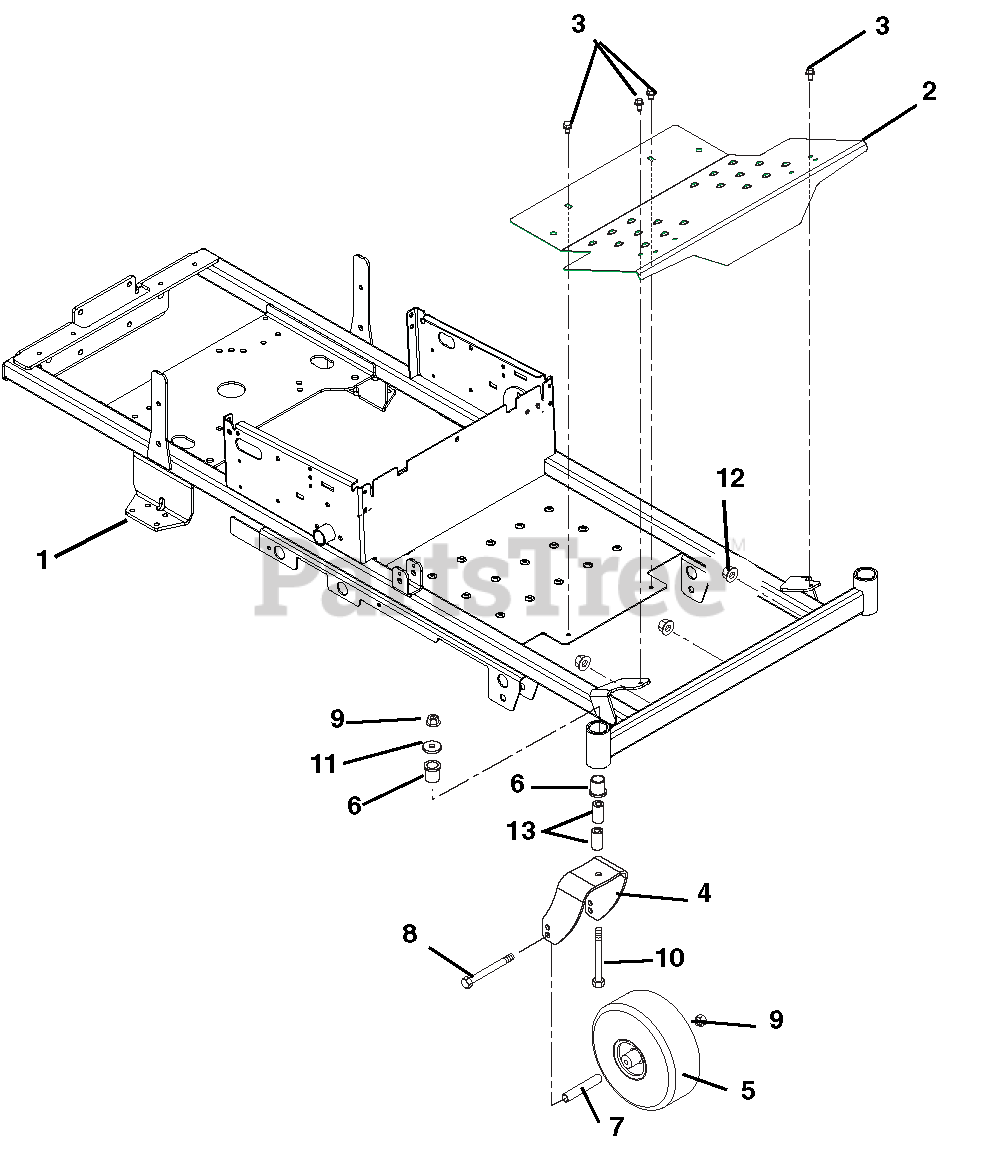

Frame, Footrest, Casters And Tires Parts Diagram

  • Title

1

Gravely 02987951

WMT, ZOOM FRAME

$

$

Not available

2

Gravely 00460553

FOOTREST, MZ

$

$

Not available

3

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00469351

FORK, CASTER- WELDED
(Superseded to 03368551)

$74.99

$

In Stock, Qty 6

0

5

Gravely 07100124

TIRE/WHEEL ASSY, 11X4-5

$83.99

$

In Stock, Qty 20+

0

6

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

7

Gravely 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

8

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

11

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06500019

NUT-LK-NYL-FLG .63-11 YWZC
(Superseded to 06500833)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$7.99

$

In Stock, Qty 20+

0
