915104 (ZT 2250) - Gravely 50" Zero-Turn Mower, 22hp Kohler (SN: 000101 & Above) Mower Deck Lift Parts Diagram

50" Zero-Turn Mower, 22hp Kohler

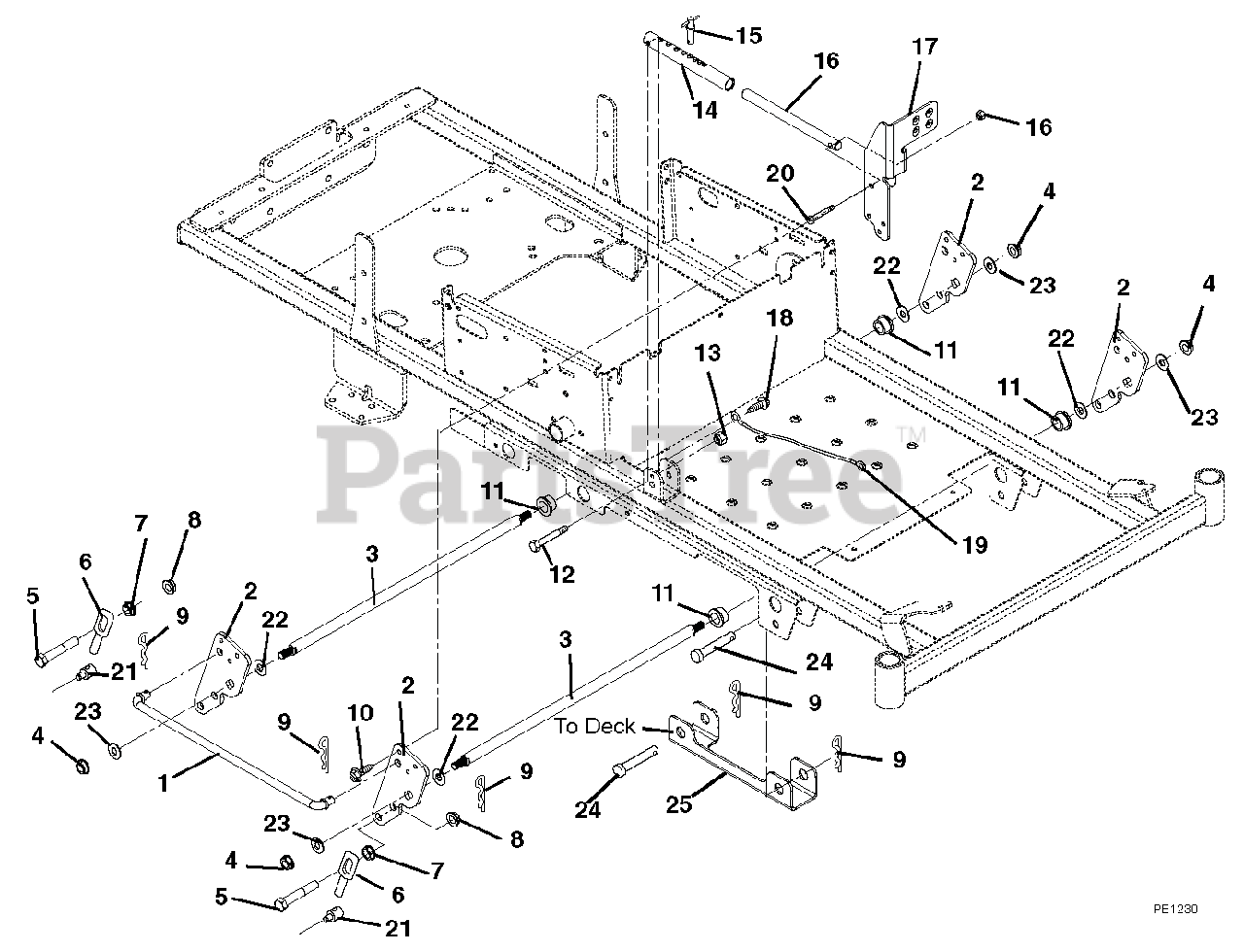

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 00279900

ROD,LIFT

$42.99

$

Usually ships in 4-12 days

0

2

Gravely 00279800

LIFT ARM

$40.99

$

Usually ships in 4-12 days

0

3

Gravely 00502600

SHAFT, LIFT

$

$

Not available

4

Gravely 06500400

NUT-HEX .250-28 YWZC

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00160000

DECK LINK
(Superseded to 03967600)

$40.99

$

In Stock, Qty 5

0

7

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

In Stock, Qty 5

0

12

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 00347800

TUBE,LIFT STOP

$

$

Not available

15

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 18

0

16

Gravely 00347700

ROD,LIFT

$46.99

$

Usually ships in 4-12 days

0

17

Gravely 00279551

PEDAL,FOOT LIFT

$21.99

$

Usually ships in 4-12 days

0

18

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06927100

CBL,HOOD

$15.99

$

In Stock, only 1 left!

0

20

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 01590400

TRUNNION-.50

$59.99

$

In Stock, only 3 left!

0

22

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

24

Gravely 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

In Stock, Qty 20+

0

25

Gravely 00484753

DRAG LINK, RED

$35.99

$

Usually ships in 4-12 days

0
