915104 (ZT 2250) - Gravely 50" Zero-Turn Mower, 22hp Kohler (SN: 000101 & Above) Parking Brake Parts Diagram

50" Zero-Turn Mower, 22hp Kohler

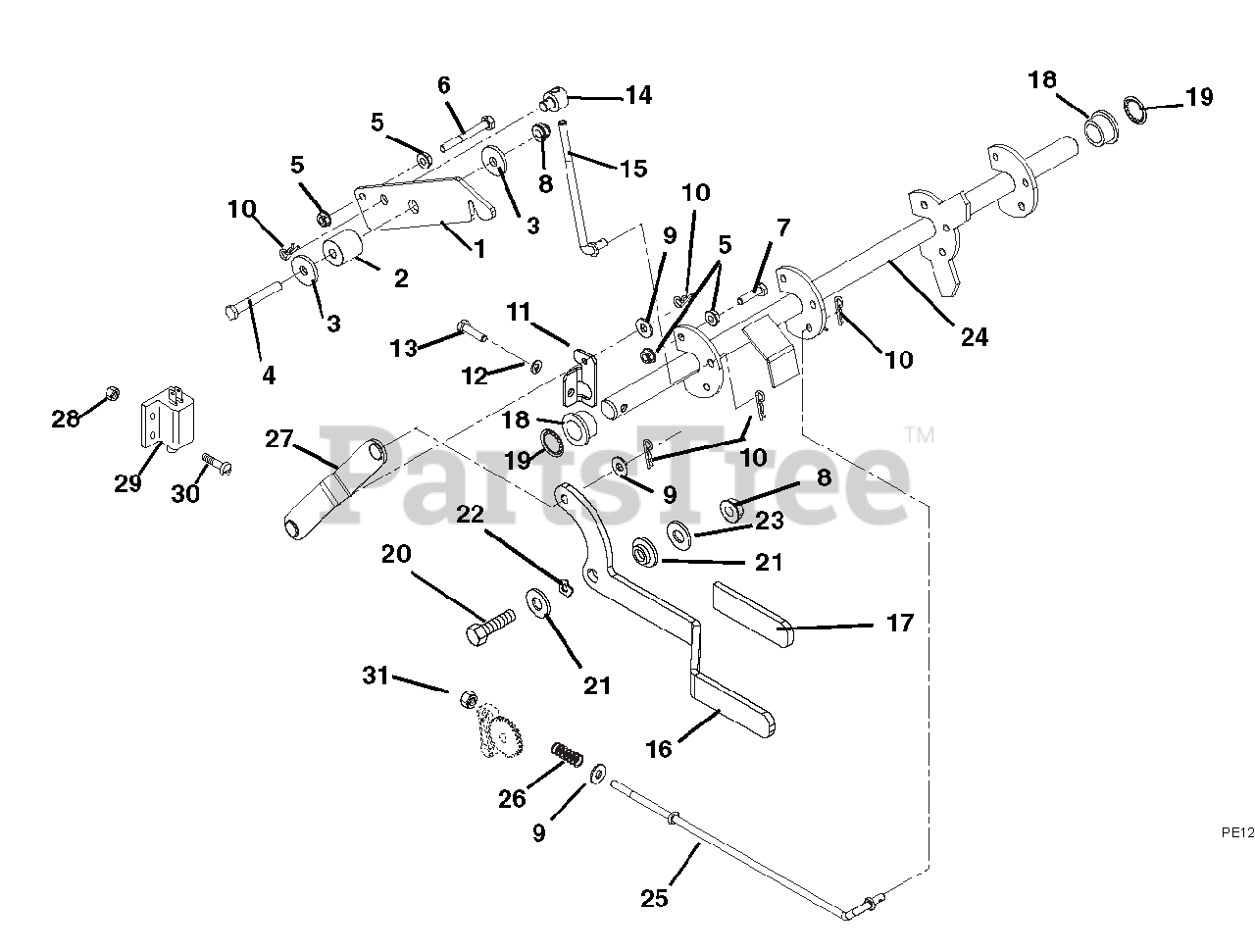

Parking Brake Parts Diagram

  • Title

1

Gravely 00476251

LATCH, NEUTRAL
(Superseded to 00476200)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 00476300

SPCR, FLG .32X.49X.192X1.00

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 18

0

4

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 12

0

5

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 7

0

6

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

8

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00872051

CRANK, PARKING BRAKE

$

$

Not available

12

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

13

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

14

Gravely 01596400

TRUNNION, BRAKE .31-18 UNC

$52.99

$

Usually ships in 4-12 days

0

15

Gravely 00349800

BRAKE LINK

$

$

Not available

16

Gravely 00672251

HANDLE, PARKING BRAKE

$

$

Not available

17

Gravely 07523000

GRIP,HANDLE

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

In Stock, Qty 5

0

19

Gravely 07000036

NUT, PUSH -.75" SHAFT

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

21

Gravely 05515400

BSHG-FLG .325X.501X.250X1.120

$3.99

$

In Stock, Qty 8

0

22

Gravely 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 11

0

23

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

24

Gravely 00477700

WELDMENT, BRAKE SHAFT

$131.99

$

Usually ships in 4-12 days

0

25

Gravely 00667200

ROD - BRAKE

$25.99

$

Usually ships in 4-12 days

0

26

Gravely 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$5.49

$

In Stock, Qty 20+

0

27

Gravely 00478000

WELDMENT, BRAKE LINK

$59.99

$

Usually ships in 4-12 days

0

28

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

30

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

31

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

32

Gravely 51517600

KIT, EZT BRAKE ARM

$29.99

$

Usually ships in 4-12 days

0
