915104 (ZT 2250) - Gravely 50" Zero-Turn Mower, 22hp Kohler (SN: 000101 & Above) Steering Controls Parts Diagram

50" Zero-Turn Mower, 22hp Kohler

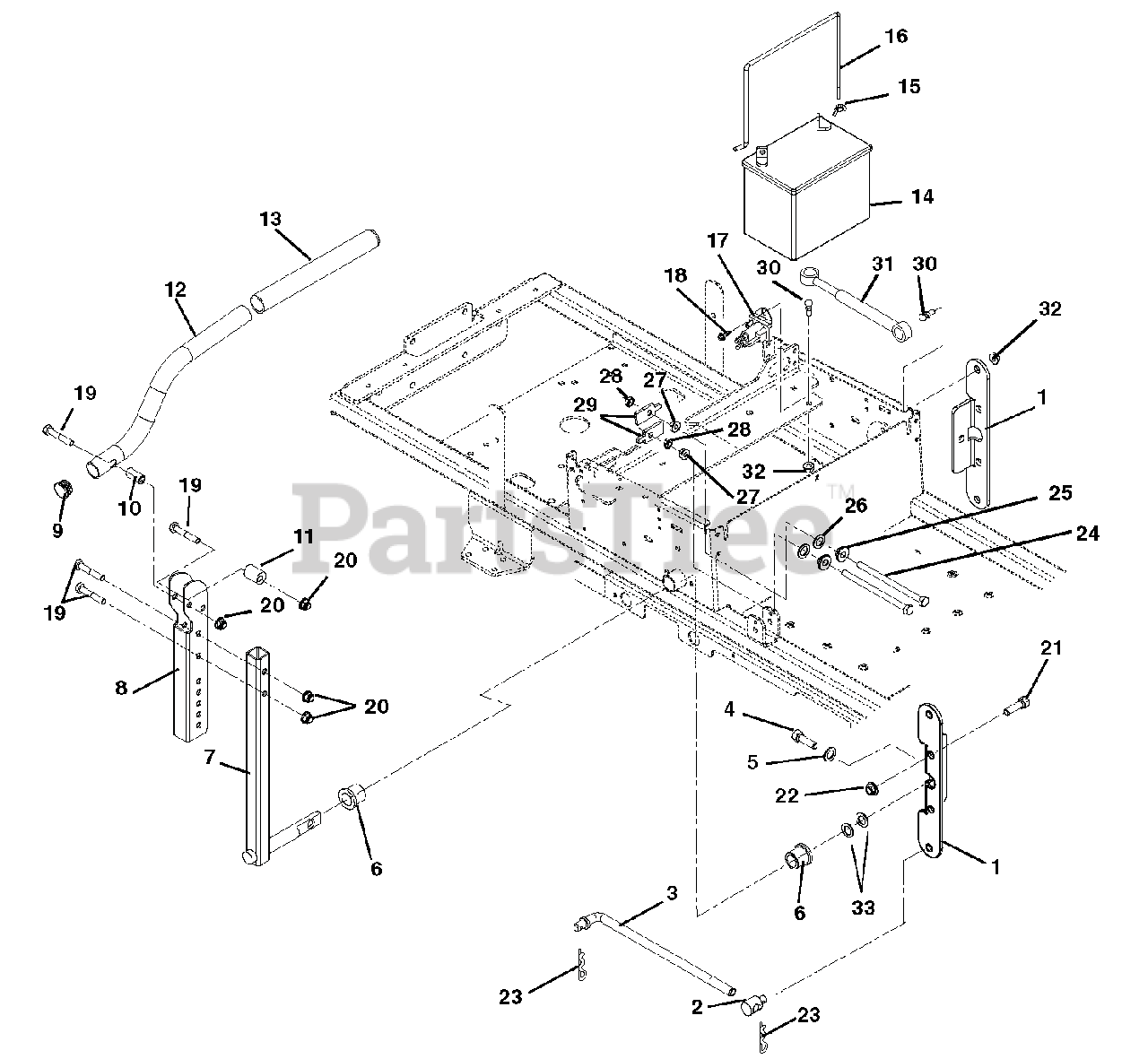

Steering Controls Parts Diagram

  • Title

1

Gravely 00667051

LINK, CONTROL
(Superseded to 03268451)

$

$

Not available

2

Gravely 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

3

Gravely 00292100

LINK,WIREFORM

$

$

Not available

4

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

6

Gravely 01591100

BUSHING-1"X.75"X1"

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 00477151

WELDMENT, CONTROL ARM

$

$

Not available

8

Gravely 00481751

CHANNEL, UPPER HANDLEBAR

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 07533300

CAPLUG, HANDLEBAR

$2.99

$

In Stock, only 1 left!

0

10

Gravely 00364900

BSHG, SPCR .330X.500X1.01 PM

$7.49

$

In Stock, Qty 10

0

11

Gravely 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, Qty 8

0

12

Gravely 00354951

HANDLE BAR

$

$

Not available

13

Gravely 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, only 2 left!

0

14

Battery, Exide Sealed Maintenance Free U1-250 (Purchase replacement locally)

Note: (Purchase replacement locally)

$

$

Not available

15

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

16

Gravely 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

18

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05900027

BLT-HEX,5/16-18X5 G2 HH YWZC

$

$

Not available

25

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

29

Gravely 00581600

STOP TAB

$10.99

$

Usually ships in 4-12 days

0

30

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

31

Gravely 09273400

DAMPER, CONTROL

$73.99

$

In Stock, Qty 19

0

32

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0
