915104 (ZT 2250) - Gravely 50" Zero-Turn Mower, 22hp Kohler (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

50" Zero-Turn Mower, 22hp Kohler

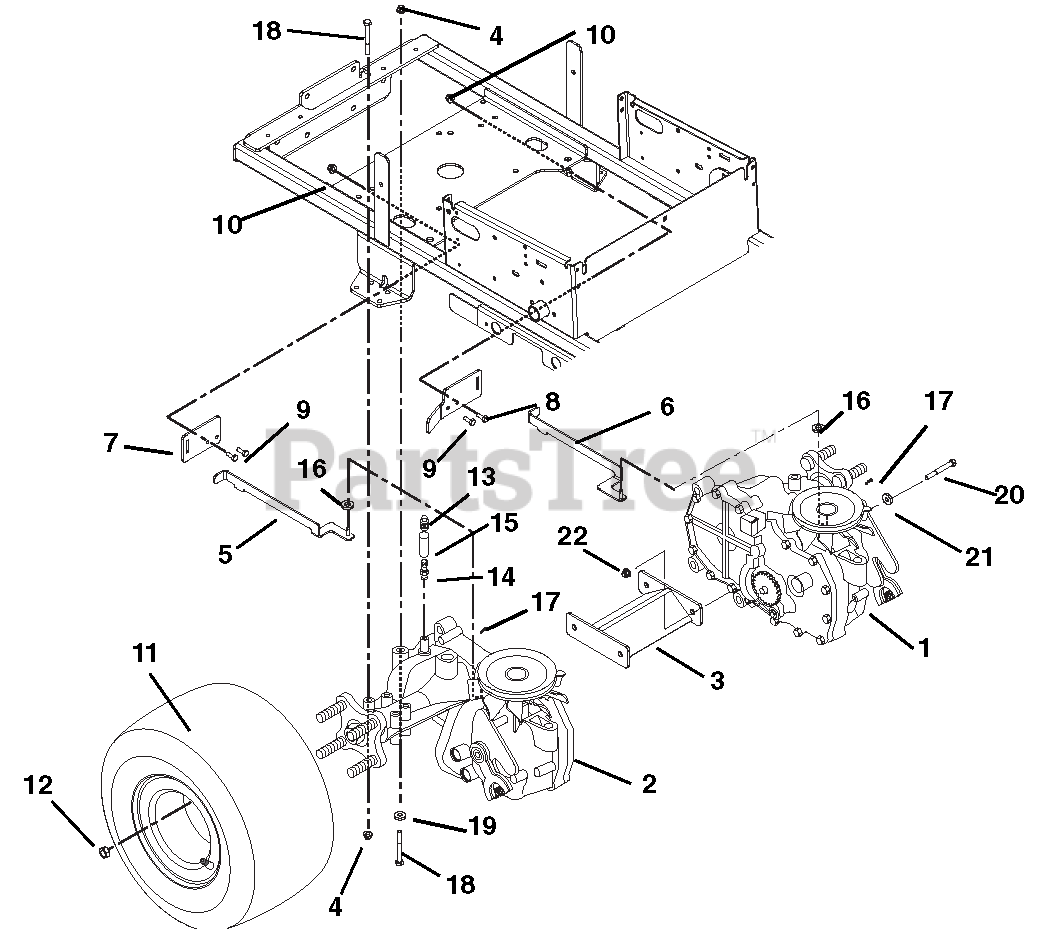

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 00498100

EZT, LH TRANSAXLE (ZOOM)

Note: (102, 104, 132)

$1034.99

$

Usually ships in 4-12 days

0

Gravely 00689100

EZT, LH TRANSAXLE (SHORT)

Note: (100)

$1228.99

$

Usually ships in 4-12 days

0

2

Gravely 00498200

EZT, RH TRANSAXLE (ZOOM)

Note: (102, 104, 132)

$1034.99

$

Usually ships in 4-12 days

0

Gravely 00689200

EZT, RH TRANSAXLE (SHORT)

Note: (100)

$1228.99

$

Usually ships in 4-12 days

0

3

Gravely 00604151

WMT, TRANSAXLE SUPPORT

$93.99

$

Usually ships in 4-12 days

0

4

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 00580700

WMT, DUMP VALVE (ZOOM-RH)

Note: (RH)

$

$

Not available

6

Gravely 00580800

WMT, DUMP VALVE (ZOOM-LH)

Note: (LH)

$

$

Not available

7

Gravely 00582051

BRACKET, DUMP VALVE

$

$

Not available

8

Gravely 00581951

BRKT,DUMP VALVE/CLUTCH STOP

Note: (104, 132)

$43.99

$

Usually ships in 4-12 days

0

Gravely 00617651

CLUTCH STOP

Note: (100, 102)

$

$

Not available

9

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

10

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07100123

TIRE/WHEEL ASSY, 18X8.50-8 CTR

Note: (102, 104, 132)

$128.99

$

Usually ships in 4-12 days

0

Gravely 07100310

TIRE/WHEEL ASSY, 18X6.5-8 CTR

Note: (100)

$116.99

$

In Stock, only 2 left!

0

12

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07026400

CAP-VENT .50

$17.99

$

In Stock, only 2 left!

0

14

Gravely 07026300

FTG-STR .50 O-RING

$26.99

$

In Stock, only 2 left!

0

15

Gravely 01543100

HOSE - VENT

$9.99

$

In Stock, only 2 left!

0

16

Gravely 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

18

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0

19

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0
