915108 (ZT XL 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler (SN: 000101 & Above) Fuel Tank Parts Diagram

34" Zero-Turn Mower, 17hp Kohler

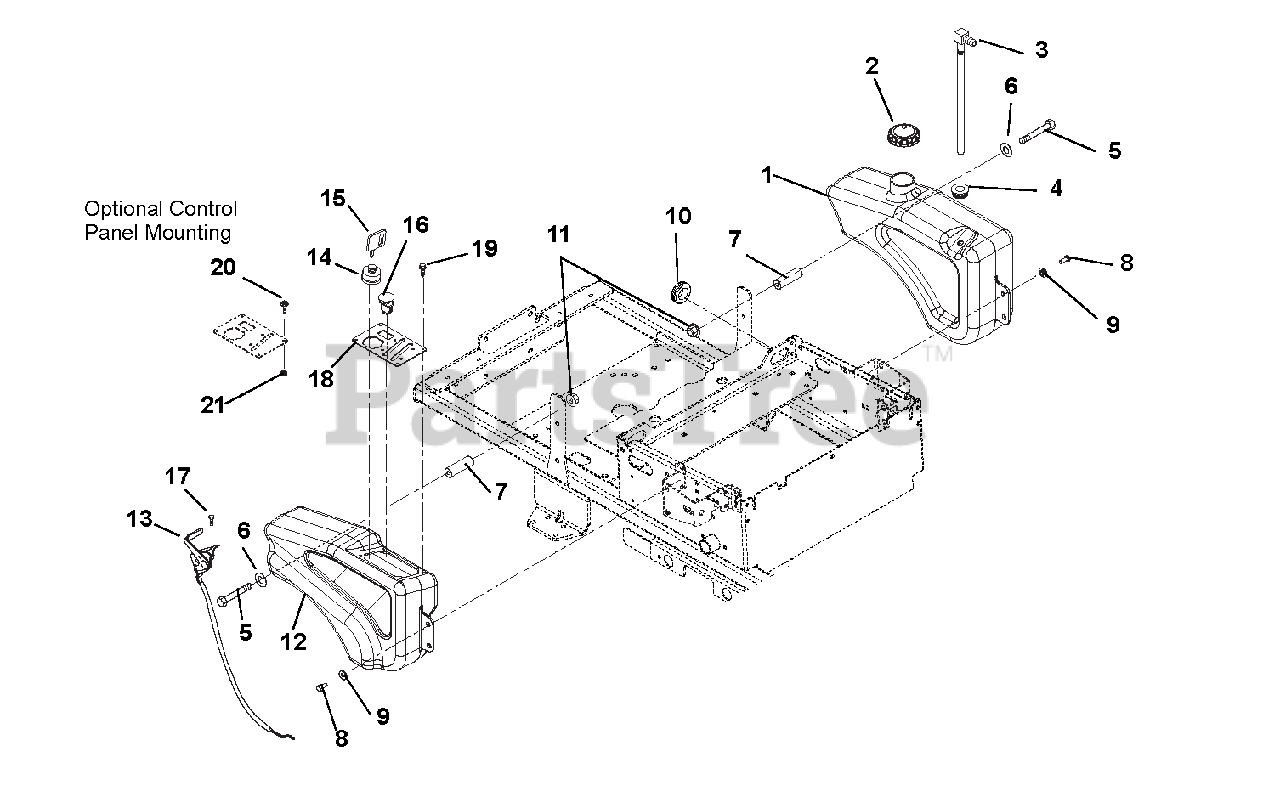

Fuel Tank Parts Diagram

  • Title

1

Gravely 00479500

GAS TANK, ZOOM

$

$

Not available

2

Gravely 01538400

FUEL CAP

$16.99

$

In Stock, Qty 19

0

3

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

4

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$2.99

$

In Stock, only 2 left!

0

6

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 00480900

SPCR, FLG .32X.49X.15X2.64

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 12

0

9

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

10

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 00479600

FENDER, ZOOM

$

$

Not available

13

Gravely 00619600

THROTTLE/CHOKE CABLE

$65.99

$

In Stock, Qty 5

0

14

Gravely 01588300

KEY SWITCH

$33.99

$

In Stock, Qty 20+

0

15

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

16

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

17

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 00603651

CONTROL PANEL

$

$

Not available

19

Gravely 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06226900

BLT-RDHDSQNK .38-16X2.50 G5BZ
(Superseded to 06224400)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
