915108 (ZT XL 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler (SN: 000101 & Above) Mower Deck, Belt, Idlers and Blades Parts Diagram

34" Zero-Turn Mower, 17hp Kohler

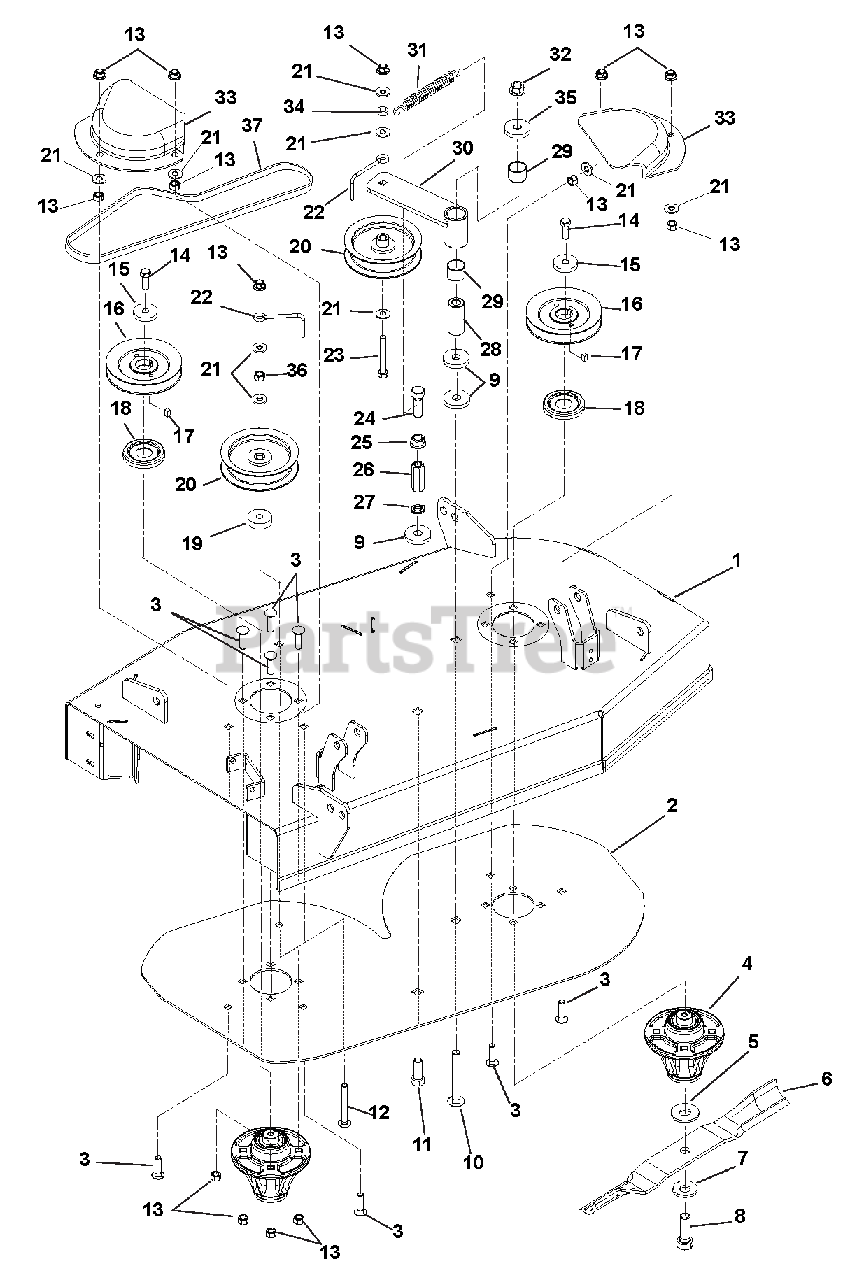

Mower Deck, Belt, Idlers and Blades Parts Diagram

  • Title

1

Gravely 00827653

WMT, 34" ZTXL DECK
(Superseded to 51529900)

$

$

Not available

2

Gravely 00865553

PLATE, 34" ZTXL DOUBLER

$

$

Not available

3

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 61543800

SPINDLE ASSEMBLY
(Superseded to 51510000)

$233.99

$

In Stock, Qty 20+

0

5

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 13

0

6

Gravely 08861600

BLADE

$23.99

$

In Stock, Qty 20+

0

7

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

8

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

10

Gravely 06225000

BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 20+

0

11

Gravely 06224700

BLT-RDHDSQNK .50-13X1.25 G5YZ
(Superseded to 06200325)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

$53.99

$

In Stock, Qty 17

0

17

Gravely 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00587400

DUST CAP

$8.49

$

In Stock, Qty 12

0

19

Gravely 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, Qty 15

0

20

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

21

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 00391900

BELT FINGER

$21.99

$

In Stock, Qty 8

0

23

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

24

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

25

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

29

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

30

Gravely 00652600

WELDMENT, IDLER ARM

$47.99

$

In Stock, only 2 left!

0

31

Gravely 08300020

EXTENSION SPRING

$26.99

$

In Stock, Qty 16

0

32

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 00387800

BELT COVER

$44.99

$

In Stock, only 2 left!

0

34

Gravely 05508900

BSHG-SLV .377X.624X.235

$9.99

$

In Stock, only 2 left!

0

35

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

36

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07200015

V-BELT, HA-WRAPPED

$74.99

$

In Stock, only 4 left!

0
